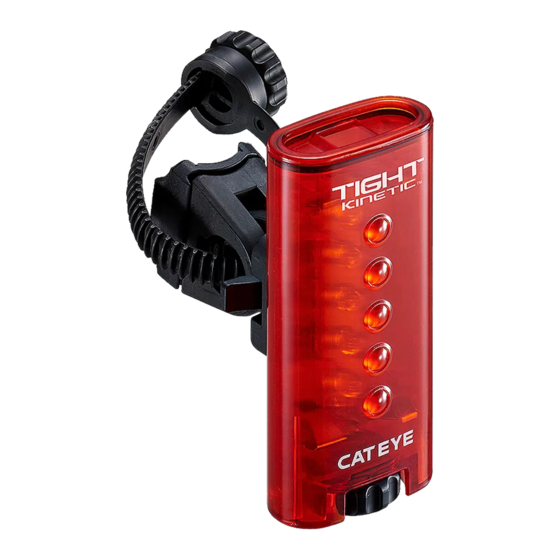

Cateye TIGHT KINETIC TL-LD180K Manual

Manual
Before using the light, read this
manual thoroughly and keep it
for future reference.
Design Pat. Pending
Copyright© 2020 CATEYE Co., Ltd.
1
TLLD180K-200710
Light unit AAA alkaline batteries
FlexTight™ bracket (SP-11)
WARNING!!!
To prevent accidents and to ensure safe riding,
make sure the light is securely attached to the
bracket and it is functioning properly before the
ride.
CAUTION!
• This light detects deceleration through the use of
acceleration sensor. Please note that activation
of the Kinetic function depends on the degree of
deceleration, the light may not react or the
reaction may be delayed.
• Stop your bicycle to operate the switch.
• This device is rated IPX7 based on JIS C0920.
Do not use the product while immersed in water.
Doing so may cause a malfunction. Wipe off any
moisture after use.
• If the light unit or parts become dirty with mud,
etc., clean with a soft cloth which is moistened
with mild soap. Never apply paint thinner,
benzine or alcohol; damage will result.
1

HOW TO INSTALL BATTERY

ENG
TL-LD180K
Dial
Packing
(Rubber seal)
+
Body
Packing
(x2)
(Rubber seal)
2

SWITCH OPERATION

OFF
Switch
3

HOW TO MOUNT

Seat post/stay
Mounting diameter
ø
12 – 32 mm
Mounting Mounting
4
Click
Removing
6
Press and hold
Caution!:
1
Do not drop!
3
AAA batteries × 2
-
+
-
2
ON
Constant
Press and hold
(Low)
Flashing
Click
Rapid
* When turning the light on, it lights up in the mode that was used last
time. (Mode memory function)
1
3
Strap
5
90˚
Release button
Slide
1. Rotate the dial and pull out the body from the
1 2
lens as shown.
* Be sure to securely hold the unit while
operating. If dropped accidentally, unexpected
damage may occur.
2. Insert the batteries according to the orientation
marked on the body.
3. Reattach the lens in the reverse order.
CAUTION!
• Do not use in combination with new and old
batteries, or different types of batteries.
• Be sure to install batteries in the correct direction.
• To ensure waterproof performance, align the
packing (rubber seal) with the groove on the
body and securely attach the lens, then tighten
Lens
the dial so that it is not loose.
• Remove and store batteries when you will not
use the light for a long period of time.
Otherwise, batteries may leak liquid, which
may result in failure.
Constant (High)
Brake mode
(Kinetic function)
When bicycle deceleration is
detected, the light will illuminate for
about 2.5 seconds (on High)
regardless of the mode. Illumina-
tion (on High) will continue while
deceleration is detected.
View from above
Dial
2
2
3
1. Mount the bracket on the seat post or the seat stay
1 3
as shown. to
2. Install the light unit on the bracket until a click
4
is heard , then loosen the dial and adjust the
lighting angle so that the light unit is perpendic-
ular to the ground.
3. To remove the light unit, slide the light while
pressing the release button.
CAUTION!
• Be sure to tighten the dial by hand. If tightened
too hard with a tool, the screw thread may be
stripped.
• Check the bracket periodically to ensure that it
is securely attached and never use the light
when loose.
• Round off the cut edge of the bracket strap to
prevent injury. (*1)
3
*1
5
6
