Summary of Contents for Car-Interface.com CI-VL7-C3D

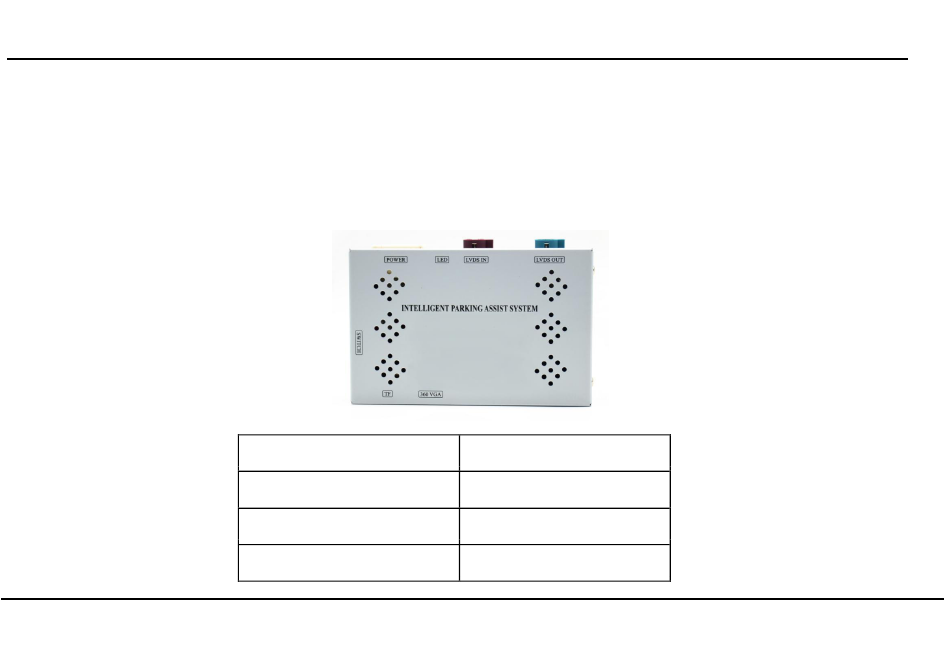

- Page 1 User Manual Camera Interface for 2016-2020,Alfa Romeo, Giulia and Stelvio,6.5" and 8.8" Model name CI-VL7-C3D Released Date 2020-04-10 Manual Version Language English www.car-interface.com...
- Page 2 1. Car Compatibility Chart Car Models Production Year 2016-2020 Alfa Giulia 2016-2020 Alfa Stelvio www.car-interface.com...
-
Page 3: Table Of Contents
Contents 1.Features ................................................2.Specifications ............................................... 3.Wiring Diagram ............................................4.DIP Switch Settings ..........................................5.Operation Instructions ........................................6.Safety Considerations ........................................www.car-interface.com... -
Page 4: Features
1. Features: A. Support Intelligent Parking Assist System including PDC (Parking Distance Control) and FPG (Flexible Parking Guidelines) B. Support further software update by TF Card C. Support adjust FPG position for 6.5" and 8.8" screen D. Supply power for rear view camera E. -
Page 5: Specifications
2. Specifications A. Interface I/O Spec: Input: CVBS *3 (Front/Rear View Camera, 360, Video), VGA *1 (Specific 360 Panoramic System) Output: LVDS Output B. Power Spec: C. Package Content: Interface Unit * 1 Main Power Cable * 1 LVDS Cable * 1... -
Page 6: Wiring Diagram
3.Wiring Diagram www.car-interface.com... - Page 7 www.car-interface.com...
-
Page 8: Dip Switch Settings
4.DIP Switch Settings www.car-interface.com... - Page 9 Some common DIP shortcuts: Aftermarket rear camera (CANbus control): 4 OFF, 5 OFF, 6 OFF, 7 OFF, 8 OFF Aftermarket rear camera (rear lights control): 4 OFF, 5 OFF, 6 OFF, 7 OFF, 8 ON Factory R-cam: 4 OFF, 5 ON, 6 OFF, 7 OFF, 8 ON...
-
Page 10: Operation Instructions
5.Operation Instructions 5.1 Installation Process * Please note that need to power off and take protection measures to avoid damaging in the installation process. 1. Please confirm Interior dash-board(pic 1) and pry down supporting plate beside driving position by professional tools(pic 2). - Page 11 2. Then use a screwdriver to unscrew the left and right screws under the steering wheel( above the brake, as pic 3), then take out the panel(pic 4). www.car-interface.com...
- Page 12 Screw off the screws on the head unit and take out( pic 5). Connect the provided LVDS cable to the OEM LVDS socket in the original radio. The OEMLVDS connector pulled out from the OEM radio connect with provided LVDS-OUT cable.
- Page 13 Rear view as pic 7 . Recover the dash board after www.car-interface.com...
- Page 14 5.2 Interface wire diagram as below picture www.car-interface.com...
-
Page 15: Safety Considerations
6.Safety Considerations 1. In order to protect driving safety and avoid breaking the traffic law, please do not watch the program or use this product when you’re driving. 2. Please do not put the product in the damp environment or water, in order to avoid electric shock, damaged and fire accident caused by short circuit. - Page 16 7. The cables should be connected in a good way, the vehicle installation space is small, so reduce space usage as far as possible, and it will easy installation for monitor. There should be a good plan about connect cables, avoid affecting the active component of connecting, such as control components of turning steering wheel, throttle and brake pedal.
- Page 17 www.car-interface.com...
