Summary of Contents for VACITUP Optimuum 3 kW

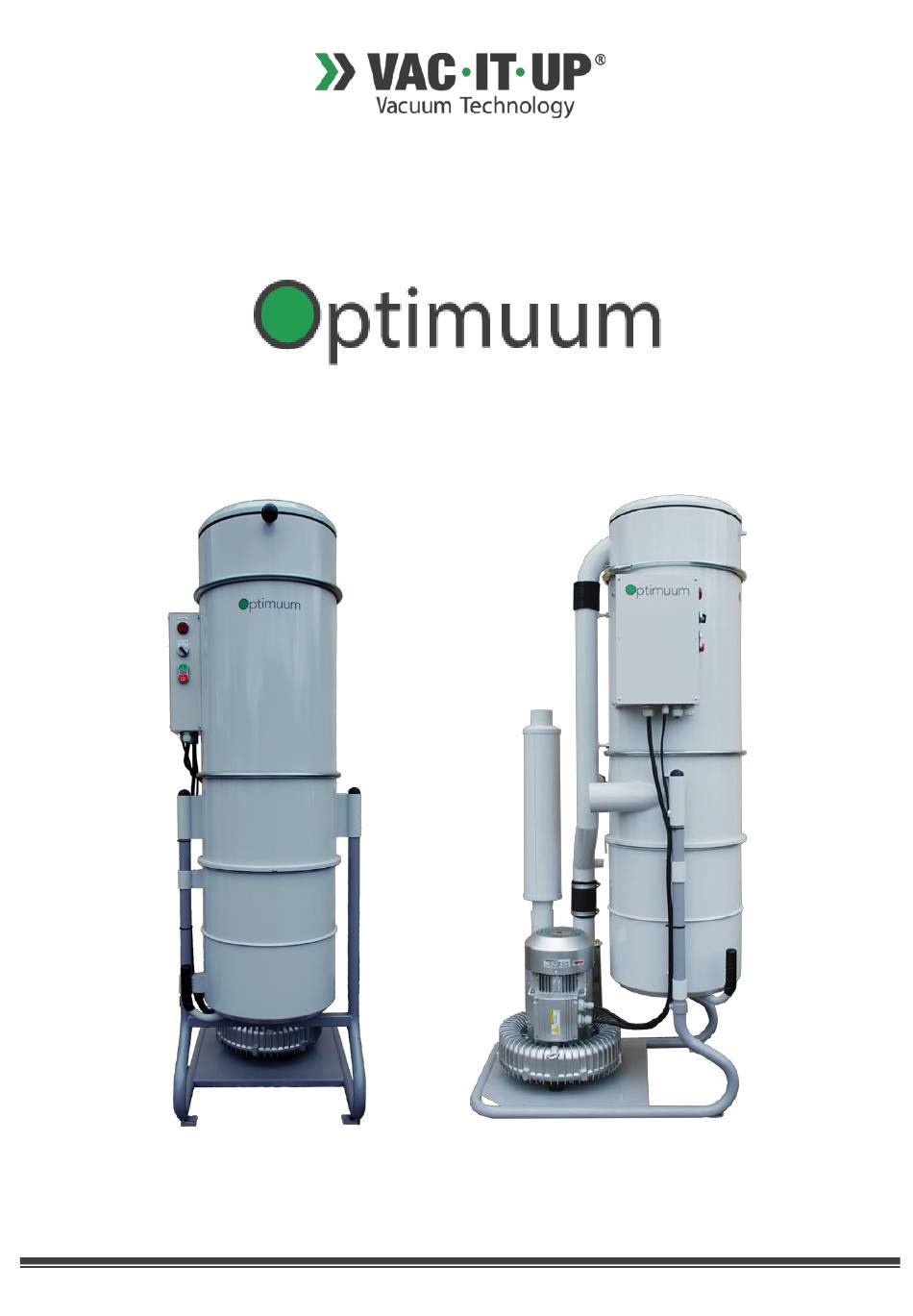

- Page 1 USER’S MANUAL CENTRAL VACUUM CLEANER 3, 4 and 5,5 kW Vacitup AB , Smedvägen 24, SE-433 61 Stenkullen, Sweden Tel +46 (0)31 44 32 00, info@vacitup.se, www.vacitup.se...
- Page 2 Replacement of the Dust Bag Replacement of the Filter Manual Cleaning of the Filter (Back Flush) Trouble-Shooting Service Protocol EC Declaration of Conformity Addendums Machine Specification Card ➢ Wiring Diagram ➢ Operating instructions for ESAM vacuum pump ➢ Instructions for frequency inverter ➢ www.vacitup.se...
- Page 3 When this symbol is displayed, the machine must be turned off and its power supply removed from the electricity outlet. Visual check When this symbol appears, make sure to look attentively at the part of the machine mentioned in the instructions. www.vacitup.se...
-
Page 4: Safety Instructions

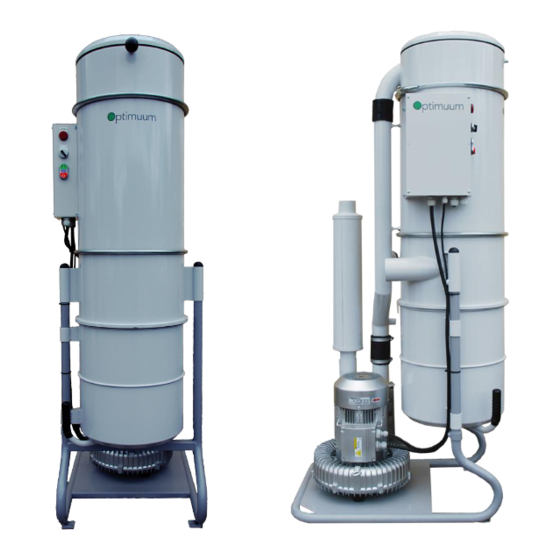

The number of simultaneous users varies depending on the model and the use of the machine. Please refer to the technical data to find out more about your model. The vacuum cleaner in its standard version is NOT intended for the suction of water or wet, explosive or inflammable material. www.vacitup.se... - Page 5 Design of the Central Vacuum Cleaner Filter cleaning handle Top of the filter housing Electrical cabinet Cyclone (filter housing) with filter Lenses for level guard (optional) Dust container Vacuum pump (behind the machine) Stand Lever to open the dust container www.vacitup.se...
-
Page 6: Product Description
Electrical cabinet Cabinet of iron. Components of plastic and copper. Plastic details Polyethylene and Bakelite. Paint Polyester powder, TGIC-free. Sealing Natural rubber. Manufacturer Vacitup AB Smedvägen 24 SE-433 61 Stenkullen Sweden Tel: +46 (0)31 44 32 00 Email: info@vacitup.se www.vacitup.se www.vacitup.se... -
Page 7: Technical Data
* Max. airflow is dependent on the parameters of the frequency inverter. Options: Washable polyester filter, 4,0 m 160422 Micro filter HEPA Special Filter monitoring Level indicator for dust container Automatic filter cleaning Consumables Dust bags (10 pcs) 400040 Filter, polyester, 4,0 m 160422 www.vacitup.se... - Page 8 10. Some dust may be harmful to the health and/or the environment. Check with the regulation at your workplace and in your country. Disposal of used filters and dust bags must be made in accordance with governmental regulations. www.vacitup.se...
-
Page 9: Installation
Make sure that the electrical system between the vacuum cleaner and the piping system is properly grounded, if the piping system is made of metal. All electrical installation and maintenance on electrical parts are only to be performed by an authorised electrician. www.vacitup.se... -
Page 10: Maintenance And Service
For service of the vacuum pump, please read the manufacturer’s operating instructions, which are enclosed with this user manual. Please note that service and repair of the electrical system and the vacuum pump are only to be performed by authorised staff. www.vacitup.se... -
Page 11: Replacement Of The Dust Bag
The dust bag might contain hazardous and poisonous dust and should therefore be disposed of according to governmental regulations. Used dust bags should always be closed completely and be treated carefully. Use only original dust bags. www.vacitup.se... - Page 12 11. Mount the lid on the filter housing. Make sure that the pipe is correctly fitted in the hose. 12. Fit the locking ring. 13. Tighten the hose clamp on the hose between the top of the filter housing and the suction pipe to the clamp. Filter cleaning handle Hose clamps www.vacitup.se...
- Page 13 If the suction capacity is still low, this process may be repeated. If the suction capacity is still low after several back flushes, the filter needs to be replaced. Step 2 Step 5 Pull on the filter cleaning handle Pull on the filter cleaning handle then push it in. www.vacitup.se...
-
Page 14: Troubleshooting
If so, tighten it or replace it with a new one. Check that the vacuum filter located in the above-mentioned hose is clean. If necessary, clean it. Also clean the dust container. Check that the dust container fits tightly with the cyclone. www.vacitup.se... -
Page 15: Service Protocol
Service protocol Vacitup Central Vacuum Cleaning System Date: Model: Serial number: Customer: Central unit Rem. Missing Done Replacement of the filter Cleaning of filter housing and dust container. Check vacuum pump, screws, cables and connections. Check density and hoses. Check back flush function. -
Page 16: Ec Declaration Of Conformity
We declare that the above-mentioned products comply with the following European Directives: Low Voltage Directive IEC/EN 60335-2-69, IEC/EN 60335-1 Machinery Directive EN ISO 12100 EMC Directive 2004/108/EC with regards to the Harmonised Standard EN 60 439-1 Stenkullen, 07 April 2020 Almir Karahodzic CEO, Vacitup AB www.vacitup.se...
