EPOS Hybrid GTW 270 User Manual

EPOS Hybrid GTW 270 User Manual

Wireless earbuds , low-latency usb-c dongle
Hide thumbs Also See for Hybrid GTW 270:

Advertisement

GTW 270 Hybrid
Wireless earbuds | Low-latency USB-C dongle
Model: SCBT20 | SCBT16
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hybrid GTW 270 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EPOS Hybrid GTW 270

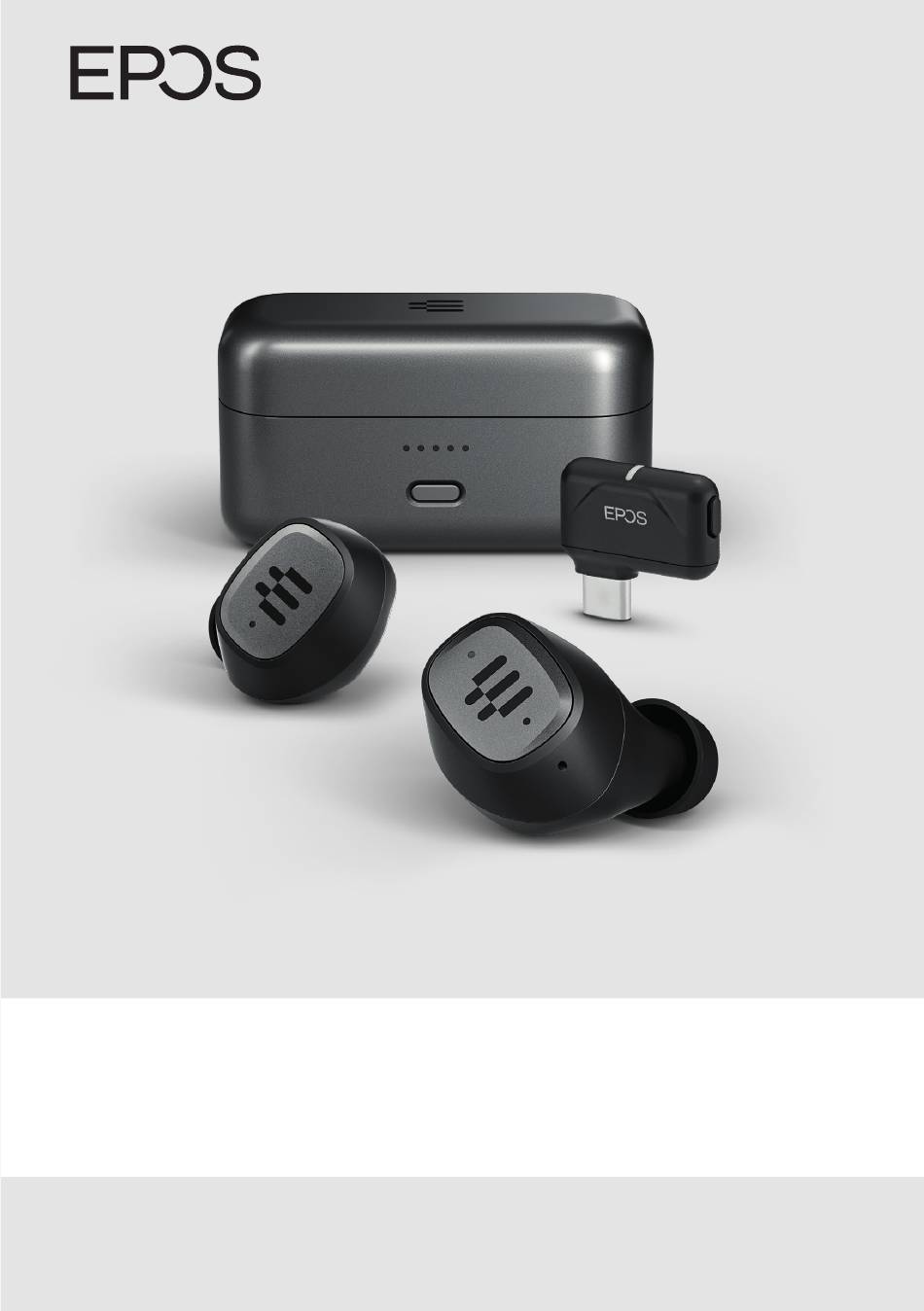

  • Page 1 GTW 270 Hybrid Wireless earbuds | Low-latency USB-C dongle Model: SCBT20 | SCBT16 User Guide...
  • Page 2: Table Of Contents

    Using Siri , Google Now , Alexa �������������������������������������������������������������������������������������������������������������������13 ® ™ Installing the EPOS Gaming Suite ���������������������������������������������������������������������������������������������������������������13 Changing the voice prompt language �����������������������������������������������������������������������������������������������������14 Updating the firmware �������������������������������������������������������������������������������������������������������������������������������������������14 How to charge ��������������������������������������������������������������������������������������������������������������������15 Charging the earbuds ������������������������������������������������������������������������������������������������������������������������������������������ 15 Charging the case ��������������������������������������������������������������������������������������������������������������������������������������������������� 16 Good to know ���������������������������������������������������������������������������������������������������������������������17...
  • Page 3: Welcome

    Slip the GTW 270 Hybrid Dual microphone design delivers earbuds into your ears and slip away acoustic clarity from the ordinary world with EPOS signature audio in miniature: Deep tight Multi-command button bass, natural clear mids and sparkling A single button switches through...
  • Page 4: Package Contents

    Package contents Package contents GTW 270 earbuds L & R with built-in rechargeable battery On-the-go charge case with built-in rechargeable battery for earbuds GSA 70 USB-C Low-latency dongle Dongle sleeve USB-A to USB-C charge cable ® USB-C to USB-A extension cable ®...
  • Page 5: Gtw 270 At A Glance

    GTW 270 at a glance GTW 270 at a glance Earbuds at a glance Right earbud Microphone 2 Ear adapter Status LED Microphone 1 Left earbud Multi-function button Status LED...
  • Page 6: Charge Case At A Glance

    GTW 270 at a glance Charge case at a glance Status LEDs Multi-function button USB-C charging socket Earbuds charging compartments with magnetic holders Magnetic lid catch Low-latency dongle at a glance Status LED Pairing button USB-C connector...
  • Page 7: How To Connect To Your Devices

    Pairing with a Bluetooth device Dock both earbuds� Close the lid� Open the lid� Press and hold the charge case button to initiate pairing� Search for Bluetooth devices – see instruction manual of your device – and select “EPOS GTW 270”� EPOS GTW 270...
  • Page 8: Connecting The Dongle

    How to connect to your devices Connecting the dongle You can connect the dongle e� g� to your PC, Nintendo Switch™, PS4™ or Android™ device� Upon arrival the dongle is already paired with the earbuds. Open the lid to power on the earbuds� Switch on your device� Make sure you are not already connected to a Bluetooth device�...
  • Page 9: Pairing With The Dongle

    How to connect to your devices Pairing with the dongle Upon arrival the dongle is already paired with the earbuds� In case you reset your paired device list, please follow the instructions below� Have both earbuds in the closed charge case, then open the lid� Plug the dongle into the USB port of your gaming platform of choice�...
  • Page 10: Finding Your Fit

    Finding your fit Finding your fit Changing the eartips For the optimal audio experience and the most comfortable fit, try out each size of our custom-designed eartips� Check for your left and right ear separately as most people’s ears are different in size� Overall, you should feel a good seal without loss of comfort�...
  • Page 11: How To Use - The Basics

    How to use – the basics How to use – the basics CAUTION Risk of hearing damage! Listening at high volume levels for long periods can lead to permanent hearing defects� Set the volume on your connected device to a low level before inserting the earbuds�...
  • Page 12: Powering The Earbuds Off

    How to use – the basics Powering the earbuds off Your earbuds’ true home is your charge case� They feel home and safe when docked into the case� Dock both earbuds� Close the lid to power off the earbuds and automatically charge them� The battery is being charged –...
  • Page 13: Handling Audio

    How to use – the basics Handling audio Press the button* to: Resume streaming audio Pause streaming audio Skip to next track Skip to previous track If you receive and accept a call, audio is paused and restarts after the call – if supported by the connected device�...
  • Page 14: Using Siri ® , Google Now ™ , Alexa

    ™ Virtual Personal Assistants (VPA) such as Siri are supported by your GTW 270� Press and hold the button to activate the VPA on your device� Installing the EPOS Gaming Suite The free software EPOS Gaming Suite allows you to add value to your GTW 270�...
  • Page 15: Changing The Voice Prompt Language

    Changing the voice prompt language Have both earbuds in the closed charge case� Connect the USB cable to the charge case and your computer� The LEDs light up� Start the EPOS Gaming Suite and change the language in the settings� Gaming Suite English Deutsch ..
  • Page 16: How To Charge

    How to charge How to charge The GTW 270 offers up to 20 hours of battery life� This includes 5 hours of battery in the earbuds plus 15 hours with the on-the-go charge case� Charging the earbuds Dock the earbuds in the charge case and close the lid� The case LEDs pulse 3 times to show that the earbuds are powered off and charging in the case�...
  • Page 17: Charging The Case

    How to charge Charging the case Plug the supplied charge cable to the charge case� Connect the USB-A plug to your laptop or a certified wall power supply*� You can charge the earbuds at the same time� The LEDs light up to indicate the battery status� Full charge: 1 hour 45 minutes for earbuds and charge case USB-A 100%...
  • Page 18: Good To Know

    Good to know Good to know Pair up to eight devices The GTW 270 can save up to eight paired devices� If you pair the GTW 270 with a ninth device, the device with the oldest activity will be overwritten� If you want to re-establish a connection with this device, you will need to pair it again�...
  • Page 19: If You Leave The Bluetooth Or Dongle's Range

    Good to know If you leave the Bluetooth or dongle’s range The range between the earbuds and the connected device is device dependent� The transmission range largely depends on environmental conditions such as wall thickness, wall composition etc� With a free line of sight, the Bluetooth transmission range is up to 15 meters and up to 5 meters via low-latency connection�...
  • Page 20: Using The Dongle Sleeve

    Good to know Using the dongle sleeve Attach the dongle sleeve e� g� to a key ring� Put the dongle in the sleeve�...
  • Page 21: If A Problem Occurs

    If a problem occurs ��� If a problem occurs ��� Clearing the pairing list of the earbuds (Reset) Dock the earbuds in the charge case and close the lid� Press the button until the LEDs flash purple 3 times� The pairing list is cleared Open the lid to start pairing�...
  • Page 22 If a problem occurs ��� Changing Audio settings – Microsoft Windows ® Windows usually changes the Audio settings automatically if you connect the dongle� If the dongle and earbuds are connected but you hear no sound: Right-click the Audio icon� Select under output GSA 70 as main audio�...
  • Page 23: How To Care For Your Earbuds

    How to care for your earbuds How to care for your earbuds Store your earbuds in the charge case to keep them best protected� Avoid storing the earbuds in hot or cold environments, for example a closed car in summer, or in winter conditions to prevent depletion of battery lifetime or capacity� Cleaning the products CAUTION Liquids can damage the electronics of the product!
  • Page 24: Cleaning The Eartips

    How to care for your earbuds Cleaning the eartips For hygienic reasons, you should wash the earbuds from time to time� Remove the eartips carefully� Wash the eartips with warm water or use a wet wipe and allow them to air dry� Push the eartips on the in-ear sound tunnels�...
  • Page 25: Specifications

    Specifications Specifications Earbuds Ear coupling In-ear Transducer principle Dynamic, closed Dimensions (L x W x H) 23�8 x 23�2 x 23�7 mm / 0�94 x 0�91 x 0�93 in Weight Left: 6�1 g / 0�22 oz Right: 6�6 g / 0�23 oz Noise cancellation passive Connectivity...
  • Page 26 Specifications Charge case Dimensions (L x W x H) 67�5 x 33�2 x 36�2 mm / 2�66 x 1�31 x 1�43 in Weight 61 g / 2.15 oz Connection USB-C Charging time 1�75 hours Rechargeable battery (built-in) Lithium Polymer / 3�7 V DC / 500 mAh Max�...
  • Page 27 Specifications DSEA A/S Kongebakken 9, DK-2765 Smørum, Denmark www.eposaudio.com Publ. 10/20, A01...
