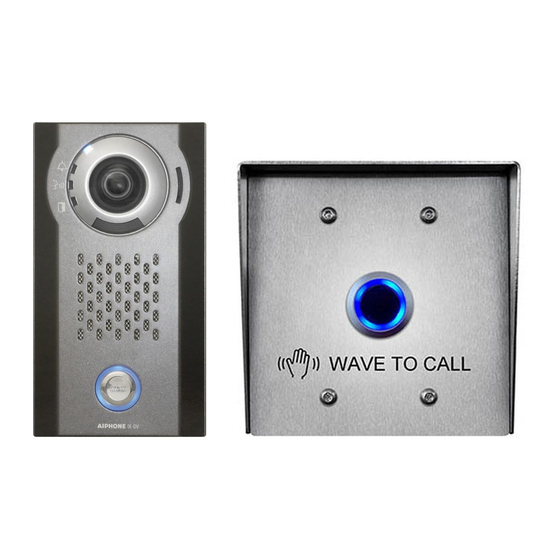

IXW-HWCBP includes a touchless switch attached to a mounting plate, a PS-POE, and the SBX-2G/A
surface mount box. This device can be connected to any IX Series door station with a trigger input and a PoE
passthrough. It will place calls to the programmed station without having to touch the call button. The touchless
switch is powered by the PS-POE. The switch's contact output will trigger a contact input on the door station. The
contact input will need to be programmed and assigned to a calling group. This instruction manual will show how
to connect the IXW-HWCBP to the door station and program the door station for contact input calling.

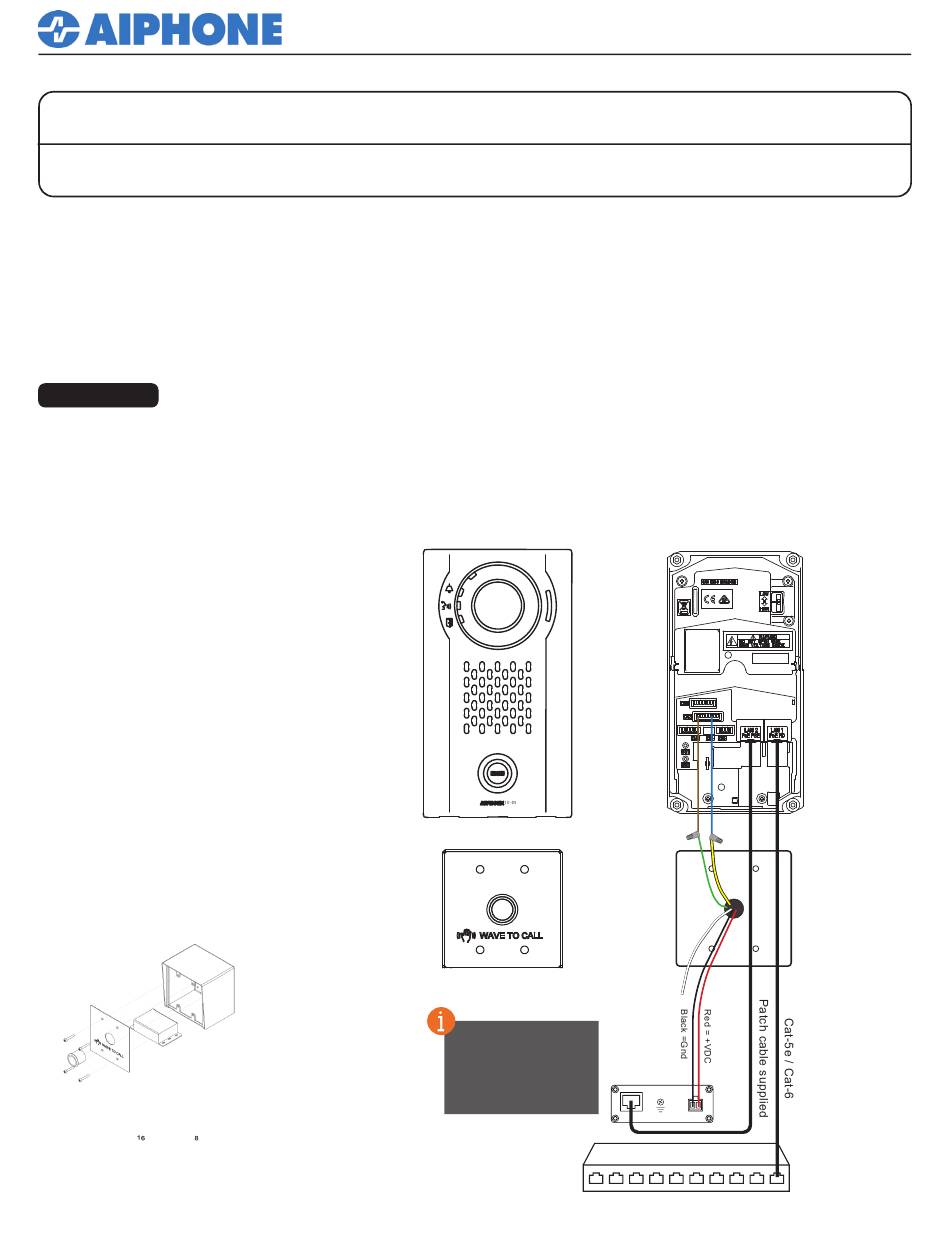

Wiring
A PoE+ switch is required when using the IXW-HWCBP. Connect a network cable from the PoE+ switch to LAN
1 of the IX Series door station. LAN 2 connects to the included PS-POE. Connect the power output of the
PS-POE to the red (+VDC) and black (Gnd) wires of the touchless switch. Connect the green (N/O) and yellow
(Common) wires of the touchless switch to contact input 1 on the IX Series door station (brown/blue wires on
CN2).
Package Contents
Qty 1 Panel with touchless switch
Qty 1 SBX-2G/A
Qty 1 PS-POE
Qty 4 speed nuts for panel mounting
Qty 4 screws for panel mounting
Qty 1 three-foot patch cable
Installation
1. Secure SBX-2G/A to wall
2. Connect included patch cable, power wires, and
a ground wire to PS-POE and place unit
inside the SBX-2G/A
3. Connect included patch cable to LAN 2 of IX
series door station
3. Connect touchless switch to input of IX series
door station and PS-POE
- Green (N.O.) to Brown (CN2 of IX-DV)
- Yellow (Common) to Blue (CN2 of IX-DV)
- White (N.C.) not used
- Red (+VDC) to + of PS-POE
- Black (GND) to - of PS-POE
4. Secure switch panel to SBX-2G/A
Specifi cations
Dimensions: 4-¹³⁄ " H x 4-⁷⁄ " W x 4" D
Aiphone Corporation
www.aiphone.com
tech@aiphone.com
800-692-0200
IXW-HWCBP
Hand Wave Call Button and Surface Mount Box
- Instructions -
IX-DV
IXW-HWCBP
N.C. (not used)
If a PoE passthrough is
not available, connect
the PS-POE directly to
PoE IN
the PoE switch
PoE+ Switch
Back View
PS-POE
-
+
IXW-HWCBP Instr
0321
Advertisement
Table of Contents
Related Manuals for Aiphone IXW-HWCBP
Summary of Contents for Aiphone IXW-HWCBP
- Page 1 Wiring A PoE+ switch is required when using the IXW-HWCBP. Connect a network cable from the PoE+ switch to LAN 1 of the IX Series door station. LAN 2 connects to the included PS-POE. Connect the power output of the PS-POE to the red (+VDC) and black (Gnd) wires of the touchless switch.
- Page 2 The fi rst step is to enable the contact input on the IX Series door station will connect to the IXW-HWCBP. Open IX Support Tool and select the system to edit. Door stations can have up to 6 contact inputs. These instructions will show using contact input 1. In the upper left corner of the screen click Station View to switch from Table View to Station View.
- Page 3 01. Use the Priority drop-down menu to select the calling priority. Click Update to save your settings. For more details about the features and information above, please contact Technical Support. Aiphone Corporation | www.aiphone.com | tech@aiphone.com | (800) 692-0200 Page 3...
- Page 4 Using the Status column, confi rm that each station has successfuly been updated with their new setting fi le. For more details about the features and information above, please contact Technical Support. Aiphone Corporation | www.aiphone.com | tech@aiphone.com | (800) 692-0200 Page 4...
