ACE 4000 Hand Clipper
and Optional Hanger Assembly
Encore Hartco
ACE 4000
Hand Clipper
Use with
MADE
Encore Hartco
IN THE
ACE-1 or ACE-3
U.S.A.
spring anchor
clips
Optional
Hanger
Assembly
ACE clip installed
www.encorehartco.com
info@encorehartco.com
Northbrook, IL 60062 U.S.A.
Phone: (224) 723-5524
Fax: (224) 723-5526
ENCORE HARTCO

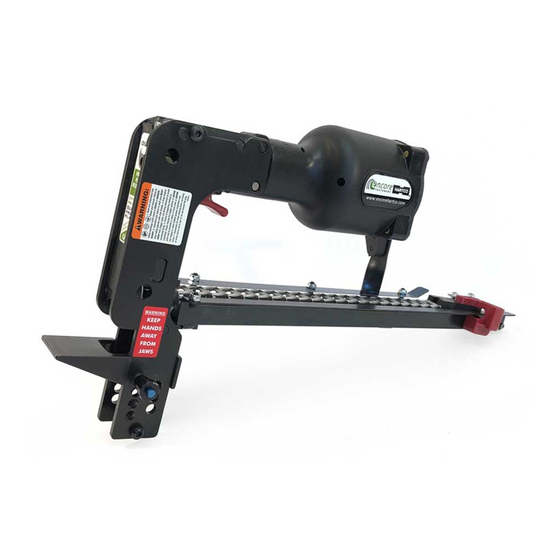

ACE 4000 SERIES
Pneumatic Hand-Held
Clipping Tool
BLACK Housing
BLACK Clip Magazine
EH-4000
Compatible with
Encore Hartco ACE Clips,
VersaClips and other industry
standard spring anchor clips
7-23-2020
SAFETY
INFORMATION
READ THE ENTIRE
MANUAL BEFORE
OPERATING THE TOOL.
SAFETY GLASSES
should always be
worn while operating,
maintaining or
repairing a tool.
KEEP HANDS AND
FINGERS AWAY from
the blade and anvil
area when operating or
connecting air supply to tool.
DISCONNECT THE
AIR SUPPLY when
mechanically clearing
a jam, performing
maintenance or repairs, and
whenever the tool is not in use.
Never use oxygen,
carbon dioxide or any
other bottled gas as a
power source for this
tool—the tool will explode and
cause serious injury.
INJURY PREVENTION—
Never point the tool
toward yourself or
anyone else.
Advertisement
Summary of Contents for Encore Hartco ACE 4000 Series
- Page 1 Encore Hartco Pneumatic Hand-Held ACE 4000 Clipping Tool Hand Clipper BLACK Housing BLACK Clip Magazine EH-4000 Compatible with Encore Hartco ACE Clips, VersaClips and other industry standard spring anchor clips 7-23-2020 SAFETY INFORMATION READ THE ENTIRE Optional MANUAL BEFORE Hanger OPERATING THE TOOL.
- Page 2 The ACE 4000 Hand Clipper HANGER ASSEMBLY (OPTIONAL) Item # Description Part # 30131 30131 Hanger Assembly 20035 20003 O-RING 30000 15037 Bearing PLUG (RED) MAIN VALVE 20000 O-RING 15316 Screw 20019 15316 SCREW PLUG 20012 20001 O-RING 55095 20036 C-Clip HANGER YOKE 20037...
- Page 3 ACE 4000 PARTS Item # Description Item # Description Item # Description 20010 Dowel Pin – 1/8 x 3/4 20000 O-Ring #111 90D 30005 Piston Spring 20021 Nylock Nut, 8-32, Thin 20001 O-Ring #112 30006 Pin, Housing 20034 PHPS, 6-19 x 5/8 20003 O-Ring #014 70D 30007...
- Page 4 ACE 4000 OPERATING INSTRUCTIONS TO GET STARTED TOOL OPERATION 1. Set rail to be clipped on top of tool 1. Install a ¼” NPT fitting (not anvil (f). Check for a good fit: included) into air inlet opening in the back of the housing, using Max rail height : 1-3/4 “...
