Summary of Contents for MSV PlayTec

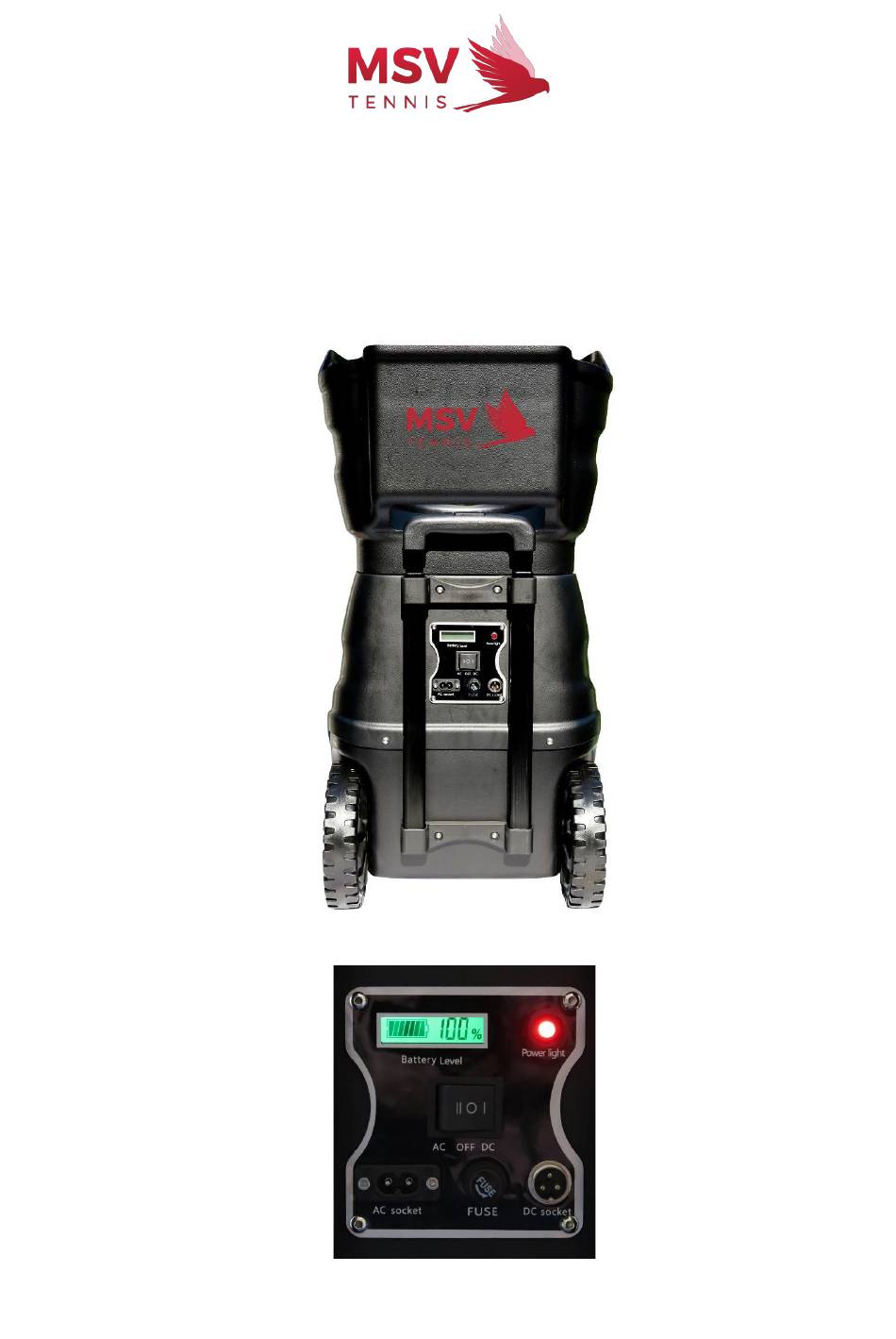

- Page 1 MSV PlayTec Operating Instructions (16.2.2021)
- Page 2 Important notes before first use Mains and battery operation Congratulations on the purchase of your MSV PlayTec ball throwing machine. To ensure that the machine gives you long-lasting pleasure and effective training hours, we ask you to read the following instructions for use carefully.
- Page 4 Once the battery is fully charged, the color of the diode on the charger will change from red to green. (If the diode is green from the beginning, then MSV has already charged the battery. It is then no longer necessary to charge it again). The charging time can be several hours.
- Page 5 The uniformity of the throwing wheels depends on the homogeneity of the balls you use. The machine will throw lightly used balls faster than old worn balls. A mixture of old and new balls should therefore be avoided. Irregular throws can also be caused by a lot of dirt and printing ink on the rubber coating.
- Page 6 With the Frequency button you can set the intervals with which the balls are thrown. The Topspin and Back Spin (Slice) keys are pressed when you want to play the following ball throws with spin. You can determine the strength of the spin yourself. Fixed Point in the center marked by an (F).
- Page 8 How to set the exercises with the remote control that I see on the diagrams. Press the <speed> key for 70 Km/h speed, press <frequency> until the 9 appears. Now press the <cross> key two dots appear on the playing field in front of the T-line. By pressing the <cross>...
- Page 9 The power consumption is so low that this has no influence on the total consumption. You can find the remote control under Item No.4454 in our online store www.msv-tennis.com...
- Page 10 Press the <Speed> key to 100 Km/h, then <Frequency> to 5, then the North arrow key (the upper one) to 12, then the <F> and then <Start>. The left square below the playing field shows the orientation of the throwing wheels to the left or to the right, and the middle square shows the orientation up or down.
- Page 11 Press <Speed>70 Km/h, <Frequency> 5, <Vertical> and then <Start>, with each subsequent press the distance to the baseline changes. Press <Speed> 80Lm/h then <Frequency> 5, then the North arrow key to 14, then <Horizontal> and <Start>...
- Page 12 Press <Speed> 80Lm/h then <Frequency> 5, then the North arrow key to 14, then <Horizontal> and <Start>. < Press <Speed> 70 Km/h, <Frequency> 5, the north arrow to 14, the <Random> button and then the <start> button...
- Page 13 Press <Speed> 100 Km/h then <Frequency> 5, the North arrow to 12, then the <F> key and the <Start> key. Press <Speed> 40 Km/h, then <Frequency> 5, the north arrow key to 40, then the <F> key and then <Start>.
- Page 14 Press the <Topspin> key and then one of the six keys, e.g. <Random> or <Cross> and then <Start> Press the <Backspin> key and one of the six function keys and then <Start>.
- Page 15 Press the<Speed> button to 80 Km/h <Frequency> to 5, then press the <F> arrow button to 14 and press<Horizontal> 2 times and then <Start>. Press <Speed> 80Km/h, then <Frequency 5>, then the <F> key until the number 14 appears in the middle square under the playing field, then please press <Horizontal> three times and then <Start>.
- Page 16 Press <Speed> 80Km/h, then <Frequency 5>, then the <F> key until the number 14 appears in the middle square under the playing field, then please press <Horizontal> three times and then <Start>. How do I make the ball land on the center of the baseline? Press the ON/OFF button, then the black dot will land on the T-line.
- Page 17 Explanation of the remote control To get to know the remote control and thus the MSV PlayTec better, you can also operate the LCD remote control at home. You can also remove the thin foil that was put on to protect the remote control.
- Page 18 The wheels should feel rough after treatment. This method works well if you have used MSV PlayTec V on brick dust. However, there are granules in the hall that get so firmly embedded in the rubber of the throwing wheels that you cannot sand them out.
- Page 19 Technical data MSV PlayTec Model Color Black Mains: 110-240V (10,8V, 25,5A/h, 307,8 W/h) (transformer Voltage built-in) Lithium-ion battery built-in (12 V) 307,8 W Power consumption One fuse must be inserted by you. You still have two spare fuses included Ball speed...
- Page 20 EG – Konformitätserklärung im Sinne der EG-Maschinenrichtlinie 98/37/EG und 2006/42/EG Hiermit erklären wir, Mauve Sports-MSV oHG, dass die nachfolgend bezeichnete Maschine auf Grund ihrer Konzipierung und Bauart sowie in der von uns in Verkehr gebrachten Ausführung den einschlägigen grundlegenden Sicherheit- und Gesundheitsforderungen der EG –...
