Summary of Contents for MicroTouch DS-550P-A1

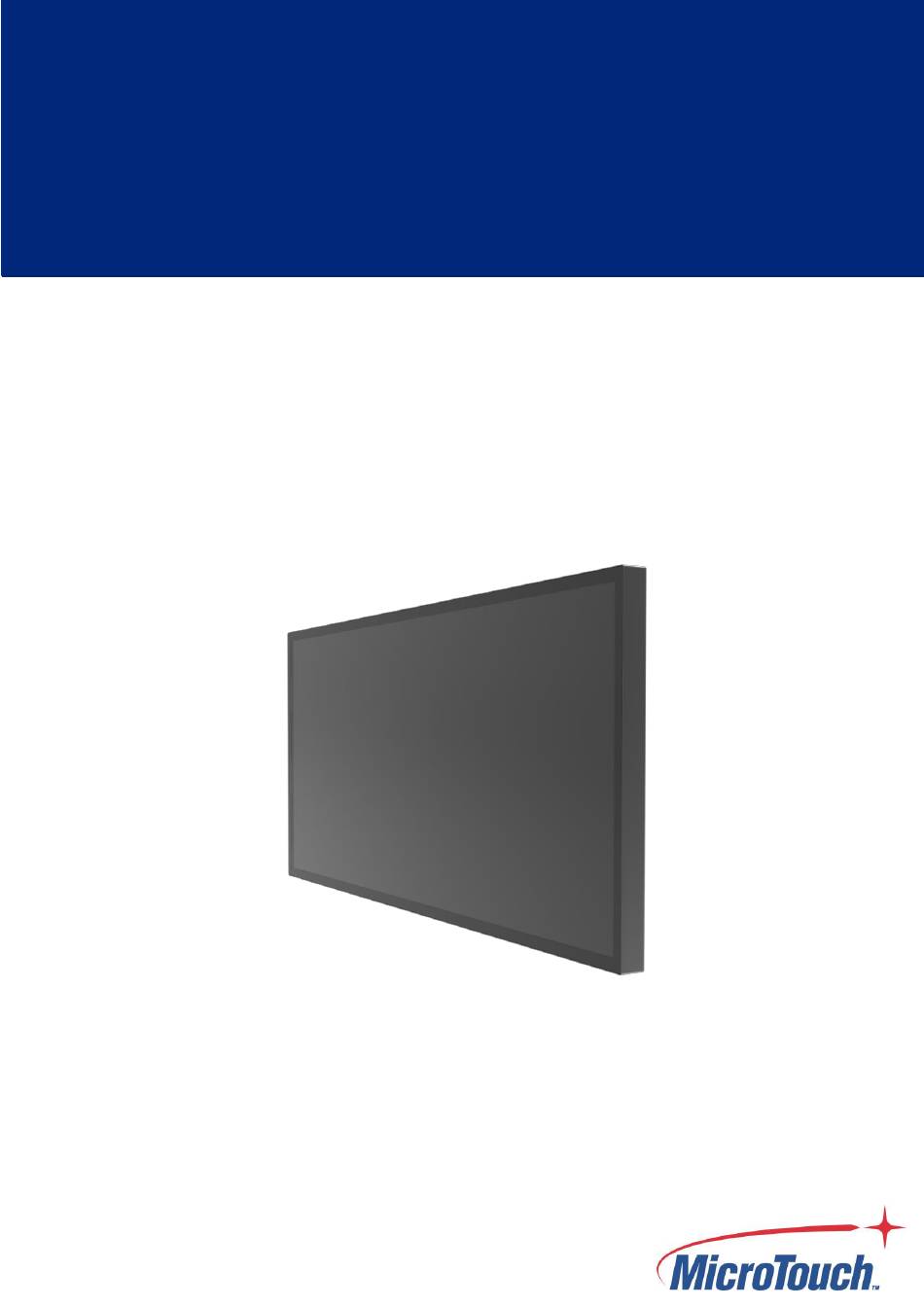

- Page 1 User Manual DS-550P-A1 Digital Signage Monitor...
- Page 2 TES Company reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of MicroTouch TES Company to notify any person of such revisions or changes. Windows is a registered trademark of Microsoft, Inc.
- Page 3 Compliance Information For FCC (USA) This equipment has been tested and fund to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. There limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 Renseignements relatifs à la conformité Pour la FCC (États-Unis). Ce matériel a fait l’objet d’essais qui ont déterminé qu’il respectait les limites d’un appareil de classe A selon la partie 15 des règlements de la FCC. Ces limites sont établies pour assurer une protection raisonnable contre les parasites nuisant à...
- Page 5 Usage Notice Warning - To prevent the risk of fire or shock hazards, and do not expose the product to moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Warning - Power cord shall be connected to a socket-outlet with earthing connection.
- Page 6 Avis d’utilisation Mise en garde — Pour prévenir les risques d’incendie ou d’électrocution, ne pas exposer le produit à l’humidité. Mise en garde — Prière de ne pas ouvrir ou démonter le produit, car cela pourrait entraîner l’électrocution. Mise en garde – Le cordon d’alimentation doit être branché à une prise pourvue d’une mise à...
-
Page 7: Table Of Contents
Table of Contents Chapter 1......................... 7 1.1 Overview ........................8 1.2 Feature ........................8 1.3 Specifications ......................8 1.4 Block Diagram ......................9 1.5 Interface Connectors ....................10 1.5.1 Power Connector ....................10 1.5.2 Video Signal Connector ..................10 1.5.3 Signal Connector ....................12 1.6 Package Overview .................... -
Page 8: Chapter 1
Chapter 1 Product Introduction... -
Page 9: Overview
1.1 Overview The DS-550P-A1 Series is a 55" large size thin-film transistor (TFT) liquid crystal display (LCD).This unit is to be used as commercial and light industrial equipment only. 1.2 Feature ▪ 4K2K High Resolution Display ▪ Dynamic Touch Sensitivity Technology Supports up to 6mm Thickness glass ▪... -
Page 10: Block Diagram
1.4 Block Diagram This section describes the electrical requirements of the monitor. The block diagram in figure 1 illustrates the various electrical sub-systems. -
Page 11: Interface Connectors
1.5 Interface Connectors 1.5.1 Power Connector The AC converter shall have an IEC320 type male power receptacle for connection to AC mains power. The power cord, exact type to be supplied in the appropriate Option Kit, shall be length of 1.8 0.05 meters, and PC99 compliant. 1.5.2 Video Signal Connector HDMI1 (HDMI 2.0) &... - Page 12 DVI-I Signal Signal Signal TMDS Data 0- TMDS Data 2- TMDS Data 1- TMDS Data 0+ TMDS Data 2+ TMDS Data 1+ TMDS Data 2/4 TMDS Data 1/3 TMDS Data 0/5 Shield Shield Shield TMDS Data 5- TMDS 4- TMDS 3- TMDS Data 5+ TMDS 4+ TMDS 3+...
-
Page 13: Signal Connector
1.5.3 Signal Connector USB Connector Signal RJ11 Connector (Remote Key) Signal MENU DOWN SELECT POWER Audio Line in / Line out connector... -
Page 14: Package Overview
This product is intended to be supplied by a AC-in Power source, rated 100V~240V, 1.8~0.8A 50/60Hz minimum, Tma = 40 degree C minimum, and the altitude of operation = 5000m minimum. If it needs further assistance with purchasing the power source, please contact to MicroTouch for further information. Mise en garde! Cet appareil est conçu avec une alimentation de courant CA, d’une tension... -
Page 15: Chapter 2
Chapter 2 Product Installation... -
Page 16: About Vesa Mount
2.1 About VESA Mount “VESA Flat Display Mounting Interface The DS-550P-A1 series conform to the Standard” which defines a physical mounting interface for touch monitor and corresponding with the standards of touch monitor mounting devices. The VESA mount is located on the back of this unit. -
Page 17: Install The Vesa Screw
2.1.1 Install the VESA screw Note: Please install/ dismantle the product when the device is in the shutdown state. Step 1: Fasten four screw nut into the VESA hole The specification of the screw nut is M6 x 8mm, the length of nut is 43mm Step 2: Fasten four M6 screws into the screw nut The specification of the screw is M6 x 30mm... -
Page 18: About General Mounting Information
2.2 About General Mounting Information The following two mounting orientations are supported: Landscape and portrait mode. For optimal touch performance, ensure that the monitor is supported fully and is as flat as possible. 2.2.1 Landscape Top side 2.2.2 Portrait Top side... -
Page 19: On-Screen Display
2.3 On-Screen Display The DS-550P-A1 series provide side panel controls. And the following is OSD function table: Menu off status Menu on status MENU Menu appear Menu disappear/ return to main item ▲ Main item select up/ Adjust up ▼... -
Page 20: Osd Function Description
2.3.1 OSD Function Description Item Content Default Contrast The monitor luminance level control. Brightness The monitor backlight level control. Auto Adjust Fine-tune the image to full screen automatically. Left/Right Moving screen image horizontal position to left or right. Up/Down Moving screen image vertical position to up or down. Horizontal size The screen image horizontal dot clock adjustment. -
Page 21: Timing Table Chart
2.3.2 Timing Table Chart Polarity H-Freq. Band Width Mode Resolution (KHz) (MHz) VGA 640x480 60Hz 31.47 25.175 VESA 800x600 60Hz 37.88 VESA 1024x768 60Hz 48.36 VESA 1280x720 60Hz 44.772 74.5 VESA 1280x768 60Hz 47.776 79.5 VESA 1280x1024 60Hz VESA 1280x960 60Hz VESA 1440x900 60Hz 106.5 VESA 1360x768 60Hz... -
Page 22: Dimension
2.4 Dimension 2.4.1 Front View 2.4.2 Side View... -
Page 23: Rear View
2.4.3 Rear View... -
Page 24: Appendix
Appendix... - Page 25 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱：觸控螢幕 型號（型式）：DS-550P-A1 Type designation (Type) ：DS-550P-A1 Equipment name：Touch Monitor 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 Unit 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Cadmium Hexavalent Polybrominated Polybrominated Lead Mercury...
