MODEL 1010 PIEZOELECTRIC
PULSE TRANSDUCER
545 Main Street, Suite C-2
Morro Bay, CA 93442
UFI
Introduction
Piezo-electric transducers convert physical activity
such as changes in force or pressure into an
electrical signal. The Model 1010 transducer is a
piezo-electric transducer designed for wide ranging
applications in the life sciences. These applications
include:
•
sensing and recording peripheral pulse in
the finger;
•
measuring carotid pulse;
•
recording throat excursions from swallowing;
•
monitoring Korotkoff sounds;
•
monitoring heart sounds;
•
use as a small-animal pulse and respiration
transducer;
•
monitoring vibrations; and
•
counting liquid drops for titrations
Step-by-step instructions are provided below for the
first five of these applications.

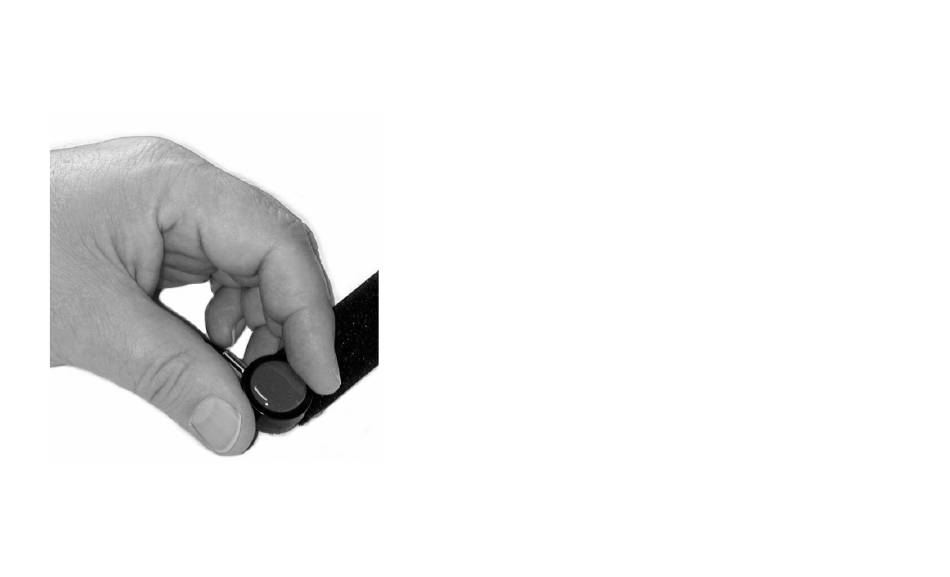

For any force to be measured, there must be an
opposing force against which it acts. For the Model
1010, a VELCRO® strap usually imposes this
counter-force. The Model 1010 may also be
attached with a rubber chest strap or adhesive tape.
2
Advertisement
Summary of Contents for UFi 1010
- Page 1 MODEL 1010 PIEZOELECTRIC Piezo-electric transducers convert physical activity PULSE TRANSDUCER such as changes in force or pressure into an electrical signal. The Model 1010 transducer is a piezo-electric transducer designed for wide ranging applications in the life sciences. These applications include: •...
- Page 2 Signals of just 4-5 mV saturate some amplifiers. If Model 1010 does this, a simple resistive voltage divider (see below) should The UFI Model 1010 Pulse Transducer is a rugged be inserted between the transducer and instrument. However, it may be damaged unless instrument input.
- Page 3 Experiment to obtain best signal. Transducer To monitor swallowing: output should be at least 100-200 mV. • place Model 1010 on throat near base to one • Peripheral vasoconstriction, often due to a side of thyroid cartilage; secure with elastic.
- Page 4 WARRANTY" AS OUTLINED BELOW Warranty and repair If your UFI transducer, electrode, or electrode tester ceases to operate--regardless whether the cause is accidental, intentional, or whatever---return it to us. We will repair it or replace it with a new...
