LUXEON MultiColor
Module 2.5W
Assembly and Handling Information
Introduction
This application brief addresses the recommended assembly and handling
guidelines for LUXEON MultiColor Module 2.5W emitters. This compact 4-in-
1 package makes color tuning easier. Each channel is individually addressable,
enabling a large color gamut while simplifying the ability of getting just the right
color point. Proper assembly, handling, and thermal management, as outlined in this
application brief, ensures high optical output and reliability of these emitters.
Scope
The assembly and handling guidelines in this application brief apply to LUXEON
MultiColor Module 2.5W with the following part number designation:
L 1 M C –
A A A B B C C D D E
Where:
A A A
–
designates color (R=Red, G=Green, B=Blue)
B B
–
designates CCT (30=3000K)
C C
–
designates CRI (80=80CRI)
D D
–
designates footprint (50=5mm x 5mm)
E
–
designates binning
In the remainder of this document the term LUXEON emitter refers to any LUXEON
MultiColor Module 2.5W product as listed above.
AB244 LUXEON MultiColor Module 2.5W Application Brief ©2020 Lumileds Holding B.V. All rights reserved.
M P 0
ILLUMINATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUXEON MultiColor Module 2.5W and is the answer not in the manual?

Questions and answers

Summary of Contents for LUMILEDS LUXEON MultiColor Module 2.5W

  • Page 1 (50=5mm x 5mm) – designates binning In the remainder of this document the term LUXEON emitter refers to any LUXEON MultiColor Module 2.5W product as listed above. AB244 LUXEON MultiColor Module 2.5W Application Brief ©2020 Lumileds Holding B.V. All rights reserved.

  • Page 2: Table Of Contents

    6 . Packaging Considerations—Chemical Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 AB244 LUXEON MultiColor Module 2.5W Application Brief 20200518 ©2020 Lumileds Holding B.V. All rights reserved.

  • Page 3: Component

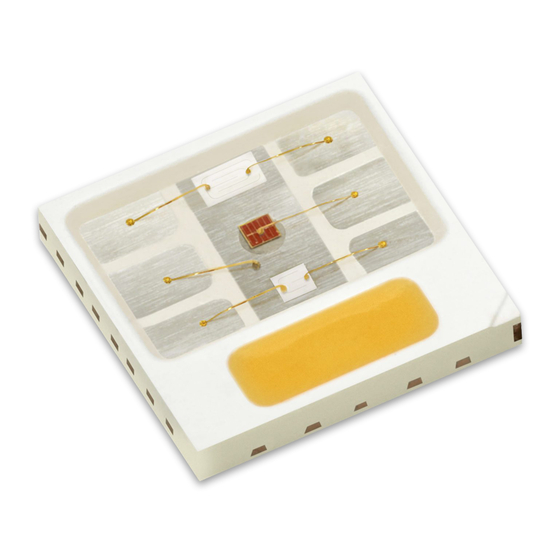

    1.1 Description The LUXEON MultiColor Module 2.5W emitter (Figure 1) is a plastic molded lead-frame package with four anode pads, four cathode pads, and an electrically active thermal pad. The center thermal pad (pin 9) is electrically connected to the anode of Red LED (pin 3), as shown in Figure 1 below.

  • Page 4: Cleaning

    Section 6. 1.5 Electrical Isolation The minimum creepage distance within the LUXEON MultiColor Module 2.5W is 0.5mm between pads of different electrical potential. It is important to keep sufficient distance between the LUXEON emitter package and any other objects or neighboring LUXEON emitters to prevent any accidental shorts.

  • Page 5: Solder Mask

    Figure 3b. Overall dimensions of example PCB footprint design for LUXEON MultiColor Module 2.5W. Dimensions in mm. Figure 3c. Recommended PCB solder pad layout for LUXEON MultiColor Module 2.5W. 2.2 Solder Mask A stable white solder mask finish (typically a polymer compound with inert reflective filler) with high reflectivity in the visible spectrum will typically meet most application needs.

  • Page 6: Minimum Spacing

    Lumileds recommends lead-free solder for the LUXEON emitter. Good results have been obtained with lead-free solders such as SAC 305 solder paste from Alpha Metals (SAC305-CVP390-M20 type 3). However, since application environments vary widely, Lumileds recommends that customers perform their own solder paste evaluation in order to ensure it is suitable for the targeted application.

  • Page 7: Pick And Place

    Note that pick and place nozzles are customer specific and are typically machined to fit specific pick and place tools. Lumileds advises customer to take the following general pick and place guidelines into account: The nozzle tip should be clean and free of any particles since it may interact with the top surface of the silicone encapsulation of the LUXEON emitter package.

  • Page 8: Electrostatic Discharge Protection

    Table 2. JEDEC Moisture sensitivity levels for LUXEON MultiColor Module 2.5W. FLOOR LIFE sOAK REqUIREMENTs sTANdARd LEvEL TIME CONdITIONs TIME CONdITIONs 168 Hours ≤30°C / 60% RH 192 Hours +5/-0 30°C / 60% RH AB244 LUXEON MultiColor Module 2.5W Application Brief 20200518 ©2020 Lumileds Holding B.V. All rights reserved.

  • Page 9: Packaging Considerations-Chemical Compatibility

    Table 3 provides a list of commonly used chemicals that should be avoided as they may react with the silicone material. Note that Lumileds does not warrant that this list is exhaustive since it is impossible to determine all chemicals that may affect LED performance.
  • Page 10 LUXEON emitter surface or leaving excessive secondary solder flux residue onto the PCB when operating LEDs in an air tight enclosure or poorly ventilated enclosure. AB244 LUXEON MultiColor Module 2.5W Application Brief 20200518 ©2020 Lumileds Holding B.V. All rights reserved.
  • Page 11 Companies developing automotive, mobile, IoT and illumination lighting applications need a partner who can collaborate with them to push the boundaries of light. With over 100 years of inventions and industry firsts, Lumileds is a global lighting solutions company that helps customers around the world deliver differentiated solutions to gain and maintain a competitive edge. As the inventor of Xenon technology, a pioneer in halogen lighting and the leader in high performance LEDs, Lumileds builds innovation, quality and reliability into its technology, products and every customer engagement.
