Summary of Contents for Simshine SimCam Ango

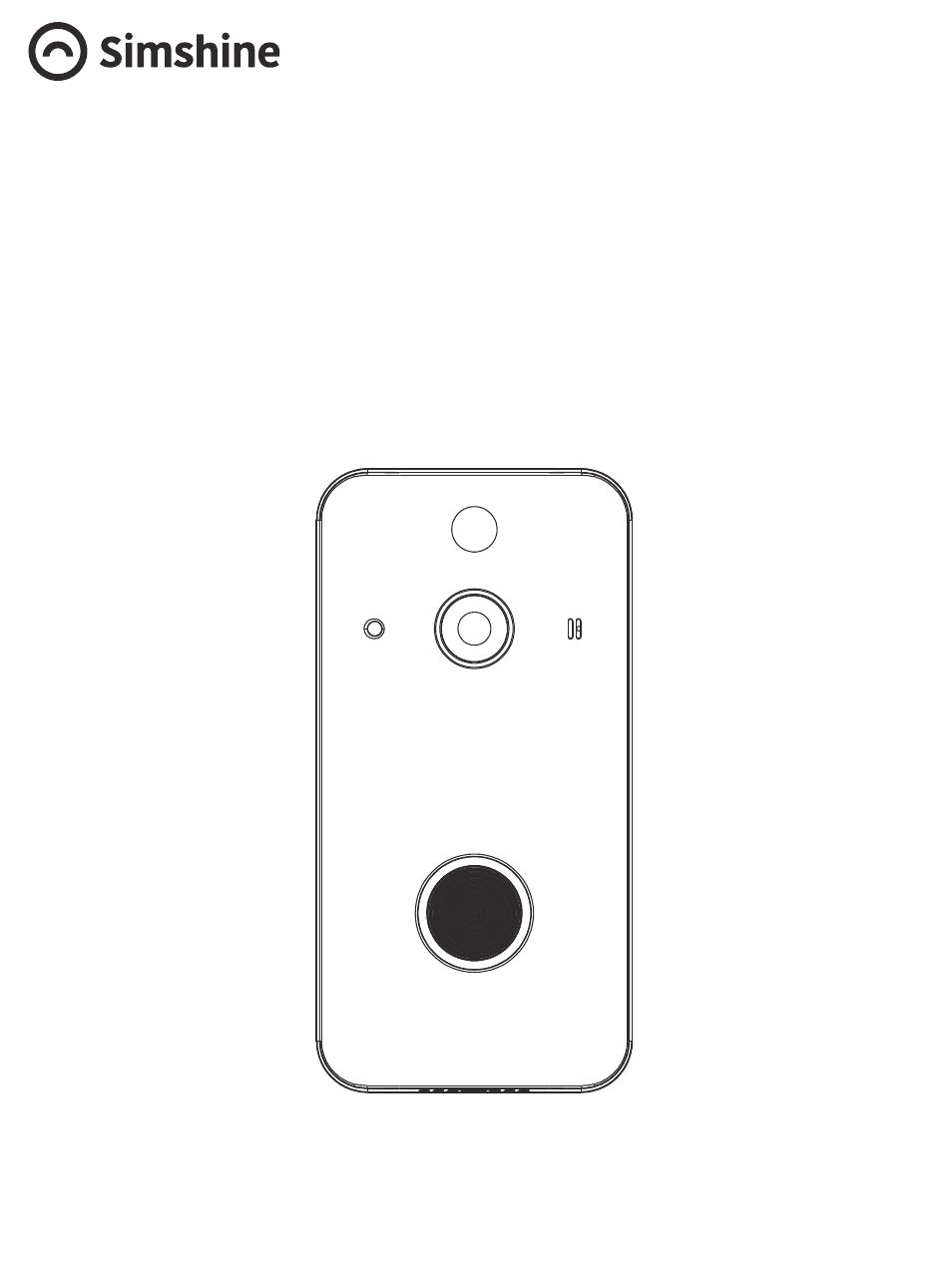

- Page 1 SimCam Ango User Guide Last updated: 2020-07-11...
- Page 2 There are more detailed in-APP instructions that can guide you through every step of the way. Need help from our support team? Email to : support@simshine.ai https://www.simshine.ai/support EN Download the latest user manual at the above address. FR Téléchargez le dernier manuel d'utilisation à l'adresse ci-dessus.
-
Page 3: Table Of Contents
Contents Step 1 - Learn about the product............04 Step 2 - Setup the WiFi.................07 Step 3 - Install the SimCam Ango............09 Additional information................13 Warranty....................16... -
Page 4: Step 1 - Learn About The Product
Key features and benefits • Person detection - SimCam Ango can alert you to a human visitors without false alerts. • Long battery life - If battery powered, the doorbell stays in sleep mode when not activated. - Page 5 What’s in the box SimCam Ango Mounting bracket x 1 doorbell x 1 Security screw x 1 Mounting screw x 2 Wall screw x 4 Wall anchor x 4 SimCam Ango 3M adhesive tape x 1 USB charging cable x 1...

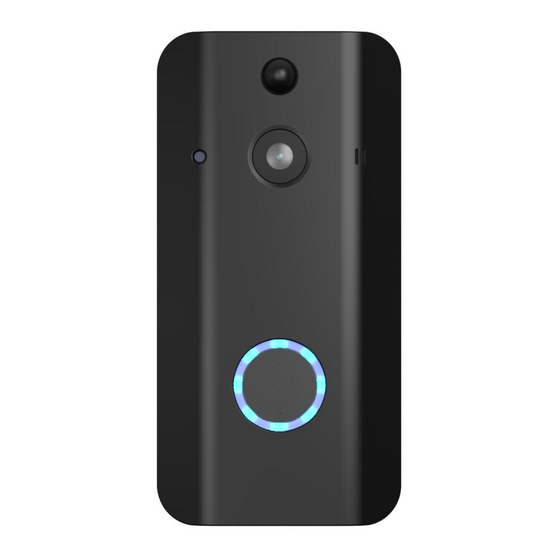

- Page 6 Meet the SimCam Ango doorbell PIR sensor Infrared LED Microphone Lens Light sensor Doorbell button Status LED Microspeaker Reset button USB charging port SD card slot Battery...
-
Page 7: Step 2 - Setup The Wifi
Step 2 - Setup the WiFi Download and install the SimHome APP 1. Please search for “SimHome” in Google Play or IOS App Store to download the SimHome APP to your mobile device. 2. Tap “register account” to create an account with your email address. - Page 8 1. Sign in to your account. 2. Add a new device to the APP. 3. Select the SimCam Ango as the device. 4. Please follow the in-APP instruction to setup the WiFi. Tip: WiFi name and password accepts English characters, symbols and numbers.
-
Page 9: Step 3 - Install The Simcam Ango
Step 3 - Install the SimCam Ango Find a location for the doorbell After setup, move the doorbell to the front door and check the video on the APP. If the video is not working well, please try moving the WiFi router closer to the doorbell for better WiFi connection. - Page 10 1. The recommended install height is 4.6-5.2 feet above the ground. Check the live stream on the APP to select the best height to install the doorbell. 2. Screw the mounting bracket to a flat surface with wall screws. Use wall anchors to hold the screws if the wall is made of brick or stone.
- Page 11 If hardwiring to existing doorbell (8-24V) Connect AC wires to the mounting screws on the bracket. Hardwiring vs battery power 1. Hardwiring can trigger alerts and recording faster. 2. Battery can keep the doorbell working during a power outage and activate the doorbell immediately when a motion is detected.
- Page 12 4. Slide the doorbell into the mounting bracket. Secure the doorbell with the security screw at the bottom of the backplate. Congratulations! You are all set!
-
Page 13: Additional Information
Additional information - Status LED guide Doorbell Status LED color Product status Blinking red The doorbell is powered on. Blinking blue The doorbell is attempting to connect to WiFi. Blinking blue The doorbell disconnect from WiFi. Solid blue for 3 seconds The doorbell is connected to WiFi. - Page 14 Additional information - More help in the APP You can find more settings of the APP and the troubleshootings by tapping the hamburger menu on the top left.
- Page 15 Additional information - More help in the APP You can find the settings of each device and an in-APP instruction by tapping the 3 dots icon above the live stream.
-
Page 16: Warranty
Warranty Period. The warranty period for a Simshine product is twelve (12) months from the day when the product is delivered to the first end-user. During the Warranty... - Page 17 Any non-Simshine branded products, such as batteries, SD card and cables, even if sold or shipped with Simshine products; Products marked as “Sample” or “Not for Sale”, or sold “AS IS”; This warranty cannot be transferred from the original end-user to others;...
- Page 18 If the problem cannot be identified or resolved through remote assistance or software updates, you will be requested to return the product to the address provided by Simshine or authorized resellers. Simshine will examine the returned product to identify the...
- Page 19 Warranty card If you want to claim warranty service, please fill out the warranty card below and return it with the product. Customer’s Name:___________________________________ Email:_____________________________________________ Phone:____________________________________________ Address:___________________________________________ __________________________________________________ Dealer’s name:______________________________________ Dealer’s address:____________________________________ __________________________________________________ Date of purchase(DD/MM/YY):__________________________ Order number:______________________________________ Serial Number:______________________________________ Type of services: Repair Exchange...
- Page 20 Simshine Intelligent Technology Co.,Ltd. www.simshine.ai Made in China...
