Summary of Contents for Hamilton/Buhl AMPLITUDE AMP37
- Page 1 Never-Ending Learning Innovation...
-
Page 2: Table Of Contents

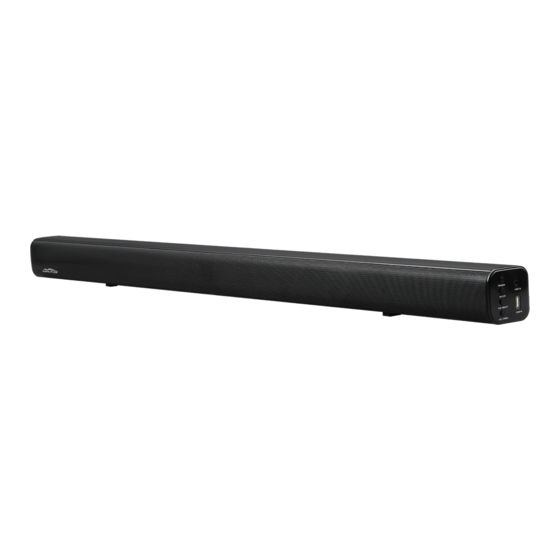

Thank you for choosing Amplitude™ Slim, Powerful 2 0 Channel Bluetooth Soundbar ® from HamiltonBuhl Please read this instruction manual carefully before operating and ® retain for future use Table of Contents Warnings and Precautions In the Box Control Buttons, Side View, Back View and Remote Control Using the Remote Control Preset EQ and Mode Indicators Placement of the Unit... -
Page 3: In The Box
In the Box 1 Amplitude™ Soundbar 5 Optical Cable What’s In The Box? 2 Remote Control 6 Instruction Manual 3 Power Adapter 7 3 5mm to 3 5mm Line In Cable 4 AUX IN Cable Optical Cable Box Contents 1. GS-SB201L Soundbar 6. -
Page 5: Preset Eq And Mode Indicators
Movie Mode Voice Mode ADJ (Music) Mode LED Mode Indicators:... -
Page 6: Using The Aux In Cable
Use the AUX Stereo Audio Cable (included) to connect the TV’s stereo AUX (L/R) audio output socket. Connect the audio output cable of the soundbar via the ‘AUX’ input sockets of the unit. Then press MODE on the remote control (Rem.18) or press the Mode button on the unit to scroll to the AUX IN function. -
Page 7: Using The Optical Input
Using the Optical Input You will need: An audio source with an Optical Audio Output and a Digital Optical Audio cable (included). Connect the Digital Optical Audio cable to the optical output on the audio source and to the Optical Input on the soundbar. Press the POWER button on the sound bar or POWER button directly on the remote control (Ref.10) to switch on the unit. -
Page 8: Connecting To The Mains Supply
Instructions Guide Connecting to the Mains Supply Ensure that the power supply voltage is in the voltage of 100V~240V. This unit is designed to use adapter. Connecting the unit to any other power source may cause damage to the unit. Unwind the mains cable to its full length. -
Page 10: Troubleshooting
Problem Possible Causes/Solutions Ensure power is connected – press the “On/Off” button on the remote No Power control Check that the power adaptor is properly connected to power outlet Ensure audio cables are properly connected with correct input mode selected via remote control No Sound Try using an alternative cable for connecting to your TV Check that the unit is out of standby mode... -
Page 11: Quick Installation Guide
Quick System Installation Guide Quick System Installation Guide Quick System Installation Guide Place the paper guide on the wall Verify with a level gauge that the inclination Place the paper guide on the wall Verify with a level gauge that the inclination where you want to hang the soundbar. -
Page 12: Warranty
Never-Ending Learning Innovation...
