- Page 1 User Manual Lithium Battery Pack Soluna 4K Pack DLG Energy (Shanghai) Co.,Ltd. Sep.2020 | Revision A.1 1 / 26...
- Page 2 About this manual This manual describes how to install the DLG Energy (Shanghai) Co.,Ltd of Soluna 4K Pack. Read this manual before you attempt to install the product, and follow the instructions throughout the installation process. If you are uncertain about any of the requirements, recommendations, or safety procedures described in this manual, contact DLG Energy (Shanghai) Co.,Ltd immediately for advice and clarification.
-
Page 3: Table Of Contents
3.8 CAN communication wiring ................21 3.8.1. Single battery unit ................... 21 3.8.2 The battery units are connected in parallel ............22 4.How to operate Soluna 4K Pack ................. 23 5. Electrical connection ..................24 6 Troubleshooting ....................25 7 Contact us......................26... -
Page 4: Safety Precautions
1 Safety precautions 1.1 Warning Signs Warning signs are used to warn you about the conditions that may cause severe injury or damage to the device. They instruct you to exercise caution to prevent danger. The following table describes the warning signs used in this manual. Sign Description This battery pack contains high voltage which can cause electric shock... -
Page 5: Risks Of Explosion
Failure to observe the precautions described in this section can cause serious injury to persons or damage to property, observe the following precautions 1.2.1 Risks of explosion ● Do not subject the battery pack to strong impacts. ● Do not crush or puncture the battery pack. ●... -
Page 6: Response To Emergency Situations
● Do not use cleaning solvents to clean the battery pack. 1.4 Response to emergency situations The Soluna 4k Pack battery pack comprises multiple batteries that are designed to prevent hazards resulting from failures. However, DLG cannot guarantee their absolute safety. -
Page 7: Wet Batteries
If the battery catches fire, it will produce noxious and poisonous gases. Do not approach. 1.4.7 Wet batteries If the battery pack is wet or submerged in water, do not try to access it. Contact DLG or your distributor for technical assistance. 1.4.8 Damaged batteries Damaged batteries are dangerous and must be handled with extreme caution. -
Page 8: Product Introduction

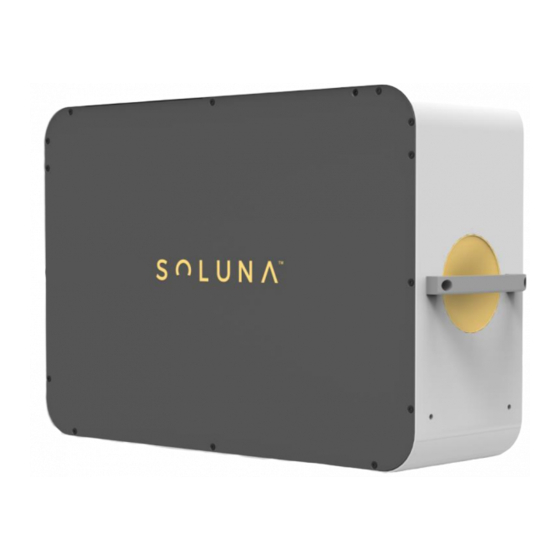

2 Product Introduction Soluna 4K Pack is an LiFePO4 lithium battery product with BMS (battery management system). It is a battery module with CAN communication, under-voltage, over-voltage, over-current, over-temperature, under-temperature protection functions. It has the characteristics of high energy density, long life, safety and reliability and so on, and It is your trustworthy green environmental product. -
Page 9: Outline Dimensions
2.3 Outline Dimensions Height Depth Width Figure 2.1 outline dimension Width Depth Height Weight 9 / 26... -
Page 10: Technical Data
2.4 Technical data Physical Characteristics Width 205 mm Depth 678 mm Height 436 mm Weight 60 kg Electrical Characteristics Battery type Total Energy Capacity 3.84 kWh Usable Energy Capacity 3.07 kWh Battery Capacity (Nominal) 75 Ah Nominal Voltage 51.2 V Usable Voltage Range 48~57.6 V Charge Current (Recommended) - Page 11 System Configuration Module parallel 1~4 Parallel Operating Conditions Installation Location Indoor -10~45 ℃ Operating Temperature 15~30 ℃ Operating Temperature (Recommended) -20~60 ℃ Storage Temperature Humidity 5%~95% Altitude Max. 2,000 m Cooling Strategy Natural Convection Reliability & Certification Cell：UL1642 Certificates Battery Module:IEC62619 / UL1973 Transportation UN38.3 Ingress Rating...
-
Page 12: Appearance
2.5 Appearance ① ② ③ ④ ⑤ ⑥ Figure 2.2 Appearance Number Name Remark ① Logo ② Handle ③ Push button switch of BMS power supply ④ The product label ⑤ Battery capacity & warning indicator light ⑥ Product S/N 12 / 26... -
Page 13: Wring Port
2.6 Wring port User can see the wiring port of Soluna 4K Pack after the cover plat is opened, please find the following pictures for details. ① ② ③ ④ ⑦ ⑥ ⑤ ⑧ ⑨ ⑩ Figure 2.3 wiring port... -
Page 14: Can Communication Interface Definition (Can1&Can2)
2.7 CAN communication interface definition (CAN1&CAN2) Figure 2.4 CAN interface definition —— —— —— —— —— —— CANH CANL Remark CAN1 is used for BMS parameters monitoring CAN2 is used for inverter communication 14 / 26... -
Page 15: Led Lights Definition
Remark: Please see below information for Indicator running state. a. Push button switch------The white light will be on after pressing the button. b. Warning indicator------light is always on if there is no alarm, the light will blink if the Soluna 4K Pack has any warning. 15 / 26... -
Page 16: Installation
The battery pack is too heavy for one to carry. Make sure that two or more persons are available。 3.1Unpacking the package 3.1.1 Please find the following picture for the appearance of Soluna 4K Pack packing box. 3.1.2 The user will find the user manual & Parts list after opening the packing box. -
Page 17: Packing Lists
The following table lists the numbers of each item included. If anything is damaged or missing, contact DLG or your distributor. Item Name Remark (pcs) Soluna 4K Pack Fuse Remote port connector Hexagon wrench User manual 3.3 Installation materials These installation materials shall be prepared by installers. -
Page 18: Installation Location
3.4 Installation location We recommend that Soluna 4K Pack is used in Soluna Home energy storage systems, if not, please Make sure that the installation location meets the following conditions: ● The building is designed to withstand earthquakes. ● The location is far away from the sea, to avoid salt water and humidity. -
Page 19: Installation Tools
3.5 Installation tools The following tools are required to install the battery pack: Item Photo Name Phillips-screwdriver bit Hexagon wrench Network crimper Wire cutters Wire stripper Tape measure Remark: Use properly insulated tools to prevent accidental electric shock or short circuits. 19 / 26... -
Page 20: Safety Gear
Name Insulated gloves Safety goggles Safety shoes 3.7 Wiring specification In order to standardize the wiring specification of Soluna 4K Pack, the following requirements are required for connecting wires of Soluna 4K Pack. Battery wire Communication cable Remote wire It is recommended to use It is recommended to use It is recommended to use 0.5... -
Page 21: Can Communication Wiring
3.8 CAN communication wiring 3.8.1. Single battery unit CAN2 is connected to inverter with communication cable. ② ③ ② ① To inverter ④ ⑤ ① ⑤ ④ ③ Figure 3.3 CAN communication wiring Number Name Remark Communication cable ① PIN4 is CANH ②③... -
Page 22: The Battery Units Are Connected In Parallel
Unit1:CAN2 is connected to Unit2:CAN2 with communication cable Unit2:CAN2 is connected to inverter with communication cable To inverter ① ② ⑦ ⑥ Figure 3.4 CAN communication wiring Number Name Remark ① Unit 1of Soluna 4K Pack ② Unit 2 of Soluna 4K Pack 22 / 26... -
Page 23: How To Operate Soluna 4K Pack
4.2 Way 2 Install a switch between PIN1 and PIN2 on the Remote port, when the switch on, the Soluna 4K Pack will start to work within 25 seconds, it will stopped to output if there has no communications after 5 minutes ①... -
Page 24: Electrical Connection
5. Electrical connection There are 2 ways to connect the battery with the inverter. The details as follows. 5.1 Single unit is connected to the inverter, Please find the following diagram for details. 24 / 26... - Page 25 5.2 Multiple units are connected to the inverter, Please find the following diagram for details. 25 / 26...
-
Page 26: Troubleshooting
We hope that this user manual has clearly demonstrated the product. If you still have any doubts or something not clear about it in the specifications, feel free contact to us please. we will do our best to support you! DLG Energy (Shanghai) Co.,Ltd Add: No.3492 Jinqian Road, Shanghai, China 201406 Tel: +86-21-57475835 Email: sales@solunabattery.com...
