Summary of Contents for Apollo Essence
- Page 1 Essence™ Spa Operating Manual (Manual Part Number 990-101) 450 Main Street, Somerset, WI 54025 Phone: 715.247.5625 Fax: 715.247.3424 http://www.apollobath.com...
- Page 2 The information in this manual is subject to change without notice. In no event will Apollo Corporation be liable for technical or editorial omissions made herein; nor for direct, special, incidental, or consequential damages resulting from the furnishing, performance, or use of this material.
- Page 3 Product Identification Product: Model: Essence™ Spa Serial Number: Optional Features Remedy® UV Infection Protection™ System For Assistance Contact: Apollo Corporation 450 Main St Somerset, WI 54025 +1 (715) 247-5625 Fax +1 (715) 247-3424 techservice@apollobath.com http://www.apollobath.com...
-
Page 4: Table Of Contents
Forward ..............................5 Critical Warnings .............................6 Key Features - Whirlpool .........................7 Key Features - Air Spa ..........................8 Prior to Operating the Essence™ Spa .......................9 Proper Training ....................................9 Door Safety ..................................... 9 Check proper operation of the mixing valve ..........................9 Transportation and Storage Conditions ............................. -
Page 5: Forward
The primary purpose of this operating manual is to introduce the key information and features of the Essence™ Spa, present the benefits of this system, explain and define the critical warnings and precautions that are required to be taken with the bathing system, and define the pre-bath, bathing and post-bath procedures. -
Page 6: Critical Warnings
This Operating Manual provides you with the information required for normal day to day bathing. To realize the maximum benefits from your bathing system, it is important that you read and understand all of the information in this manual. If you do not understand or require additional information, please contact Apollo Corporation at +1 (715) 247-5625. -
Page 7: Key Features - Whirlpool

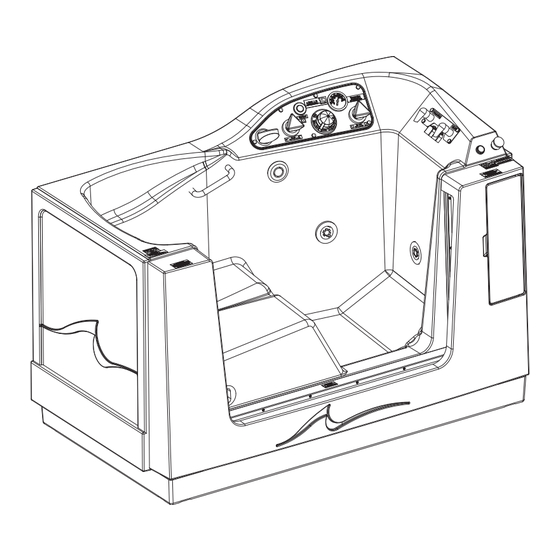

Essence™ Spa Operating Manual Key Features - Whirlpool Dashboard (See Figure 1) Solutions Dispensing Panel Drain Pushbutton/Over ow Drain (See Figure 2) Door Open/Close Button Grab Bar Emergency Button Remedy® Indicators Solutions/Disinfecting Access Panel (See Figure 3) Whirlpool Jets Removable Panels... -
Page 8: Key Features - Air Spa
Essence™ Spa Operating Manual Key Features - Air Spa Dashboard (See Figure 1) Solutions Dispensing Panel Drain Pushbutton/Over ow Drain (See Figure 2) Door Open/Close Button Grab Bar Emergency Button Solutions/Disinfecting Access Panel (See Figure 3) Air Spa Jets Removable Panels... -
Page 9: Prior To Operating The Essence™ Spa
It will also provide the required safety awareness that must be observed with this and all bathing equipment. Door Safety The Essence™ Spa has a unique powered door system that provides a large door with a low entry height to provide an easy entry. This door can also sense obstructions or resistance during operation to protect the resident from injury. -
Page 10: Remedy® Uv Infection Protection™ System (If Applicable)
Remedy® UV Infection Protection™ System. Cleaning & Disinfecting Your Essence™ Spa has a built-in cleaning and disinfecting system and arrived with an Essence™ Spa Intro Pack which includes Turbo Clean™ Pre-disinfectant Chelating Detergent and Cid-A-L™ II Quaternary Disinfectant. -
Page 11: Emergency Resident Removal
Essence™ Spa Operating Manual Emergency Resident Removal In a life threatening situation all attention must focus on resident welfare, removal from the tub, and acquiring medical assistance. 1. Pull the Emergency Button out and the door will open. Allow the water to drain to the floor. -
Page 12: Electrical Failure
Essence™ Spa Operating Manual Electrical Failure If electrical power has failed, the door must be opened manually. 1. Turn off Whirlpool/Blower (if on). 2. Turn off Tub Fill Valve (if on). 3. Open the Tub Drain. 4. When the tub is drained completely, open the Disinfectant Panel Door and push the Emergency Release Button to release air from the Door Seal. -
Page 13: Essence™ Spa - Whirlpool
Essence™ Spa Operating Manual Essence™ Spa - Whirlpool Whirlpool Control Panel Color Coded Thermometer Whirlpool On/O Button Hand Held Shower Wand Shower Valve Thermostatic Mixing Valve Tub Fill Valve Note: A safe bathing temperature is 95-105°F (35- Whirlpool Operation 41°C). Water must be entering the system in order for Note: Water level should be above the upper jets prior the temperature gauge to read accurately. -
Page 14: Bathing Process - Whirlpool
Essence™ Spa Operating Manual Bathing Process - Whirlpool The Essence™ Spa is meant to be a relaxing, pleasurable experience. By following these steps, you will receive the most possible enjoyment out of the bathing process. 1. Press the door operating button to lower the door. -
Page 15: Whirlpool Cleaning Procedure
Chelating Detergent. Turbo Clean™ is used after each bath to remove residue, bacteria and gross soils. Your Essence™ Spa is calibrated to dilute Turbo Clean™ at the mixture stipulated by the manufacturer’s instructions. Use of other cleaners is not recommended and could compromise the overall process. -
Page 16: Whirlpool Disinfecting Procedure
Your Essence™ Spa arrived with an Essence™ Spa Intro Pack which includes Cid-A-L™ II Quaternary Disinfectant. Cid-A-L™ II is used after each cleaning to effectively kill bath-borne bacteria, fungi and viruses. Your Essence™ Spa is calibrated to dilute Cid-A-L™ II at the mixture stipulated by the manufacturer’s instructions. Use of other disinfectants is not recommended and could compromise the overall process. -
Page 17: Essence™ Spa - Air
Essence™ Spa Operating Manual Essence™ Spa - Air Air Spa Control Panel Color Coded Thermometer Air Spa Touchpad NOTICE - TURN ON BLOWER FIRST BEFORE DS SYSTEM FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN DAMAGE TO INTERNAL PARTS Hand Held Shower Wand... -
Page 18: Bathing Process - Air Spa
Essence™ Spa Operating Manual Bathing Process - Air Spa The Essence™ Spa is meant to be a relaxing, pleasurable experience. By following these steps, you will receive the most possible enjoyment out of the bathing process. 1. Press the door operating button to lower the door. -
Page 19: Air Spa Cleaning Procedure
Chelating Detergent. Turbo Clean™ is used after each bath to remove residue, bacteria and gross soils. Your Essence™ Spa is calibrated to dilute Turbo Clean™ at the mixture stipulated by the manufacturer’s instructions. Use of other cleaners is not recommended and could compromise the overall process. -
Page 20: Air Spa Disinfecting Procedure
Your Essence™ Spa arrived with an Essence™ Spa Intro Pack which includes Cid-A-L™ II Quaternary Disinfectant. Cid-A-L™ II is used after each cleaning to effectively kill bath-borne bacteria, fungi and viruses. Your Essence™ Spa is calibrated to dilute Cid-A-L™ II at the mixture stipulated by the manufacturer’s instructions. Use of other disinfectants is not recommended and could compromise the overall process. -
Page 21: Trouble-Shooting Guide
If it does not work it is the bulb, if the bulb does work then it is the ballast. Call Apollo for parts. Caution, do not touch the glass portion of the UV bulbs. - Page 22 This switch should be in the down position to operate the door properly. Call Apollo for advice. Door is making clicking...
