Techly IDATA-HDMI-MX22 User Manual

Safety Notice:
1. Do not hot plug when it is working.
2. Use DC12V power supply only. Make sure specification
matched if using adapters not supplied by factor y.
Introduction

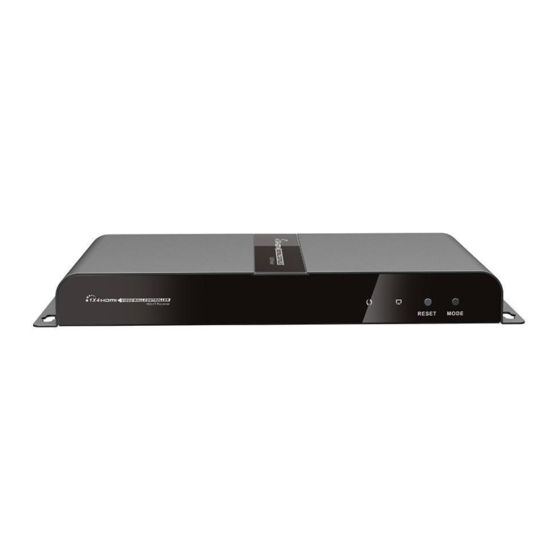

This is a HDbitT HDMI 2×2 configuration video wall controller,
with 1 HDbitT input(RJ45 port), and 4 HDMI outputs. It based on
advanced HDbitT technology, by working together with a HDbitT
transmitter,easy to divide and extend the input video to four same
size displays, and the extension distance is up to 120 meters via
CAT6. The supported resolution is up to full HD 1080p@60Hz.
Features
1. Applied advanced HDbitT HD digital AV transmission protocol.
2. Extend HDMI signal up to 120 via CAT6 by working together with a
HDbitT transmitter.
3. With 4 HDMI outputs,divides the input video into four ports
and extend to four same size displays.
4. Resolution supported is up to 1080p@60Hz.
5. Support video wall screen mode and clone screen mode.
6. With 3.5mm audio output port, access to audio equipment easily
7. Plug and play.
8. Wall-mountable design, convenient for installation.
Support IR pass back function .
9.
Package contents
video wall controller unit ×1pcs
power adapter（12V2A）×1pcs
3.5mm jack audio cables ×1pcs
user manual ×1pcs
Installation requirements
1. Source device:
Source device with HDMI output, such as set-top boxes, computers,
video recorders,etc.
2. Transmitter unit:
Transmitter unit that compliant to HDbitT transport protocol
3. Display device:
Display device with HDMI input, such as television, projector,
HD display,etc.
4. UTP/STP cat5/5e/6 cable, follow standard IEEE-568B
Network cable length support between ever y connection:
CAT5 80m
CAT5e 100m
CAT6 120m.

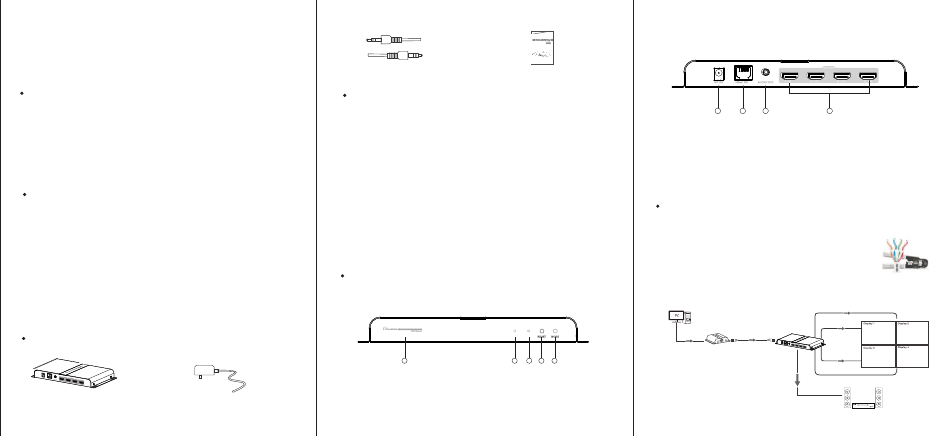

Panel description
1.Front panel：
1 2
① Power indicator
④ Reset button
② Data transmission indicator
⑤ Mode button
③ Connection indicator
2、 Back panel：
① DC input（DC12V）
② HDbitT signal input
③ Audio output
④ HDMI signal outputs
Connection and Operation
1. Network cable
Follow the standard of IEEE-568B:
1- Orange/white
4- Blue
7- Brown/white
2. Connection drawing
HDMI IN
3 4 5
1 2 3 4
2- Orange 3- Green/white
5- Blue/white 6- Green
8- Brown
HDMI OUT
HDMI OUT
CAT5/5e/6
HDMI OUT
HDMI OUT
Audio OUT
