Page 2: Table Of Contents
1. Basic information of products ..............3 2. Product Introduction ................3 3. Product Interface Description ..............4 4. MINE-M4 Bonding Router User-Guide ............ 6 5. MINE-M4 Firmware Upgrade ..............11 6. Remote Assistance ................. 12 7. Bonding Server Building ................ 13... -

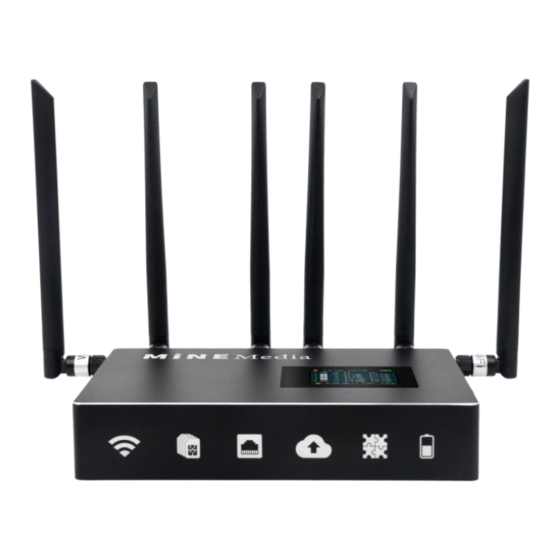

Page 3: Basic Information Of Products
In addition, it can also provide 2.4 g and 5.8 g band wireless networks, which can provide networks for more devices and meet the needs of more users. MINE-M4 bonding router has built-in four 4G sim modules, which support the SIM cards ... -
Page 4: Product Interface Description
Antenna 2.4G/5.8G WiFi 2.4G/5.8G WiFi Antenna Antenna 1: 2.4 g and 5.8 G WiFi of the MINE-M4 bonding router share these two antennas. Antenna 2: it represents the 4G antenna of SIM card 1. Antenna 3: it represents the 4G antenna of SIM card 2. - Page 5 SIM card slot. 12. On/off: the on/off key of the MINE-M4 bonding router 13. S: charging indicator, plug-in DC 12V/3A adapter. When the power supply is not fully charged, the indicator will always be on, and when it is fully charged, the indicator will go out.
-
Page 6: Mine-M4 Bonding Router User-Guide
SHENZHEN MINE TECHNOLOGY CO., LTD P: 86-755-83271813 E: info@minemedia.tv 4. MINE-M4 Bonding Router User-Guide Insert 1-4 4G sim cards, and insert the chip into the 4 g card slot with one end down, as shown in the following figure. Connect 4 piece of 4G antennas and 2 piece of WiFi antennas (note: 4G antenna has a pin, while WiFi antenna has no pin) Note: Wrong insertion of WiFi antenna will result in the 4g card not being recognized. - Page 7 Ensure that LAN 1 or LAN 2 port of MINE-M4 is connected to your PC directly or through a switch, and keep your PC IP and MINE-M4 in the same LAN, that is, your PC IP should be 192.168.11. * for example, your device is enabled with 192.168.11.5 or DHCP.
- Page 8 SHENZHEN MINE TECHNOLOGY CO., LTD P: 86-755-83271813 E: info@minemedia.tv When all settled, the SIM card still can’t get network, maybe you need to setup the APN per your SIM operator, please check the System Info-4G/WAN Status, then click the [Refresh] to check all the 4G modem info.
- Page 9 SHENZHEN MINE TECHNOLOGY CO., LTD P: 86-755-83271813 E: info@minemedia.tv Live Bonding Video Switcher| Bonding Encoder| Video Encoder Bonding Router| Network Bonding Streaming Media Distribution System www.minemedia.tv...
- Page 10 SHENZHEN MINE TECHNOLOGY CO., LTD P: 86-755-83271813 E: info@minemedia.tv Modify IP of the MINE-M4 bonding router: enter the web control interface of MINE-M4 bonding router, and click [Network Setting] -[LAN Setting]-Modify [IP Address]-[Save]. Modify 2.4G/WiFi settings: enter the web control interface of the MINE-M4 bonding router, and click [Wireless Setting] -[2.4G Basic Setting]-Check [Enable Wireless]-...
-
Page 11: Mine-M4 Firmware Upgrade
[system Admin] -[Firmware Upgrade] -Select Firmware, then click [Upload], finally click [Upgrade], the system will automatically upgrade and restart the MINE-M4 bonding router, and the whole upgrade process will take about 3 minutes. Live Bonding Video Switcher| Bonding Encoder| Video Encoder Bonding Router| Network Bonding Streaming Media Distribution System www.minemedia.tv... -
Page 12: Remote Assistance
Note: Please download the latest firmware from our website, http://www.minemedia.tv/downloads/ 6. Remote Assistance Login MINE-M4 Web Management Background (Open Browser, enter IP: 192.168.11.1, password: admin [Home], check [MAC Address], provide with below picture screenshot to our engineer. Live Bonding Video Switcher| Bonding Encoder| Video Encoder Bonding Router| Network Bonding Streaming Media Distribution System www.minemedia.tv... -
Page 13: Bonding Server Building
SHENZHEN MINE TECHNOLOGY CO., LTD P: 86-755-83271813 E: info@minemedia.tv [Advance Setting]-[Remote Help]-[Enable Remote Help]-[Save] Note: Make sure the MINE-M4 bonding router opens the Remote Help function successfully and contact MINE Technical Support to check the device online remotely. 7. Bonding Server Building Bonding server selection: Amazon, Ali-cloud or build yourself.
