BJ ICONIC LIGHTS Instalation Manual

For bmw x5 f25

Advertisement

INSTALATION MANUAL
Thank you for purchasing BJ Iconic lights,
Here you will find a detailed manual with links to photos how to uninstall current angel lights from
headlights (in case you have a model with Angel eyes), and how to install new BJ Iconic lights. If you
need help, contact us and our technician will be at your disposal.
Team BIMMER Jakes
Instalation BJ Iconic lights for the following model:

Type of vehicle:

Pre-facelift

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICONIC LIGHTS and is the answer not in the manual?

Questions and answers

Summary of Contents for BJ ICONIC LIGHTS

  • Page 1 Here you will find a detailed manual with links to photos how to uninstall current angel lights from headlights (in case you have a model with Angel eyes), and how to install new BJ Iconic lights. If you need help, contact us and our technician will be at your disposal.

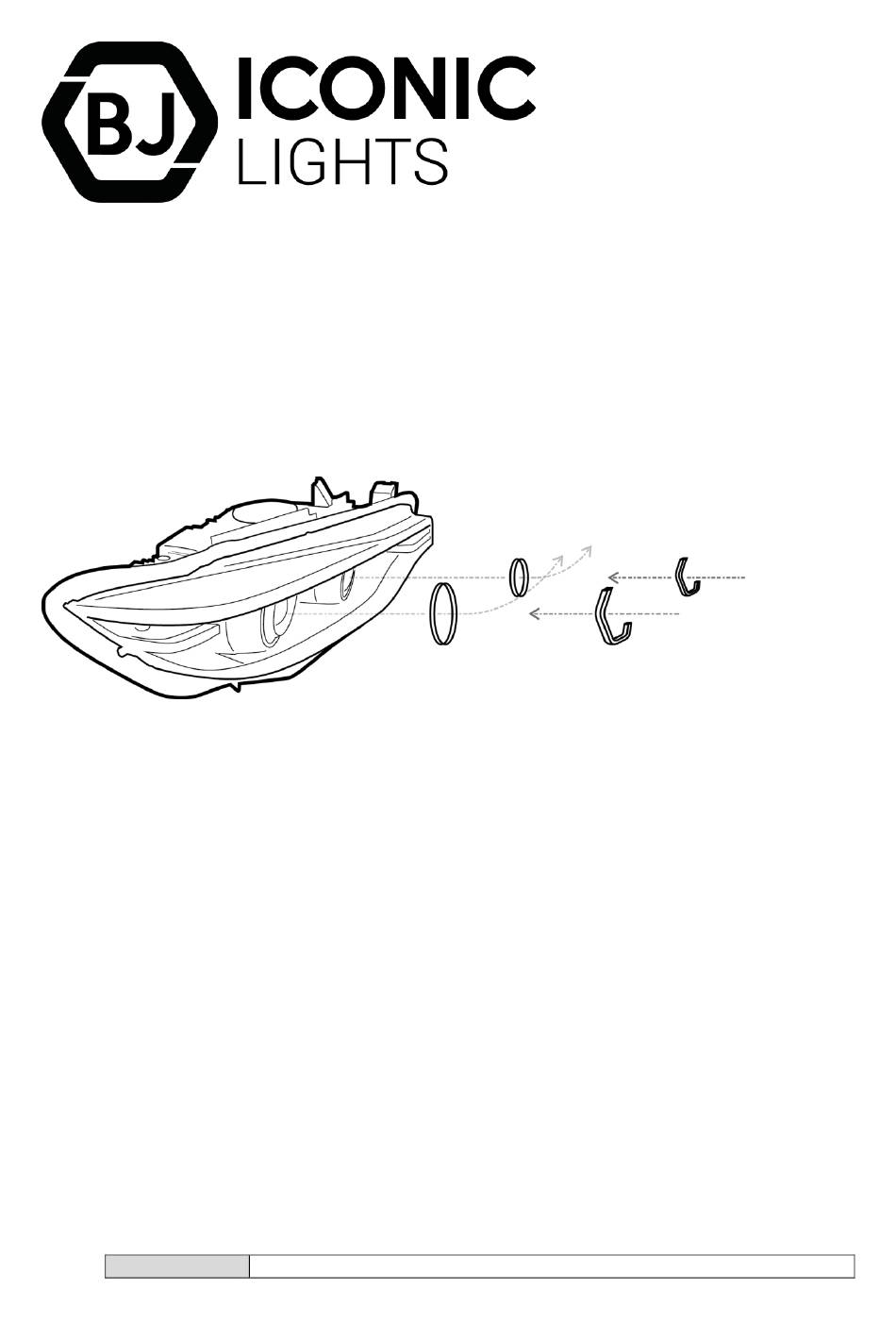

  • Page 2 Type of Xenon headlight: Model series: BMW X5 F25 1) Remove headlights cover Uninstall the original lights angel eyes. When installing the original lights, care should be taken to exert greater force due to the fragility of the components. First, remove the smaller ring by lifting the upper lever, see Figure n.
  • Page 3 Figure no. 2 - Uninstall larger ring 3) Installing Bimmer Iconic lights is similar to uninstalling the original rings. When installing a small ring, insert the foot into the grooves in the bottom of the light, see Fig. 3. Next, fix the light with the groove located on the back of the ring. Put the groove on the protrusion located under the main light.
  • Page 4 Fig no. 4 - Attaching a small ring to the top of the light 4) Adding a larger ring The Bimmer Iconic lights work the same way as a small ring. Insert the ring foot into the grooves provided at the bottom of the light cover and slide the groove on the back of the Iconic lights onto the protrusion below the headlight.
  • Page 5 Conection for F25 Xenon Pre- Facelift by H8...
