Summary of Contents for Solarico UniQube

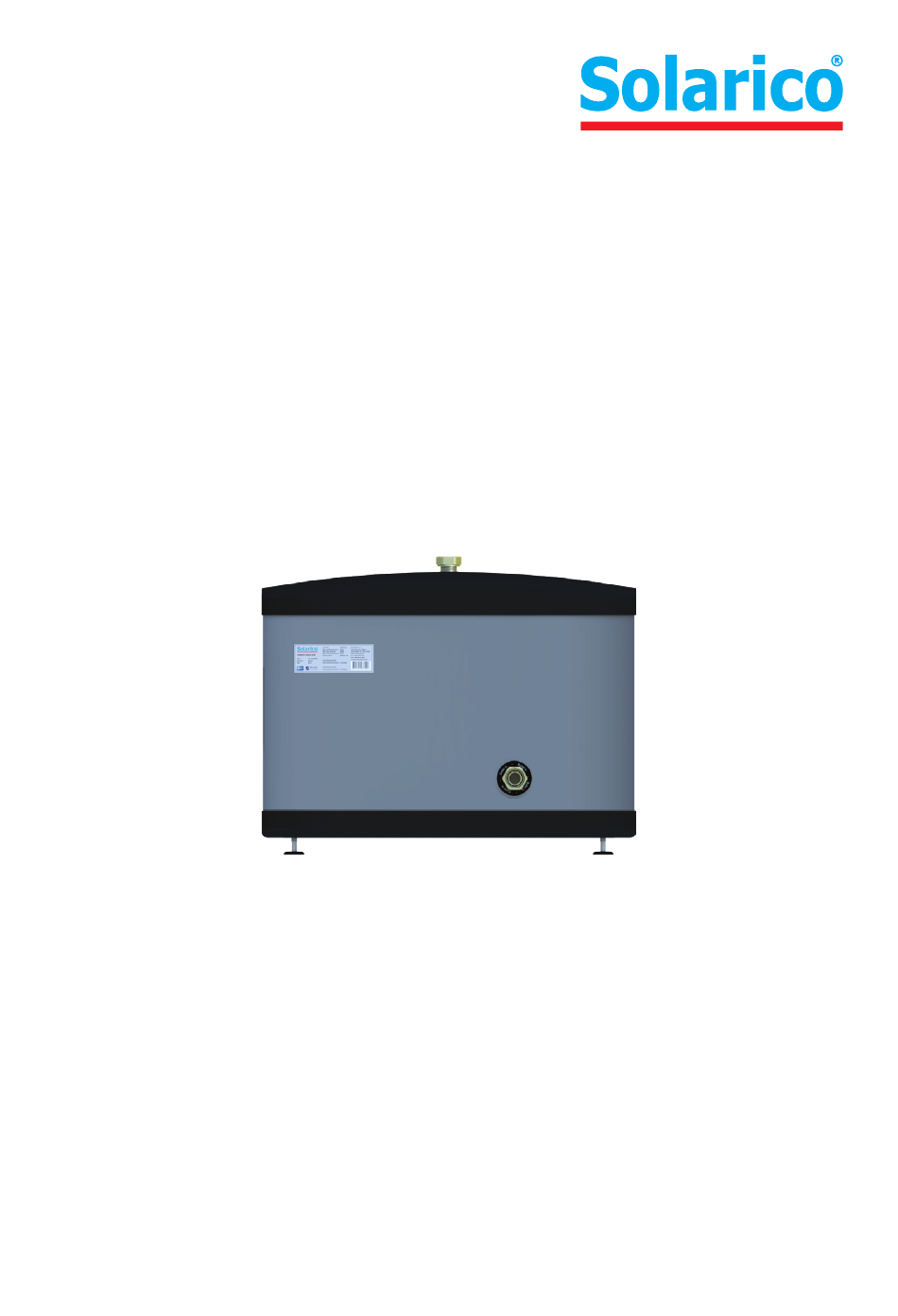

- Page 1 UniQube Drain Back Reservoir Installation and Operation Manual Read and understand this manual before installation, commisioning and operation...
- Page 2 Safety Instructions WARNINGS The manufacturer of drain back reservoir does not warrant against frost damage! Operate the installation with glycol Collectors and all solar thermal piping system must be installed inclined. Collectors must be inclined by minimum of 2% (2cm per m), pipes must be inclined by minimum of 5% (5cm per m) When product is in operating mode, some parts of it may reach temperature over 51°C.
- Page 3 Drain Back reservoir must be installed in position above the floor, in vertical position standing on its legs Minimum Height of installing a Drain Back reservoir in combinationwith UniQube tanks, measured from the lowest point of its legs to the ground is 650mm L ≥...
- Page 4 1.1 Installation Diagrams Solar Panels (empty) 5 cm/m (5%) 2 cm/m (2%) inclination inclination Idle 5 cm/m (5%) inclination UniQube Drain Back Solar System Fluid level once complete lling with separate reservoir Pump O UniQube Drain Back reservoir In Operation...
- Page 5 + Pipes Volume + Volume of the Connectors, Valves, Pump and Fittings • Collector volume is declared in the technical data of the UniPlate collectors • Heat Exchanger volume is declared in the technical data of the UniQube hot water tanks •...
- Page 6 3. Pressure increasing In order to avoid vacuum appearance during the pump operating, it is important to add 0,5 bars to the filled system. There are two ways to do it: Pressure increasing with draining and charging of previously determined volume of fluid 1.
- Page 7 UniQube Drain Back Tank you use, and how many UniPlate collectors you install. • Up to 5 UniPlate collectors is allowed to be installed in a system with UniQube Drain Back 310 liter tank •...
- Page 8 GUARANTEE Type Serial number Guarantee Manufacturing date Signature Euroterm d.o.o. Lece Koteski 50 Industrial area - Biljana, Prilep, Republic of North Macedonia tel. +389 48 419 415 fax +389 48 422 981 e-mail: info@solarico.eu...
