Summary of Contents for Müller LIGNODUR terrafina refugio 2.0

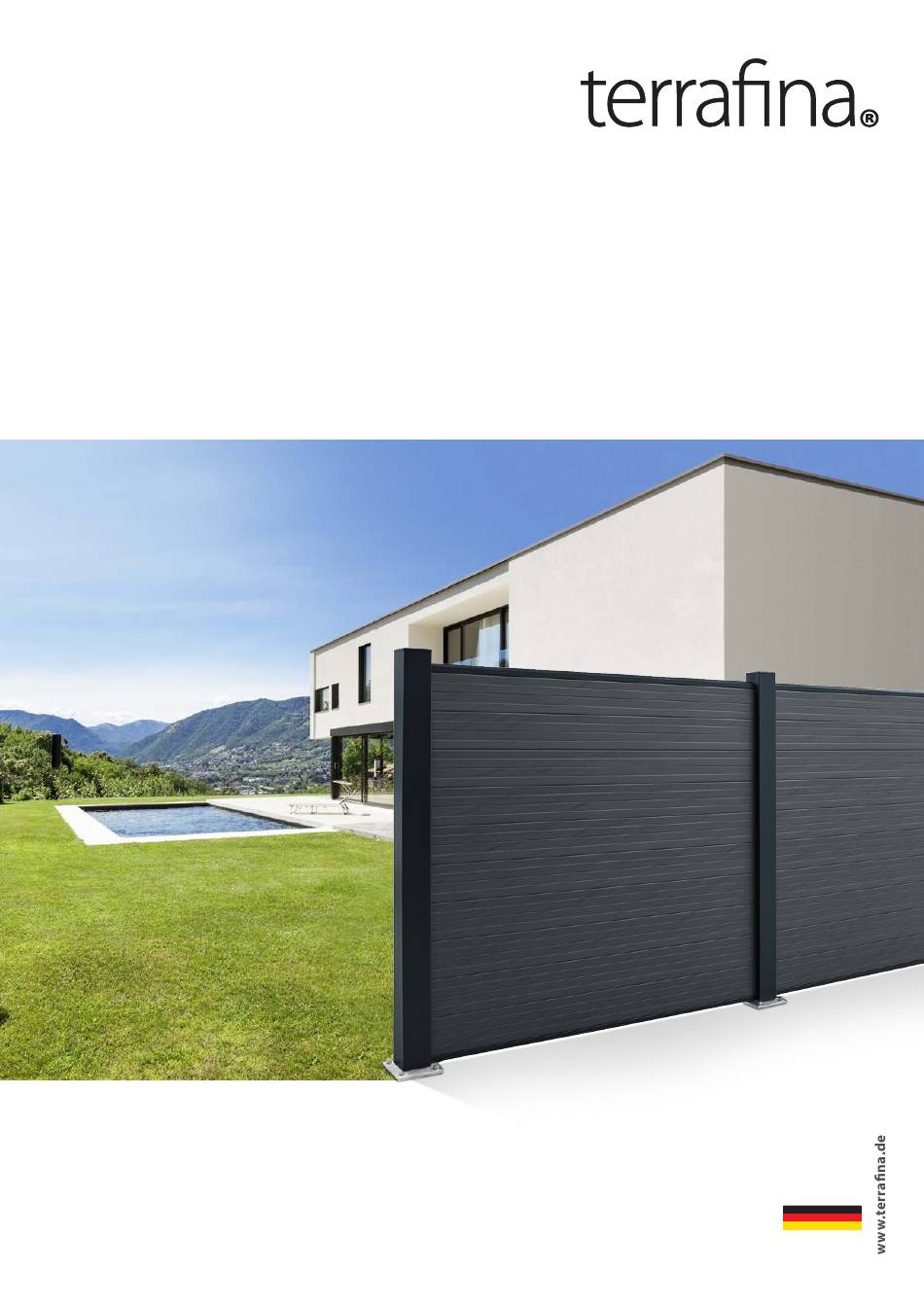

- Page 1 LIGNODUR Screen refugio 2.0 Assembly instructions LIGNODUR terrafina® Screen refugio 2.0 M A D E I N GERMANY...
- Page 2 1. Basic information Target group for these installation instructions These assembly instructions are aimed at landscape gardeners, carpenters, joiners and experienced DIY enthusiasts. Safety obligations when using these installation instructions Please read the complete assembly instructions carefully before starting the installation. Each person who installs LIGNODUR terrafina®...
- Page 3 LIGNODUR Screen refugio 2.0 2. System components Smooth panel Frame profile Post supports for concreting – 45 x 184 mm 45 x 40 mm corner post coverage: 174 mm coverage: 30 mm length: 1730 mm length: 1730 mm overall height: 958 mm height above foundation: 650 mm depth of concrete:...
- Page 4 3. Assembly of the post supports 3.1 Post supports for screwing on In order to position the post supports, define the distance using a frame profile and the two spacers. For this purpose, the posts must be attached to the post supports. In doing so, ensure a uniform alignment. The spacers should be removed again before mounting the other panels.
- Page 5 LIGNODUR Screen refugio 2.0 3.4 Alignment of the post supports, Positioning and distancing 3.5 Filling in the concrete / Vertically oriented assembly The position of the post supports 3.5.1 3.5.2 is fixed with the help of lateral struts (not supplied) and com- pacted using concrete.
- Page 6 4. Assembly of the posts 4.2 Inserting the posts 4.2.1 4.2.2 If necessary, the posts are cut to the desired length and pushed onto the post supports. 4.3 Fixing the posts 4.3.1 4.3.2 4.3.3 The post is supported on the post supports with self-tapping screws 4x30 mm. In this case, ensure the vertical position of the post.
- Page 7 LIGNODUR Screen refugio 2.0 5. Assembly of frame profiles and panels 5.1 Checking the clearance Always start the assembly process with a frame profile. In order that the profiles in the post have suffici- ent splay to compensate for chan- ges in length, the frame profiles and panels must be 55 mm longer (max.) than the clearance between...
- Page 8 6. 6. Wall assembly 6.1 Wall assembly The post is attached to the post support for wall mounting and screwed through the joint in the wall in the top third section. In order to ensure the assembly of the post cap, you need a suitable spacer (about 3 mm).
