Summary of Contents for Sulaco A.I.R Works DUST COMMANDER

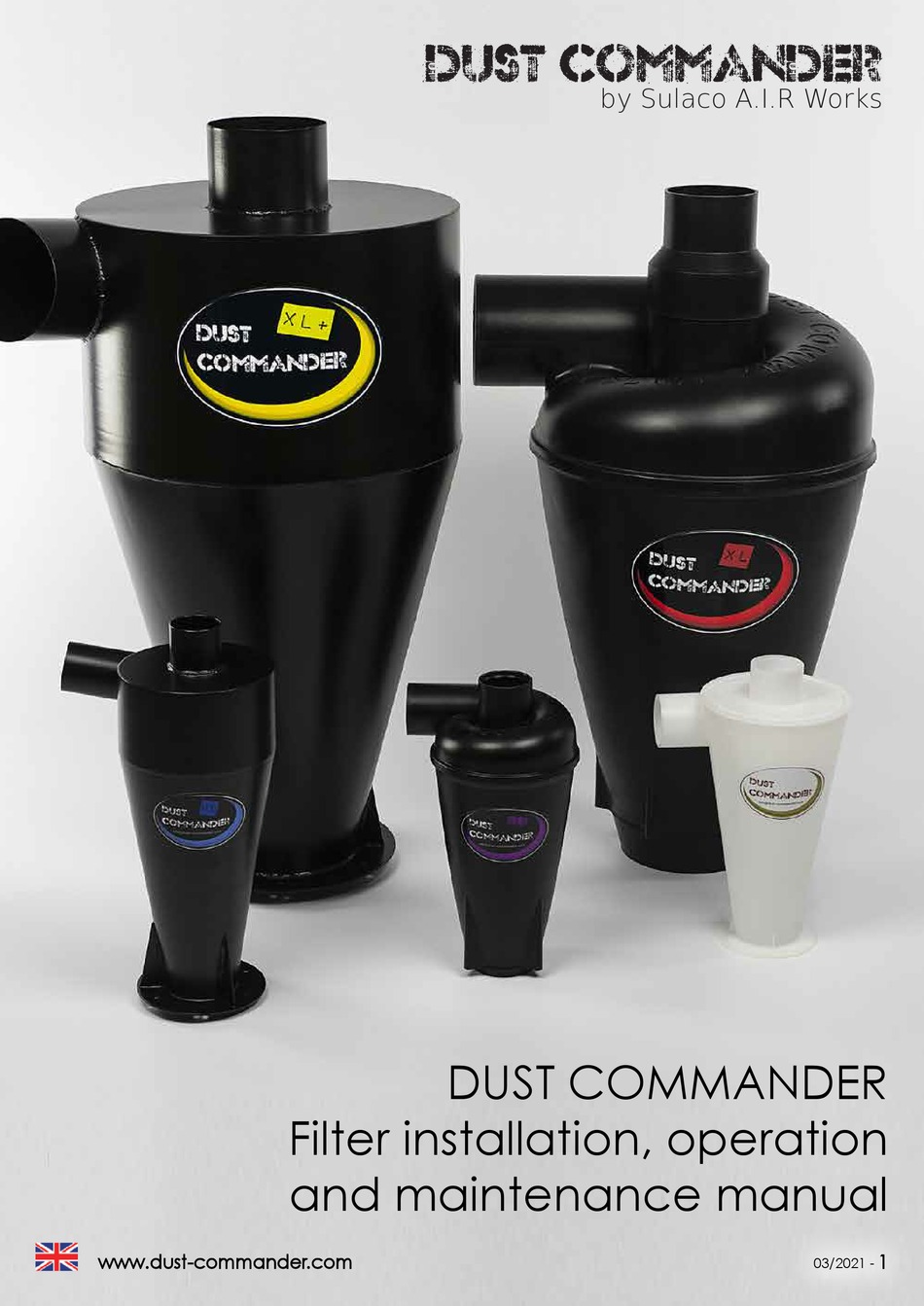

- Page 1 DUST COMMANDER by Sulaco A.I.R Works DUST COMMANDER Filter installation, operation and maintenance manual www.dust-commander.com www.dust-commander.com 03/2021 -...
- Page 2 We thank you for putting your trust in us by buying the DUST COMMANDER cyclonic filter. We thank you for putting your trust in us by buying the DUST COMMANDER cyclonic filter. Caution: Read this manual and the safety instructions in their entirety before installing and using the filter.
- Page 3 Installation: Installation: A / Selecting the receptacle A / Selecting the receptacle The DUST COMMANDER must be attached to an airtight receptacle that will collect filtered particles. This receptacle must be 100% sealed. The slightest leakage of air will cause a pressure loss that will affect the efficiency of the filter.
- Page 4 B / Drilling the container B / Drilling the container for filter / cover assembly. You will need to drill holes in the cover to assemble the filter. An adhesive cutting guide (Cutting Template) is provided for this purpose. Peel the adhesive paper from the cutting guide and attach it to the cover as shown in the diagram opposite: The holes for the screws are of a standard diameter of 5mm to 6mm depending on the model, easily made with a drill.
- Page 5 Safety instructions Safety instructions • No smoking or burning materials such as cigarettes, matches or ashes should be vacuumed when using the cyclone separator filter. • No liquid or combustible gas should be vacuumed with the cyclonic separator filter. • Do not use this cyclonic filter near any flammable material (gasoline, alcohol, solvents, paints, natural gas, hydrogen, coal dust, magnesium dust, grain dust, aluminium dust, sugar / flour dust or gunpowder).
- Page 6 DUST COMMANDER CLC DUST COMMANDER DLX ESD DUST COMMANDER DLX ESD Cutting template Cutting template Cutting template PRINT TO SCALE DUST COMMANDER HD 4 5cm Cutting template 03/2021 -...
- Page 7 6xØ5 Ø181 ® DUST COMMANDER Cutting template PRINT TO SCALE for more informations visit our website : www.dust-commander.com...
- Page 8 6xØ6 Ø164 ® DUST COMMANDER Cutting template PRINT TO SCALE for more informations visit our website : www.dust-commander.com...
