Summary of Contents for Applied Research and Technology ISO-8U

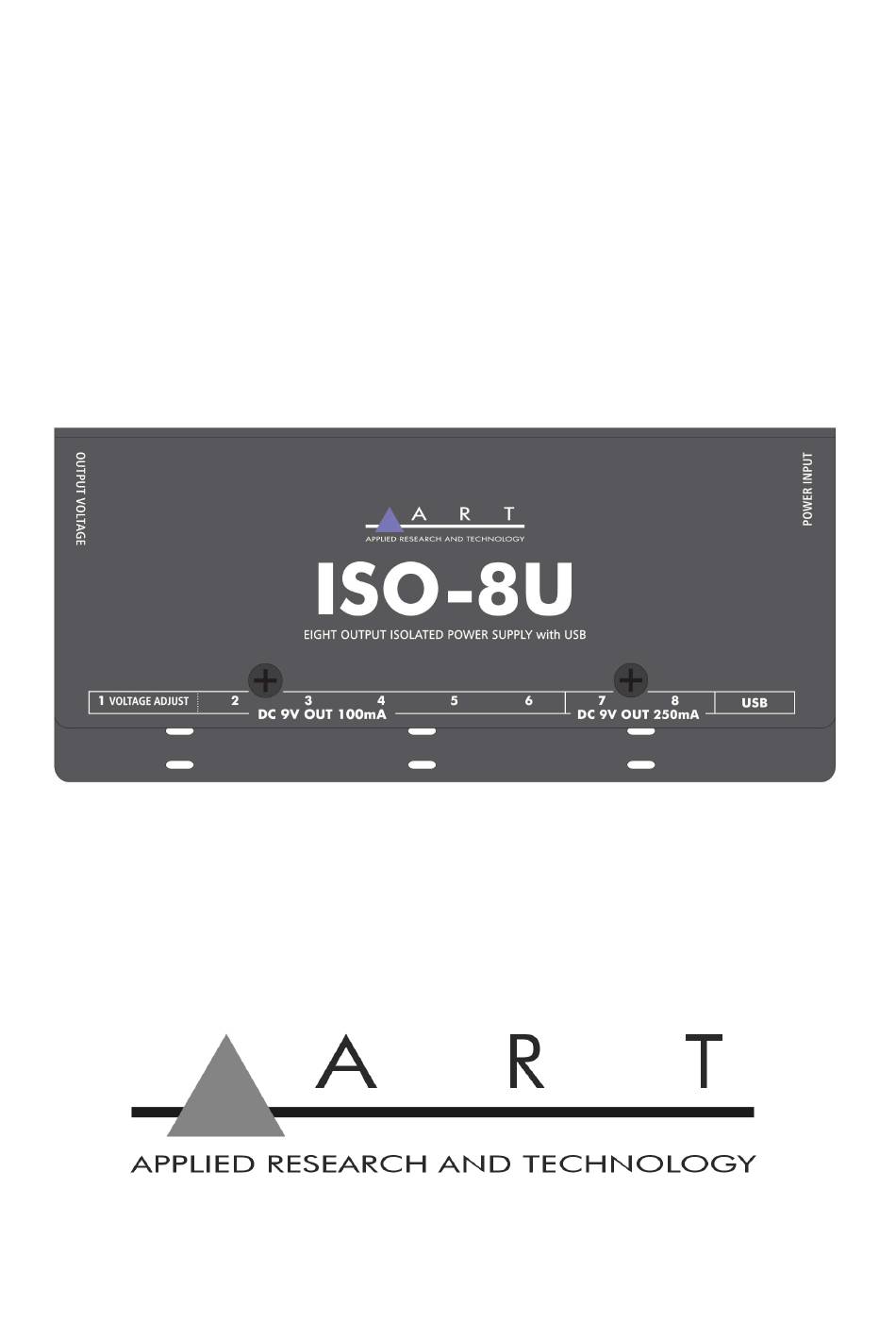

- Page 1 ISO - 8U Eight Output Isolated Power Supply With USB User's Manual...
- Page 2 IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears alerts you to the presence of uninsulated dangerous voltage inside the enclosure-voltage that may be sufficient to constitute a risk of shock. This symbol, whenever it appears, alerts you to important operating and maintenance instructions in the accompanying literature.
- Page 3 INTRODUCTION Thank you for purchasing Applied Research and Technology’s ISO-8U.Two high power outputs can provide 250mA. All other outputs are capable of providing up to 100mA. There is one variable voltage output to simulate worn batteries. Each output is individually current limited and short circuit protected.
- Page 4 INSTALLATION and OPERATION...
-
Page 5: Status Leds
4-9v. Then the user can vary the voltage from the pot on the unit face. APPLICATIONS The ART ISO-8U is designed so that it can be mounted on a pedal base using Velcro. The front and sides are recessed to protect the cables and controls. -
Page 6: Cable Choices
Cable Choices Cable Description 6 - 24-inch straight barrel 5.1mm to 5.1mm barrel 2 - 24-inch Rt. Angle 5.1mm to 5.1mm barrel 1 - Battery clip to 5.1mm barrel 1 - Polarity reversal 5.1mm to 5.1mm barrel 1 - “Y” cable (5.1mm) barrel 1 - 3.5mm barrel to 5.1mm barrel... - Page 7 The first step in using the ART ISO-8U to power your device, would be to make sure that pedal device you want to use can be powered by a dc supply. The range on the ART ISO-8U is 9 or 12vdc or combining to outputs to achieve 18 or 24vdc, remember that there is a max current draw on each output.
-
Page 8: Warranty Information
Applied Research and Technology will provide warranty and service for this unit in accordance with the following warrants: Applied Research and Technology, (A R T) warrants to the original purchaser that this product and the components thereof will be free from defects in workmanship and materials for a period of three years from the date of purchase. - Page 9 This warranty gives you specific rights and you may have other rights, which vary from state to state. For units purchased outside the United States, an authorized distributor of Applied Research and Technology will provide service Fill in the following information for your reference:...
- Page 10 SERVICE The following information is provided in the unlikely event that your unit requires service. Be sure that the unit is the cause of the problem. Check to make sure the unit has power, all cables are connected correctly, and the cables themselves are in working condition. You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration.
-
Page 11: Specifications
SPECIFICATIONS Input Connections 12v/2.5A Universal Output Connections 2.1mm x 5.1mm barrel connection, negative tip Max output current Out1-6: 100mA Out 7, 8: 250mA Cables provided 6-24-inch 5.1mm to 5.1mm 2-24-inch Rt. Angle 5.1mm to 5.1mm 1-Battery clip to 5.1mm 1-Polarity reverse 5.1mm to 5.1mm 1-“Y"... - Page 12 E-mail: support@artproaudio.com © 2020 Applied Research & Technology / Yorkville Sound ISO-8U ISO-5004-102...
