Sanuvox S1000 Installer's Instructions

Voc controller for smoking room
Hide thumbs Also See for S1000:
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual
These instructions are for a smoking room of a maximum of 9600 cu ft

Box contains:

•
Une (1) S1000 VOC unit that includes:
o One (1) "J" lamp UVC/UVV with yellow tips (part LMPHGXJ160-8 6" exposed)
o One (1) "J" lamp all UV-V with blue tips (part LMPHXJ160)
o Two (2) Multi voltage ballasts (part BST120/277SHS) and two lamp-holding brackets.
o One (1) Relay (part MSCELC16) connected to the all UVV lamp
o Twenty (20) feet of wire that can be inserted in BX shield.
o One (1) VOC controller (part MSC1A) factory's pre-set
•
Four (4) replacement pre-filters (part MSCFTR2)
Controller
LAMP INSTALLATION (this step can be done later)
1. Open the front door on the S1000 unit.
2. Open the door access to the aluminum box by removing the two
wing nuts. (see picture aside)
3. Remove the BLUE END CAP (LMPHXJ160) lamp from packaging:
Use the gloves provided.
4. Identify the ballast showing LMPHXJ160, follow the wire and insert
it in the appropriate clamp, using the foam tape supplied.
5. Holding the cap with one hand, plug the white connector tightly
on the lamp
6. Repeat the operation with the second lamp (LMPHGXJ160-8).
7. Put the cover back on with the 2 wingnuts.

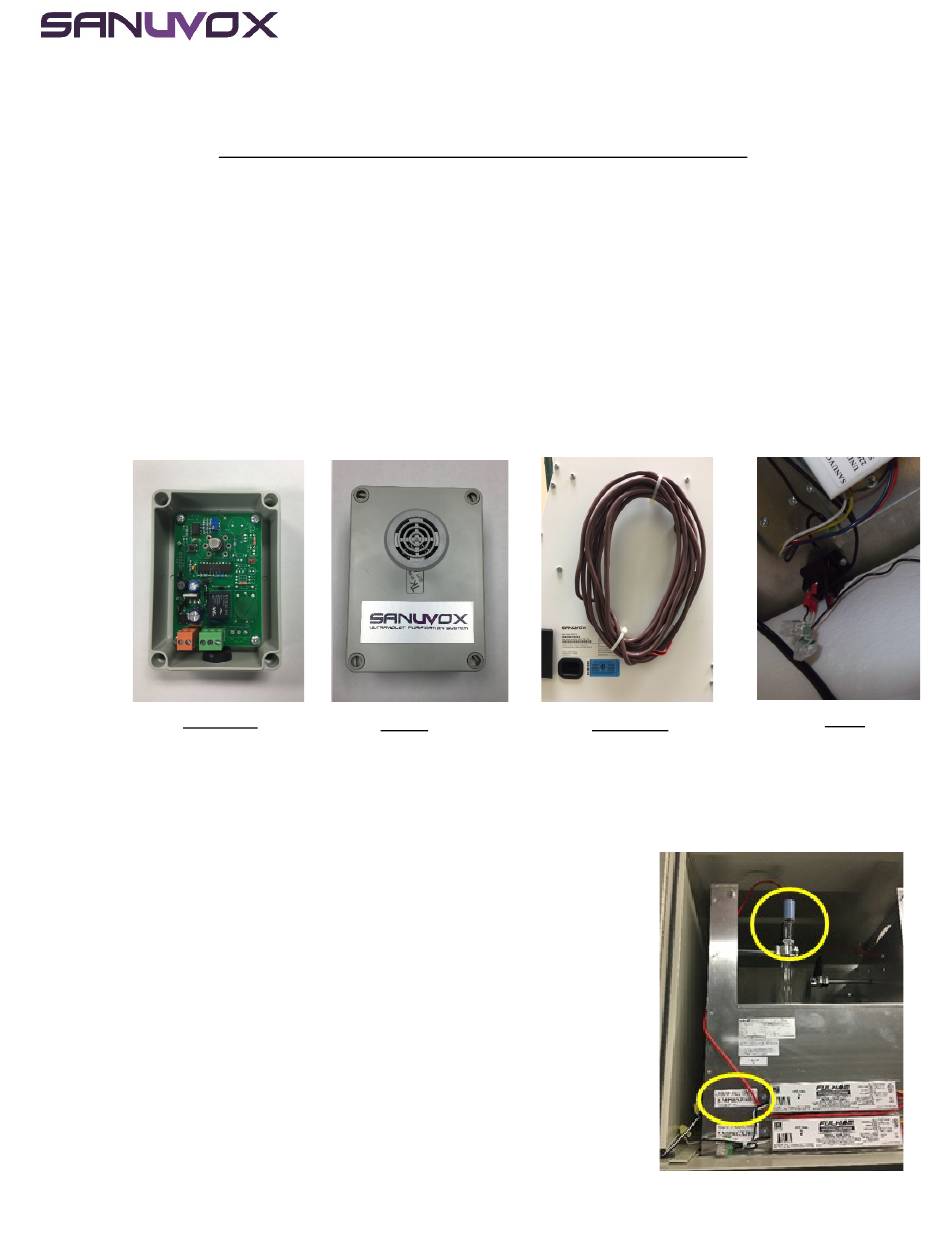

S1000 VOC FOR SMOKING ROOM
INSTALLER INSTRUCTIONS
Casing
Wiring 20'
Relay

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Sanuvox S1000

Summary of Contents for Sanuvox S1000

  • Page 1 Casing Wiring 20’ LAMP INSTALLATION (this step can be done later) 1. Open the front door on the S1000 unit. 2. Open the door access to the aluminum box by removing the two wing nuts. (see picture aside) 3. Remove the BLUE END CAP (LMPHXJ160) lamp from packaging: Use the gloves provided.
  • Page 2 The VOC controller should be installed on the ceiling where the smoke tends to accumulate. The S1000 unit comes with 20ft of wire (Fig3) to link the controller box to the unit. If 20 ft not long enough, you can replace it with BX wiring with 3 wires.
  • Page 3 VOC CONTROLLER Remove the cover. setting screw: triggers at Connect the 3 wires from the controller to the same color 3.4 V DC wiring coming from the unit. Use the wire connectors Sensor Positive included. The detector is factory set a t 3.0 V DC; If you wish to set up a Neutral higher sensitivity, please proceed as follow.
  • Page 4 • The S1000 VOC unit runs continuously, so its regular lamp purifies the air constantly. This dual zone lamp (UVC / UVV) is enough when there are only one or two smokers.
