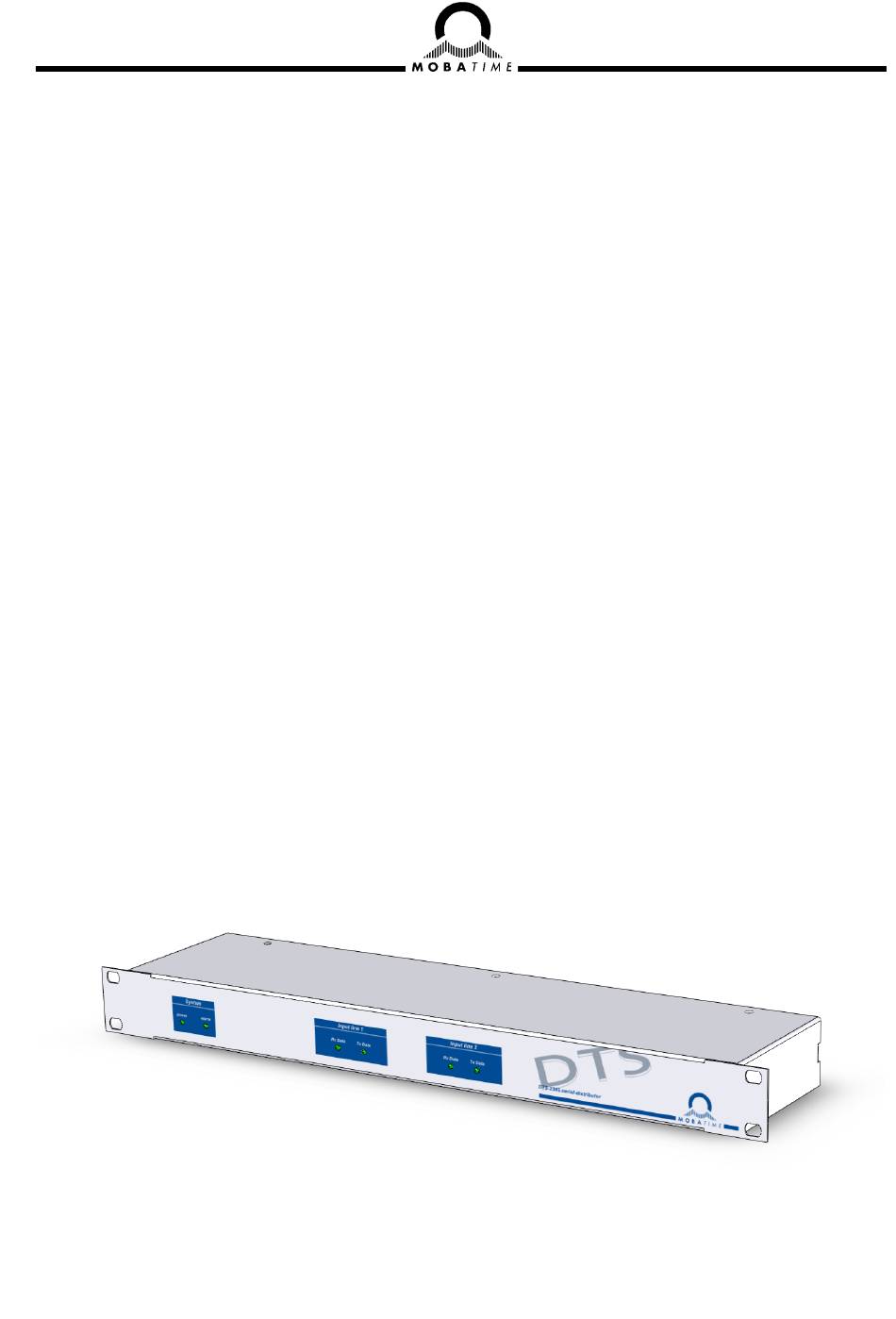

- Page 1 MOUNTING AND INSTRUCTION MANUAL DTS 2345.serial-distributor Please read these instructions carefully before installation. © MOBATIME BE-800859.00...
- Page 2 Product Certification STANDARDS The DTS 2345.serial-distributor was developed and produced in accordance with the EU Guidelines 2004 / 108 / EC 96 / 48 / EC References to the Instruction Manual 1. The information in this Instruction Manual can be changed at any time without notice. The cur- rent version is available for download at www.mobatime.com.
-
Page 3: Table Of Contents
Display............................8 Configuration, displays and connections.......................9 Status displays on front..........................9 Inputs – back of case ..........................9 Outputs – back of case ...........................10 Supply ..............................10 Alarm relay ..............................10 Technical data .............................11 Dimensions of serial distributor ........................12 © MOBATIME 3 / 16 800859.00... -
Page 4: Safety
Additional information for the use of the device. Intended use The DTS 2345.serial-distributor is a signal distributor for the RS232 and RS422 inter- faces. The distributor comprises two identical lines, each of which connects their input interface to three output interfaces. -
Page 5: Observe Operating Safety
To avoid any operating problems, keep the device away from moisture and avoid dust, heat, and direct sunlight. Do not use the device outdoors. The DTS 2345.serial-distributor is designed for a 19“ rack and should only be oper- ated installed in a 19“ rack. -
Page 6: Maintenance
Return your device to your supplier who will dispose of it correctly. Packaging Your device is packaged to protect it from damages during transport. Packaging is made of materials that can be disposed of in an environmentally friendly manner and properly recycled. © MOBATIME 6 / 16 800859.00... -
Page 7: General Information - Introduction
Function description The DTS 2345.serial-distributor is a signal distributor for the RS232 and RS422 inter- faces. The distributor comprises two identical lines. Each line has an input interface and three output interfaces. -
Page 8: Signal Transmission
The status of both input interfaces is shown on the front of the distributor by means of their Rx LED and Tx LED. The status of each output interface is shown on the back of the case by means of their Rx LED and Tx LED. © MOBATIME 8 / 16 800859.00... -
Page 9: Configuration, Displays And Connections
Signal Rx+ Line A and B independent. Bridge Rx In+ Signal Rx+ Line A and B internally bypassed. Signal Rx- Line A and B independent. Bridge Rx In- Signal Rx- Line A and B internally bypassed. © MOBATIME 9 / 16 800859.00... -
Page 10: Outputs - Back Of Case
Alarm relay closer Closes on alarm Alarm relay changeover Joint pickup The relay contacts can carry the following loads: 30W (max. 60 VDC or max. 1A) or 60VA (max. 30 VAC or max. 1A) © MOBATIME 10 / 16 800859.00... -
Page 11: Technical Data
Alarm relay (opener and closer) 30 W (max. 60 VDC or max. 1 A) 60 VA (max. 30 VAC or max. 1 A) Case 19” rack / 1 HU Temperature -5 – +50 °C © MOBATIME 11 / 16 800859.00... -
Page 12: Dimensions Of Serial Distributor
Dimensions of serial distributor The dimensions of the serial distributor are as follows in millimeters: © MOBATIME 12 / 16 800859.00... - Page 13 © MOBATIME 13 / 16 800859.00...
- Page 14 © MOBATIME 14 / 16 800859.00...
- Page 15 © MOBATIME 15 / 16 800859.00...
- Page 16 © MOBATIME BE-800859.00...
