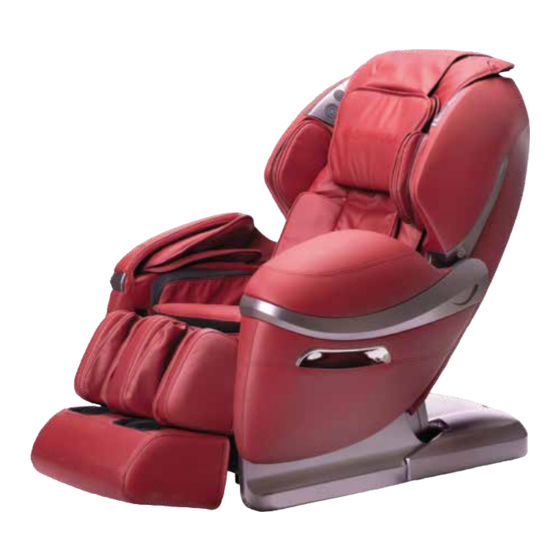

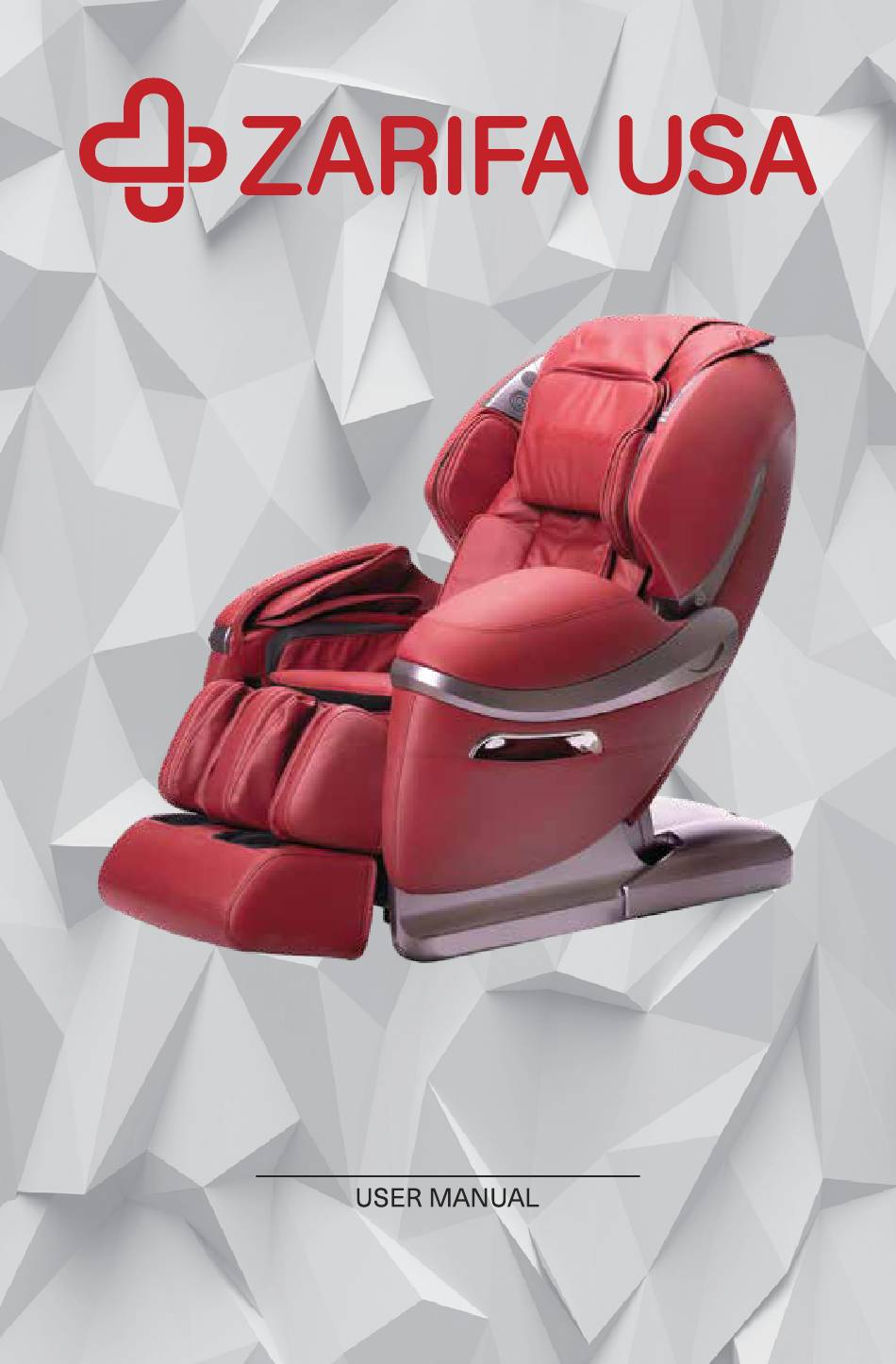

- Page 1 Z-SMART Massage Chair...
- Page 2 THANK YOU! Loyal Customer Our goal is to provide a graceful living experience through drug-free pain relief. Our products are made with the customer in mind. During trying times of an opioid epidemic, we aim to provide the highest quality products using modern methods of traditional practices Meeting our customers and hearing their stories is what continually drives us each day.
-
Page 3: Table Of Contents
Massage Chair Contents Massage Chair Thank you for purchasing our product. Please read the safety and operating procedures in this User Manual before using the massager. Keep this booklet in a safe place for future reference. Contents Safety warnings 03-04 Safety and maintenance 05-06 Parts and functions... -
Page 4: Safety Warnings
Massage Chair Safety warnings Important Safety Warnings Do not put hands or fingers near the massage mechanism or rollers while this product is running. Touching the mechanism can result in injury from the rollers squeezing together. Ensure that the unit is properly grounded before operating. Do not leave the product unattended. - Page 5 Massage Chair Safety warnings People Not Suitable To Use The Chair People with circulatory problems (such as varicose veins or thrombosis), children, and those advised not to use a massage chair by their doctor should not use this chair. If you have any of the following health conditions, please consult your doctor for medical advice before using this chair: serious heart problems, serious diabetes, advanced osteoporosis, serious skin conditions, malignant tumor(s), sensory impairment, pregnancy (or suspected pregnancy) or those who have just given birth,...
-
Page 6: Safety And Maintenance
Massage Chair Safety and maintenance Trouble Shooting If the controller is not working normally check the cable and plug socket. Ensure the plug is properly plugged in and secure. Check to ensure that the cable is undamaged. This product is equipped with a thermal protection device. This is an added safety feature to protect your product from overheating with usage over the rated operation time. - Page 7 Massage Chair Safety and maintenance Maintenance This product is designed and built to be maintenance-free. No periodic lubrication is required. Environmental Usage No user-serviceable parts inside. To be repaired by manufacture certified technician only. If the product is not in use for a long time, store it appropriately. It's recommended to cover the chair, tuck the power cord away, and store it in an environment that is dust and moisture-free.
-
Page 8: Parts And Functions
Massage Chair Parts and functions Name And Function Of Components 1. Head cushion 2. 3D digital speaker 3. Arm airbag component 4. Seat cushion 5. Legrest 6. Footrest 7. O2 Ionizer 8. Upper arm airbag component 9. Back cushion 10. Armrest 11. - Page 9 36 airbags, foot air pressure with 16 airbags, and three levels of air pressure intensity adjustment. Z-Smart carbon fiber back and legrest heat with 3 adjustable levels. Space-saving design that slides the chair forward when reclining. Designed with combo "S" and "L" shape track for full body massage from head to toe.
- Page 10 Massage Chair Parts and functions Standard Functions 1. Negative oxygen ion functionality (button on left upper arm). Fresh Ionized air is gently released from the massage chair Ionizer vents to provide a fresh and odor free massage. 2. Magnetic therapy function 8 built in natural energy magnets in legrest.
-
Page 11: Lcd Remote Controller
Massage Chair LCD remote controller LCD Remote Controller Note: remote pictured may differ from actual unit... -
Page 12: Operating Instructions
Massage Chair Operating instructions Operating Instructions 1. Plug in and power on Plug in the power cable Turn on the main power switch Plug in power cable Plug in power cable Turn on main power to wall to chair switch 2. - Page 13 Massage Chair Operating instructions Memory massage: during the shoulder position detection, you can use M1 or M2 memory buttons to start a massage. No need to wait until the detection is finished and it will recall the stored massage settings instantly. Automatic massage modes Buttons Description...
- Page 14 Massage Chair Operating instructions Manual massage modes Upper body manual operation Buttons Description On Display Shoulder grasp: rotating to grasp and massage shoulders, with adjustable speed and intensity. Kneading: adjustable speed and intensity Tapping: 2 modes of taping with adjustable speed, width, and intensity Kneading and tapping: adjustable speed and intensity Shiatsu: 2 modes of taping with adjustable speed, width, and...
- Page 15 Massage Chair Operating instructions Air massage functions Buttons Description On Display Lower body air compression function (3 modes: lower body, back and waist, and legs) 3 levels of intensity adjustment for lower body, back and waist, and leg air compression Adjusts lower body air compression or footrest air compression modes, switch on/off legrest stretch function Arm air compression on/off and 3 levels of intensity adjustment...
-
Page 16: Stop Massage And Power Off
Massage Chair Operating instructions Backrest and legrest angle adjustments Buttons Description Zero gravity button: When the button is pressed chair enters zero gravity mode. There are three different zero gravity modes to pick between. Footrest rise button: Press and hold this button to slowly adjust the frame up, release to stop rising. -
Page 17: Armrest Installation
Massage Chair Operating instructions Turn off the power switch and unplug the machine between uses. Power off the main power switch Unplug the power cord from the unit Unplug from the wall 4. Installing armrest 1. Locate the corresponding armrest wiring harness in the center frame section and prepare for connection. - Page 18 Massage Chair Operating instructions 5. Hold the handrail with both hands, connect the front end of the armrest into the steel frame, and secure it in place. (figure 5) 6. Connect the LED lighting wire at the rear end of the armrest and tuck in the excess wire. Then align the connectors on the rear of the armrest a connect them firmly in place.
-
Page 19: Footrest Installation
Massage Chair Operating instructions 5. Installing footrest 1. Remove the tie securing the wiring connection and air pipe connection to the metal for shipping. (figure 1) 2. Connect the wiring connector and the air pipe and the leg joint in the lower portion of the frame. Ensure the docking is in place. - Page 20 Massage Chair Operating instructions 5. Hang the lower leg (left and right shaft) into the frame support hinge plat at the same time. (figure 5) 6. Cover the rotating shaft cover, press footrest rotating cover, and then tighten footrest rotating cover board with two M5x14-12.9 screws and a 6x12x1.5 flat pad with the supplied hex wrench.
-
Page 21: Backrest And Head Pillow Adjustments
Massage Chair Operating instructions 8. Backrest and pillow adjustments The Head pillow has a three-part (three-layer) fold-down design. Choose the number of layers for the right fit for you. For a gentler massage separate the hook and loop fasteners on the headrest to reveal the back pad. The additional head pillow/backrest portion may also be removed or adjust by adjusting the hook and loop fastener. -
Page 22: Moving The Chair
Massage Chair Operating instructions 10. Moving the chair Before moving detach or secure the power cable. Tilt the chair by the backrest backward until well balanced at the center of gravity on the wheels. Push the chair forward or backward to the desired location then set the chair down slowly and carefully. -
Page 23: Product Specifications
Massage Chair Operating instructions Product Specifications Class I... - Page 24 ZARIFA USA 465 West Century Dr. #3 Murray, UT 84123...
