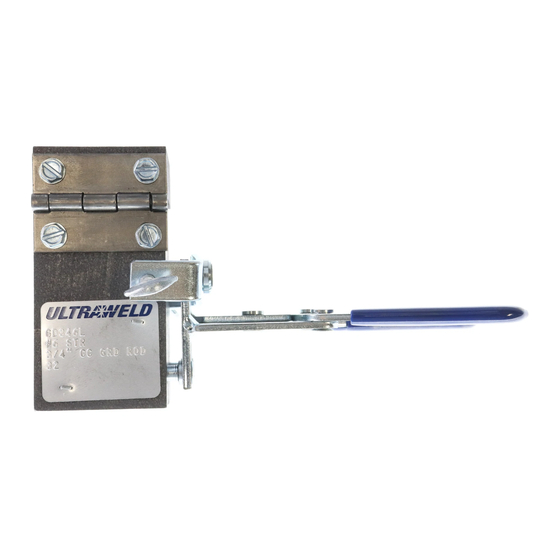

Harger Ultraweld GD Instructions

Harger Ultraweld GD Instructions

Grounding connections - cable to ground rod

Advertisement

Quick Links

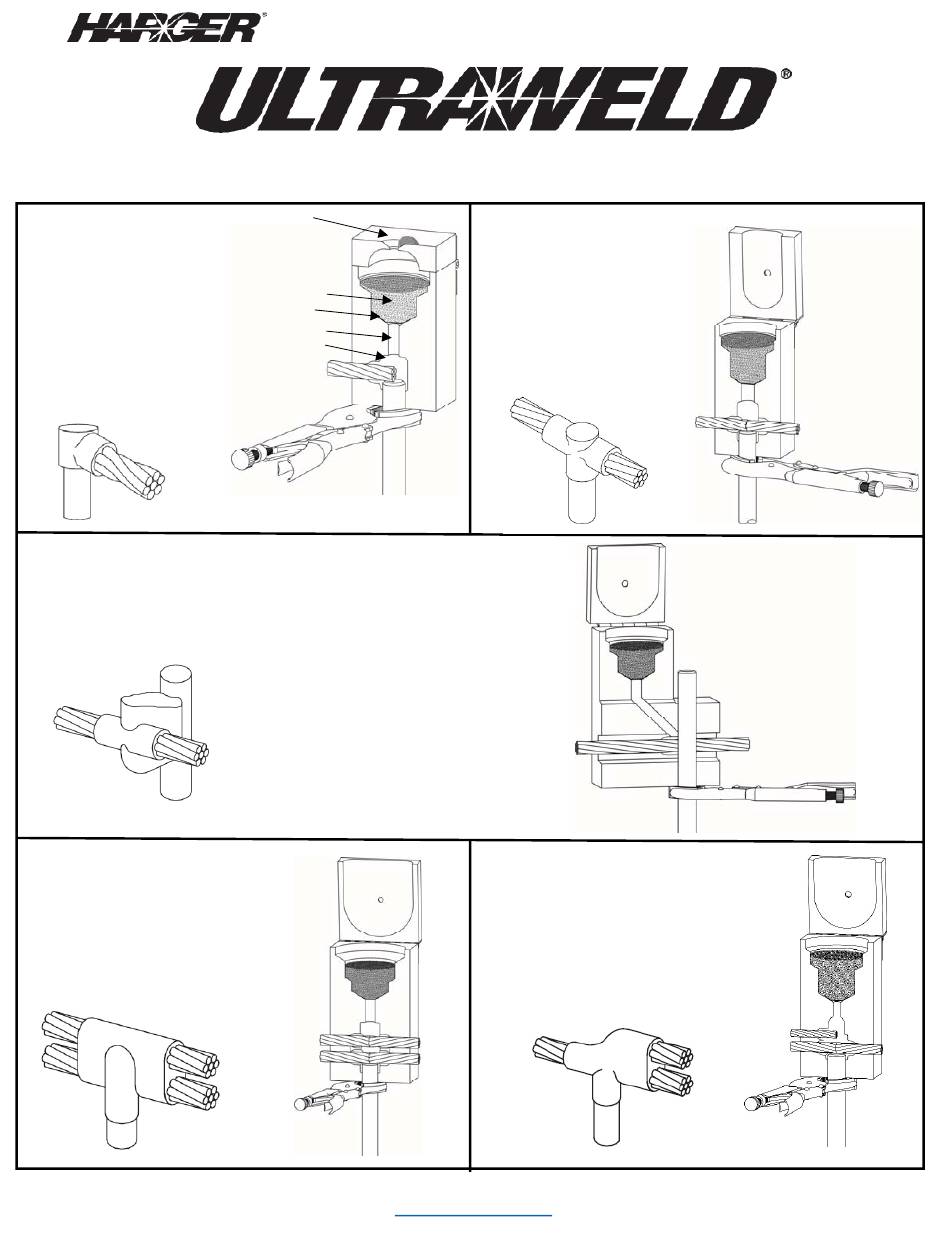

INSTRUCTIONS FOR ULTRAWELD® GROUNDING CONNECTIONS - CABLE TO GROUND ROD
GD
Place end of cable under
the center of the tap hole.
Cable must sit on top of
ground rod. Use locking
pliers or a clamp on the
rod below the mold to
prevent it from slipping
.
when the mold is fired
GS
Place cable into mold and secure mold to ground rod with handle clamp.
Support mold to keep it from sliding down the ground rod
when welding with locking pliers or clamp below mold.
GF
Place cables in mold. Bottom
run cable must sit on top of the
ground rod. Use a pair of
locking pliers or a clamp below
mold on ground rod to support
the mold and prevent slipping.
Revised 1/3/2014
Starting Powder
Weld Powder
Steel Disc
Tap Hole
Weld Cavity
Cable
Ground Rod
Visit our website at www.harger.com
GO
Place cable in the mold.
Cable must sit on top of
ground rod. Use locking
pliers or a clamp on the rod
below the mold to prevent it
from slipping when the
mold is fired.
GT
Place end of tap cable under
center of tap hole. Run cable
must sit on top of the ground
rod. Use a pair of locking pliers
or a clamp below mold on
ground rod to support the mold
and prevent slipping.
for further tips and videos.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ultraweld GD and is the answer not in the manual?

Questions and answers

Summary of Contents for Harger Ultraweld GD

  • Page 1 Use a pair of locking pliers mold on ground rod to support or a clamp below mold on the mold and prevent slipping. ground rod to support the mold and prevent slipping. Visit our website at www.harger.com for further tips and videos.  Revised 1/3/2014...
  • Page 2 PREPARATION OF GROUND RODS AND GENERAL SAFETY INSTRUCTIONS 1. Always wear proper clothing, safety glasses and gloves when  GROUND RECEPTACLES exothermic welding. 1. Ends that are threaded, mushroomed from driving, or  2. Only weld items that the mold is designed for. drilled and tapped, must be cut off before welding to the  3. Do not use worn or broken molds which could cause leakage  end. Contact factory about ground rod driving sleeves. of molten weld metal. 2. The site of the weld on the ground rods and receptacles  4. Always use proper handle clamps or frame work required for  must be clean. Use a coarse file to remove rust and oxide  the mold and make sure it is adjusted properly to close the  before welding mold completely.  3. Slightly UNDER SIZED ROD MAY BE BUILT UP WITH WRPSLV  5. Make sure that the conductors being welded fit in the mold  WRAP SLEEVES. This will not work for large differences in  properly and that the mold will close tightly around them. size.  6. Do not alter molds or accessories without factory  WELDING PROCEDURE authorization. 1. Read all instructions and safety warnings before starting.  7. Avoid breathing concentrations of smoke, as it may be  2. Check mold tag for conductors to be welded and proper  hazardous to your health.
