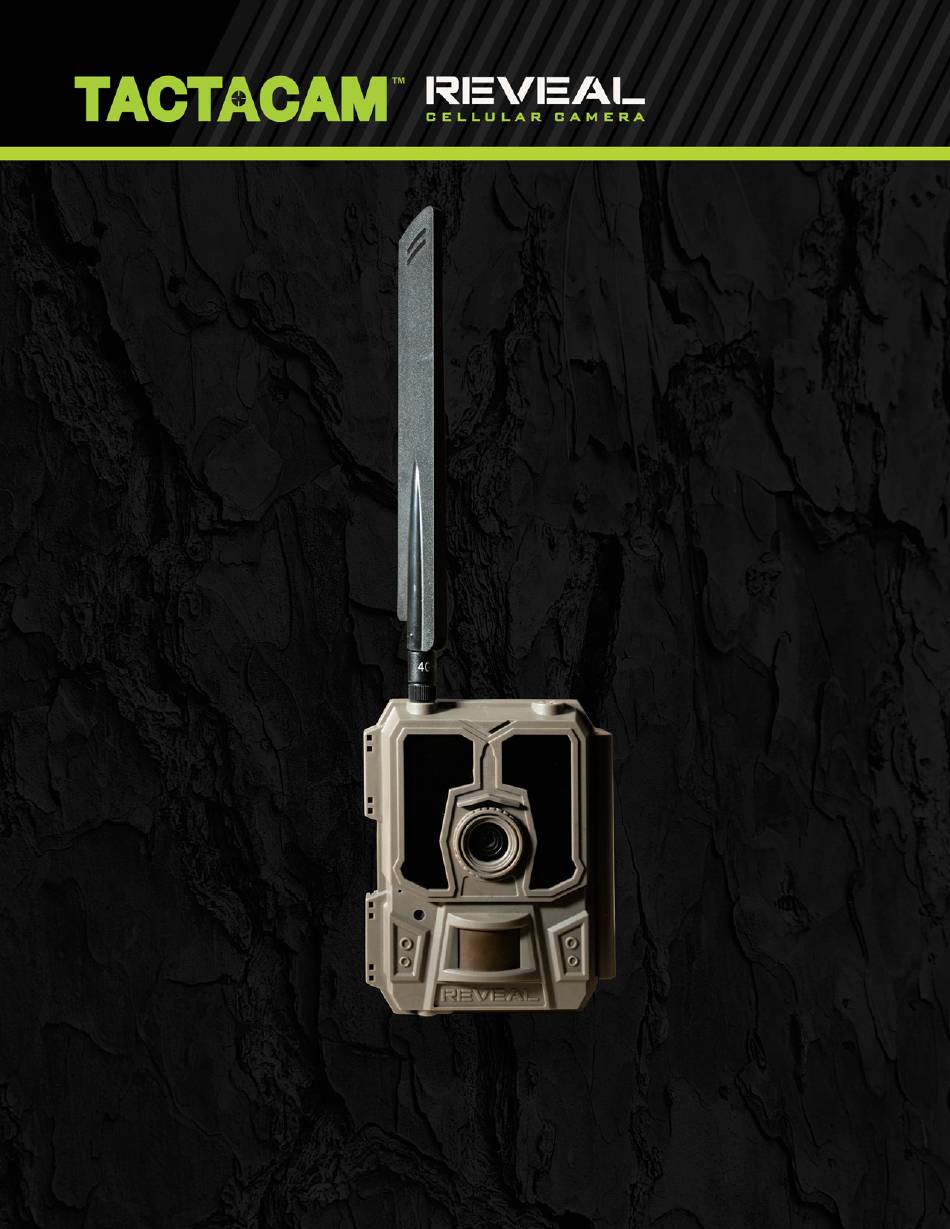

- Page 1 INSTRUCTION MANUAL revealcellcam.com...
- Page 2 GETTING TO KNOW YOUR REVEAL REVEAL APP DOWNLOAD DOWNLOAD THE TACTACAM REVEAL APP VISIT YOUR APP STORE TO DOWNLOAD WWW.REVEALCELLCAM.COM...
-
Page 3: Table Of Contents
GETTING TO KNOW YOUR REVEAL TABLE OF CONTENTS CONTENTS Contents --------------------------------------------------------------------------------------- 2 1. Introduction -------------------------------------------------------------------------------- 3 1.1: Front view -------------------------------------------------------------------------------- 3 1.2: Bottom view of camera ----------------------------------------------------------- 4 1.3: Internal, side view of camera ------------------------------------------------------- 4 2. Quick Start --------------------------------------------------------------------------------- 5 2.1: What is in the box ---------------------------------------------------------------------- 5... -
Page 4: Introduction

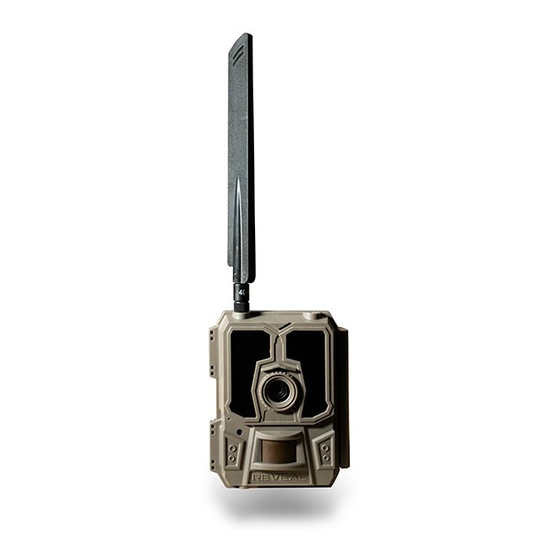

GETTING TO KNOW YOUR REVEAL REVEAL INTRODUCTION FRONT VIEW · Antenna · 30 IR LEDs in Total · Lens · Light Indicator Light Sensor (day/night) · PIR Sensor BOTTOM VIEW OF CAMERA · Tripod attachment · External battery in · USB Port INTERNAL, SIDE VIEW OF CAMERA ·... -
Page 5: What Is In The Box
REVEAL QUICK START GUIDE REVEAL FEATURES & BENEFITS WHAT IS IN THE BOX Trail camera x 1 Instruction manual x 1 Mounting strap × 1 USB cable x 1 GET CAMERA AND APP READY: 1. Search “TACTACAM REVEALl” in the App Store / Google Play, download and install the APP on your smart device. -
Page 6: Start Using
3. Turn the camera to “Set up”, CAMERA then choose “4G >>> QR Code” to get the camera’s QR code. 4. With your Reveal app scan the camera’s QR code on the cameras LCD screen, enter cameras name and location and add the camera to your account. -
Page 7: Camera Settings
GETTING TO KNOW YOUR REVEAL CAMERA SETTINGS Cam Settings (Default settings are noted in red) Settings Programmable Options Cam ID ON/OFF Select “ON”, press “OK”, to set 4 digits/ alphabets for each camera. Such function can help user to identify where photos are from and which camera. - Page 8 GETTING TO KNOW YOUR REVEAL CAMERA SETTINGS Settings Programmable Options Sensitivity High, Middle, Low, OFF Higher sensitivity is 1) more sensitive to movements by smaller subjects; 2) longer detection distance; 3) easier for sensor to detect difference between body heat and outdoor temperature;...
- Page 9 GETTING TO KNOW YOUR REVEAL CAMERA SETTINGS 4G settings QR Code You may use the APP to scan the QR code to register the camera into your account. Max Num/Day Default: unlimited; Optional: 1 to 99 i.e.: user chooses 50, then the camera will only transmit 50 pictures every day.
-
Page 10: Specification
GETTING TO KNOW YOUR REVEAL SPECIFICATION Camera Mode Photo Picture size 8MP/12MP/24MP = 3264x2448/4032x3024/5632x4224 Picture Format JPEG Day/Night Mode IR range 96+ feet IR LED 30 pcs IR LEDs Memory SD Card Class 10 (4GB – 32GB) Operating keys Lens F=6mm;... - Page 11 GETTING TO KNOW YOUR TACTACAM: SPECIFICATION Time Lapse SD Loop ON/OFF Operation Power Battery: 9V; DC: 12V Battery Type 12AA External DC 4G communication LTE wireless Stand-by Time 5~8 months (6×AA~12×AA) Auto Power Off In Test mode, camera will automatically power off in 3 mins if there is no keypad touching.
-
Page 12: Troubleshooting
GETTING TO KNOW YOUR REVEAL TROUBLESHOOTING PHOTOS DO NOT CAPTURE SUBJECT OF INTEREST 1. Check the “Sensor Level” (PIR sensitivity) parameter setting. For warm environmental conditions, set the sensor level to “High” and for cold weather use, set the sensor level for “Low”. -
Page 13: Warranty
GETTING TO KNOW YOUR REVEAL WARRANTY (844) 482-2822... - Page 14 GETTING TO KNOW YOUR REVEAL WWW.REVEALCELLCAM.COM...
- Page 15 DO NOT RETURN PRODUCT TO YOUR RETAILER PLEASE CALL 844-482-2822 EMAIL SUPPORT@REVEALCELLCAM.COM for any warranty issues or help filming your hunts with TACTACAM! (844) 482-2822...
- Page 16 GETTING TO KNOW YOUR REVEAL © 2020 REVEAL™ | (844)482-2822 | WWW.REVEALCELLCAM.COM | SUPPORT@REVEALCELLCAM.COM WWW.REVEALCELLCAM.COM...
