Summary of Contents for Aliaxis RXP K-Line G-Set

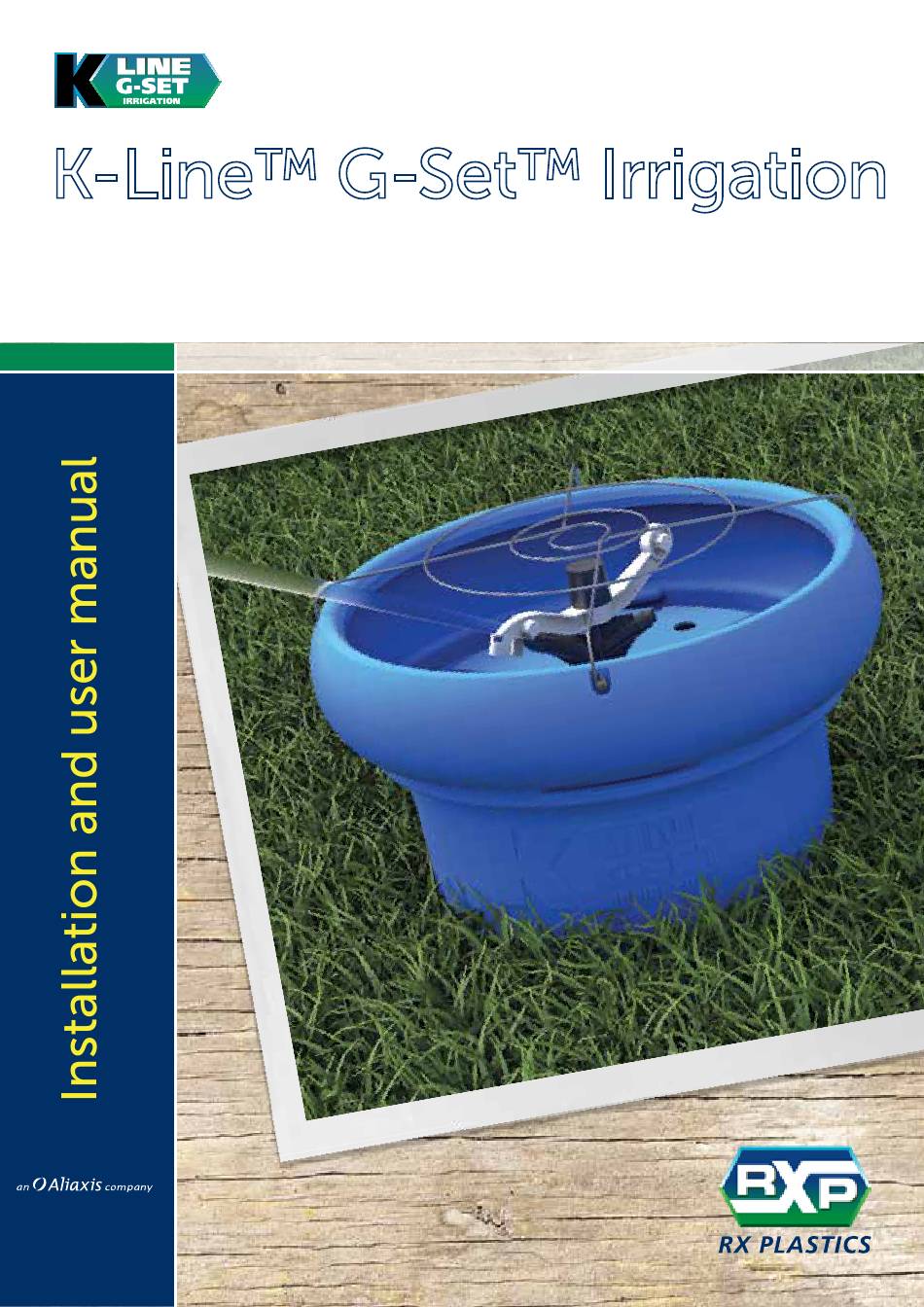

- Page 1 K-Line™ G-Set™ Irrigation Solid Set Irrigation for pasture August 2017 RX PLASTICS LTD PO Box 360 Ashburton Phone +64 3 307 9081 Email sales@rxplastics.co.nz www.rxplastics.co.nz...
- Page 2 K-Line™ G-Set™ irrigation G-Set is an irrigation ‘system’, and to achieve the desired outcome, must be approached and treated as such, and not an accumulation of components. G-Set is a solid set fixed system that minimises “labour” for Contents the day to day operation of irrigation. G-Set installation It is suitable for all land areas, and is not restricted by the Pipe exposure and saddle installation.
- Page 3 G-Set unit installation G-Set install tools 30mm hole saw – for the tapping saddle installation ½"/13mm long socket 3/8" drive – for the tapping saddle nuts 150mm socket bit 3/8" drive extension – for the long socket 5/16 socket adaptor bit – for type17 tek screws 3/8"...
- Page 4 G-Set unit standard installation Standard Installation Fit the tapping saddle, complete with male coupler and 32mm x 600mm riser tube, securely to the pipe. Fill and firmly compact the soil in the hole to a height of 350mm from finished ground level. Lower the G-Set pod over the riser tube, back fill and firmly compact ensuring the rim of the pod is...
- Page 5 G-Set unit side entry installation Side Entry Installation Having fitted the tapping saddle and connector (50mm) onto the 63mm Ring Main, dig a hole 350mm deep and compact the hole suitable to install the G-Set tightly into the hole. Lower the G-Set pod into the hole, firmly compacting the backfill material as you go.
- Page 6 Completing the G-Set install (Please Note: Control Systems need to be installed before this.) Locate the first half of the cover/support into the pod and screw into place with the dish/ indent facing north or best orientation to capture maximum sunshine hours.
- Page 7 Wireless controller (IPC) KLGS.RX2000 Wireless controller (IPC)install tools 4mm drill bit – for the zip clip for the mount holes 20mm hole saw – to drill the aerial tube holes and access holes Drill Phillips head screwdriver – to screw the IPC down Side cutters –...
- Page 8 Wireless controller (IPC) KLGS.RX2000 Drill 4mm pilot holes into the indicated holes (fig. 2) through the bracket into the G-Set body. 50mm Drill 4mm pilot holes For IPC connection (See Fig 4) Pilot Holes The top of the bracket should be placed approximately 50mm below the lid attachment point in the G-Set.
- Page 9 Wireless controller (IPC) KLGS.RX2000 Screw the mounting screws into the IPC bracket from outside using the holes identified in fig 2. The bracket should be mounted on the South side of the pod. With the bracket attached, now insert the IPC wires into the 10mm hole and using the four supplied screws attach the IPC to the PVC Base Plate.
- Page 10 Wireless controller (IPC) KLGS.RX2000 Connect the solenoid wires, being careful to colour match with the IPC wires. Green = Green Black = Black Affix the wirenuts as specified in fig. 10, taking carefull note of the direction of the twist. Drill an access hole through the “tray”...
- Page 11 Wireless controller (IPC) KLGS.RX2000 Draw the solar panel wires down toward the IPC and attach the aerial with the special clips. Clips Clips Screw the solar panel down with a single tek screw into the centre of the solar panel plate. This plate fits neatly into the tray stopping movement.
- Page 12 Wireless controller (IPC) mounting instructions KLGS.RX2000 Connection of the solar panel wires is simply connecting brown IPC wire to brown solar panel wire and the blue IPC to the blue solar panel wire. This is achieved by the use of the wire nuts included.
- Page 13 Battery controller (C1013) KLGS.C1013 Battery controller (C1013) install tools Phillips head screwdriver 32mm hole saw – for the attachment of the socket to the lid of the G-Set Drill Programming of the controller should be completed before mounting Connect the controller to the bracket. Connect the bracket with two tek screws.
- Page 14 Battery controller (C1013) KLGS.C1013 Drill a 32mm hole to mount the solar panel ensuring that it faces the best solar collection direction generally this will be placed on the South East or South West of the pod, with the panel facing West of North or East of North.
- Page 15 Battery controller (C1013) KLGS.C1013 Taking the included wire nuts, you are then able to connect the solenoid (latch) coil to the controller. Installing the Connectors 1. Strip wires ½" 2. Align frayed strands or conductors 3. Do not pre-twist. Place stripped wires together with ends even, lead stranded wire slightly 4.
- Page 16 Agent: RX PLASTICS LTD PO Box 360 Ashburton Phone +64 3 307 9081 Email sales@rxplastics.co.nz www.rxplastics.co.nz...
