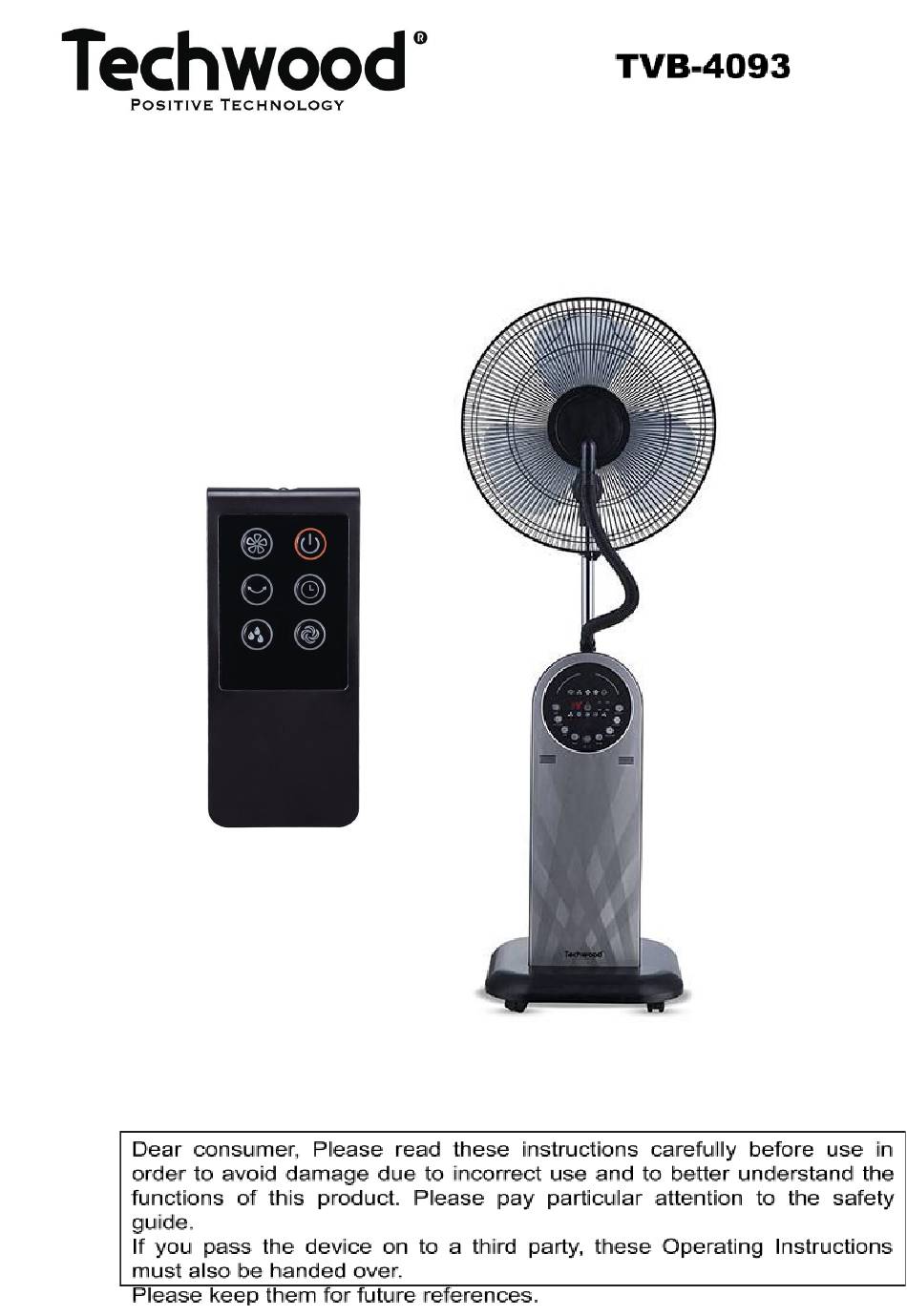

- Page 1 INDOOR STAND MIST FAN INSTRUCTION MANUAL...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Please read these instructions carefully before use. ❑ Keep present instructions for future references. ❑ Check that your mains voltage corresponds to that stated on ❑ the appliance. Only use the appliance for domestic purposes and ❑ household or similar applications such as: -staff kitchen areas, in shops, offices and other working environments;... - Page 3 This device can be used by children aged 8 years and older ❑ and adults, with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 4 Disconnect the power source cable before any operation of ❑ cleaning of maintenance and accessories assembly. Disconnect the power source cable when filling and cleaning ❑ Never use the appliance outside and always place it in a dry ❑ environment. Never use accessories, which are not recommended by the ❑...
-
Page 5: General Information
approved extension leads. Input power must be at least 16A, 250V, 3000W. Incorrect operation and improper use can damage the ❑ appliance and cause injury to the user. This device, designed for home use, complies with standards ❑ relating to this type of product. The appliance must be used and rested on a table or flat &... - Page 6 The symbol "BIN" crossed out, abbreviation WEEE (Waste of Electrical and Electronic Equipment) means that at the end of life, it should not be discarded with household waste, but filed to the sorting of the locality. Waste recovery can help preserve our environment. The symbol "CE"...
- Page 7 collection (eg recycling bin, waste, voluntary intake point). For more information : h ttp://www.quefairedemesdechets.fr TO KNOW IT’S UNIT 1. Misting outlet (nozzle) 3. Front grille 2. Diffuser tube of the atomiser 4. Fixing nozzle on the grid...
- Page 8 5. Clamp 13. Base of the device 6. Fixing Nut of the blades 14. Casters 7. Blades 15. Fixing Screws base / device 8. Fixing Nut of the rear grille 16. Water tank 9. Rear grille 17. Spring pliers 10. Engine and its support 18.
- Page 9 3. Mount the blades on the motor shaft and tighten the fixing nut. 4. Engage the clamp (but do not tighten) on the rear rack. Figure 4 Front grille and sprayer assembly 1. Insert the spray tip of atomiser into the diffusion tube.
- Page 10 Fan speed control by pressing: "Speed + " or "speed -" TIMER Fan timer switch; it works in the following order: 1H-2H-4H-8H and back to 0. MIST Humidification switch; see paragraph: MISTING. MODE Ventilation cycle type selector; it operates in the following order : Normal ventilation - Natural ventilation - Night ventilation Return to Normal ventilation.
- Page 11 MIST Instructions for using the humidification or misting function. · Remove the water tank from the unit and unscrew the tank cap counter clockwise. · Fill with fresh and cold water. Never put water above 40 ° C and screw on the water tank cap. Check that there are no leaks.
- Page 12 1. Unplug the power cord. 2. Remove the water tank 3. Check that there is no water accumulated in the unit before reuse. · When using the humidifier: Do not add disinfectant, vinegar, perfume or essential oils. Never fog in front of furniture, appliances or near walls to avoid excessive moisture damage.
- Page 14 CLEANING AND MAINTENANCE • Always unplug the appliance and allow it to cool before cleaning. • Clean the outside of the appliance with a slightly damp sponge or cloth. • Never immerse the appliance in water or any other liquid! •...
-
Page 15: Specifications
SPECIFICATIONS Power supply 220-240V~ 50Hz Power Norm Class II 3 Maximum fan flow rate 69.66 m /min Fan power input 42.30W Service value 1.65 (m 3 /min)/W Standby power consumption 0.15 Season electricity consumption 13.70 kWh/a Fan sound power level 58.22 dB(A) Maximum air velocity 2.89 meters/sec...
