2 IN 1 ESPRESSO COFFEE MACHINE
TCA-196N
Dear consumer, Please read these instructions carefully before use in
order to avoid damage due to incorrect use and to better understand the
functions of this product. Please pay particular attention to the safety
guide.
If you pass the device on to a third party, these Operating Instructions
must also be handed over.
Please keep them for future references.
Instruction manual
TCA-195N
TCA-196N
TCA-198N
TCA-195N
TCA-198N
1
Advertisement
Table of Contents
Related Manuals for TECHWOOD TCA-195N
Summary of Contents for TECHWOOD TCA-195N

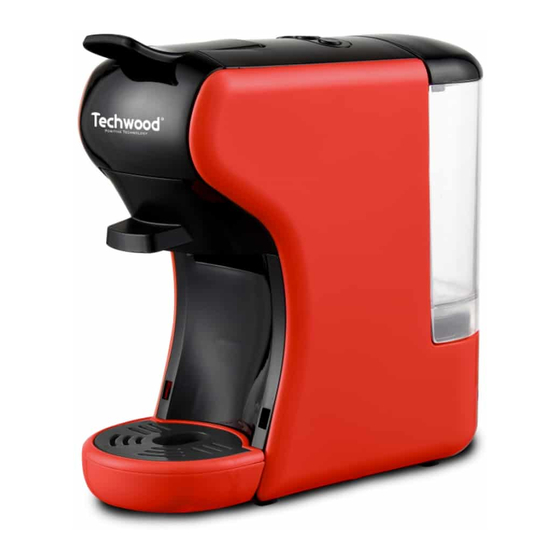

- Page 1 TCA-195N TCA-196N TCA-198N 2 IN 1 ESPRESSO COFFEE MACHINE Instruction manual TCA-195N TCA-198N TCA-196N Dear consumer, Please read these instructions carefully before use in order to avoid damage due to incorrect use and to better understand the functions of this product. Please pay particular attention to the safety guide.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Warning: risk of potential injury from misuse. The heating element surface is subject to residual heat after Please read these instructions carefully before use. Keep present instructions for future references. Check that your mains voltage corresponds to that stated on ... - Page 3 concerning use of the appliance in a safe way and if they understand the hazards involved. This device is not a toy, do not leave small children or people with disabilities to play with. Cleaning and user maintenance shall not be made by ...
- Page 4 Never use the appliance outside and always place it in a dry environment. Never use accessories, which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never use any other connector than the one provided. ...
-
Page 5: General Information
The appliance must be used and rested on a table or flat & stable surface. The item must not be left unattended when it is connected to main supply. The item is not to be used, if it has been dropped or if there ... - Page 6 The symbol ROHS (Restriction of use of some Hazardous Substances) on the Environmental Protection, certifies that for each of the five hazardous substances • Lead • Mercury • (hexavalent) chromium • products for protection against flames PBB and PBDE, the peak concentration is equal to or less than 0.1% of the weight of homogeneous material, and 0.01% for the 6th •...
-
Page 7: First Use
FIRST USE Before first use, remove the device and all accessories. • Clean the apparatus according to the instructions in "Cleaning" paragraph. • Place the machine on a suitable flat, stable surface. Unroll the power cord completely. Check that the tension in force in the country where you are corresponds to that indicated on the apparatus. - Page 8 Filling without removing the tank – raise the water tank cover – Fill the tank with cold fresh water (the maximum temperature of the water is 35℃) – the maximum capacity is 0.6 litre. – low down the tank cover Filling by removing the water tank –...
- Page 9 - Open the handle when the flush out process stopped automatically. Tips: This machine has different adaptor compatible with different system, details please refer to below: Brewing basket for Nespresso* capsules system Brewing basket for Dolce- Gusto* capsules system * Third-party trademarks unrelated to SOTECH/TECHWOOD...
- Page 10 Brewing basket for Nespresso capsules system - Open the handle - Pull out the brewing basket for Nespresso* capsules, this is normal performed. - Press the brewing basket cover lid - Insert a capsule to the brewing basket. Push in the brewing basket with capsule. -Close the handle.
- Page 11 The flash process is for heating. Brewing basket for Dolce-Gusto capsules system - Open the handle - Pull out the brewing basket for Dolce-Gusto* capsules, this is normal performed. * Third-party trademarks unrelated to SOTECH/TECHWOOD - Insert a capsule to the brewing basket.
- Page 12 Push in the brewing basket with capsule. - Close the handle. normal perform. Place a cup under the dispenser - Press the desired coffee button only once - The selected button will blink and the machine will start brewing then complete the brewing process, dispensing will stop automatically when reaching the default brewing time (+/-25s for small cup, +/-47s for tall cup), default setting can be programmed, please...
- Page 13 Standby model setting: Keep pressing the small cup button and tall cup button, insert the plug to the socket Switch Button light will be on Press small cup button, Small button light off. Standby mode cancelled: Press small cup button, Small cup button light on, Standby mode activated.
- Page 14 CLEANING AND MAINTENANCE Before cleaning, Always switch off the appliance, disconnect the apparatus and let it cool. Clean the outside of the apparatus with a sponge or slightly wet linen. The parts (removable) in contact with food like plate, bowl, forks, Spatula etc. can be washed in hot water with sponge and soft detergent or put in the dishwasher.
- Page 15 Prohibit to pull water to the machine Prohibit to open the handle when brewing Before brewing, to be sure there is not less 20ml water keep in the water tank. There is sharp needle upper the capsule Adaptor. Prohibit to put the hand or Finger to any part near the needle after the adaptor is removed.
- Page 16 Decalcification / Maintenance Drinking water varies according to region. The lime particles in hard drinking water are deposited as residues in the machine and can block the piping and cause damage. To prevent this, be sure to decalcify the machine at the very least after making 300 to 400 cups of coffee or, in any case if the output falls significantly or, after one or two months.
-
Page 17: Re-Priming The Pump
STORAGE -Ensure the unit is completely cool and dry. -Do not wrap the cord around the appliance, as this will cause damage. -Keep the appliance in a cool, dry place and out of reach from children. GUARANTEE Before being delivered, all our products are subjected to a rigorous control. This apparatus is guaranteed 24 months starting from the date of purchase by the consumer. -
Page 18: Specifications
If necessary, repeat steps 2 & 3 several times. SPECIFICATIONS Power supply 220-240V~ 50/60Hz Power 1450W Pump Pressure Max.19Bar Water tank capacity 0,6L Norm Class I Made in PRC The characteristics can change without prior notice. EARTHING This unit is equipped with an electrical outlet with earth and must be earthed in an according plug. - Page 19 Imported by Sotech International " LE PERIPOLE " N°A107 33, Avenue du Marechal de Lattre de Tassigny 94120 Fontenay sous bois - France...
