Summary of Contents for Rehan Electronics Infinity

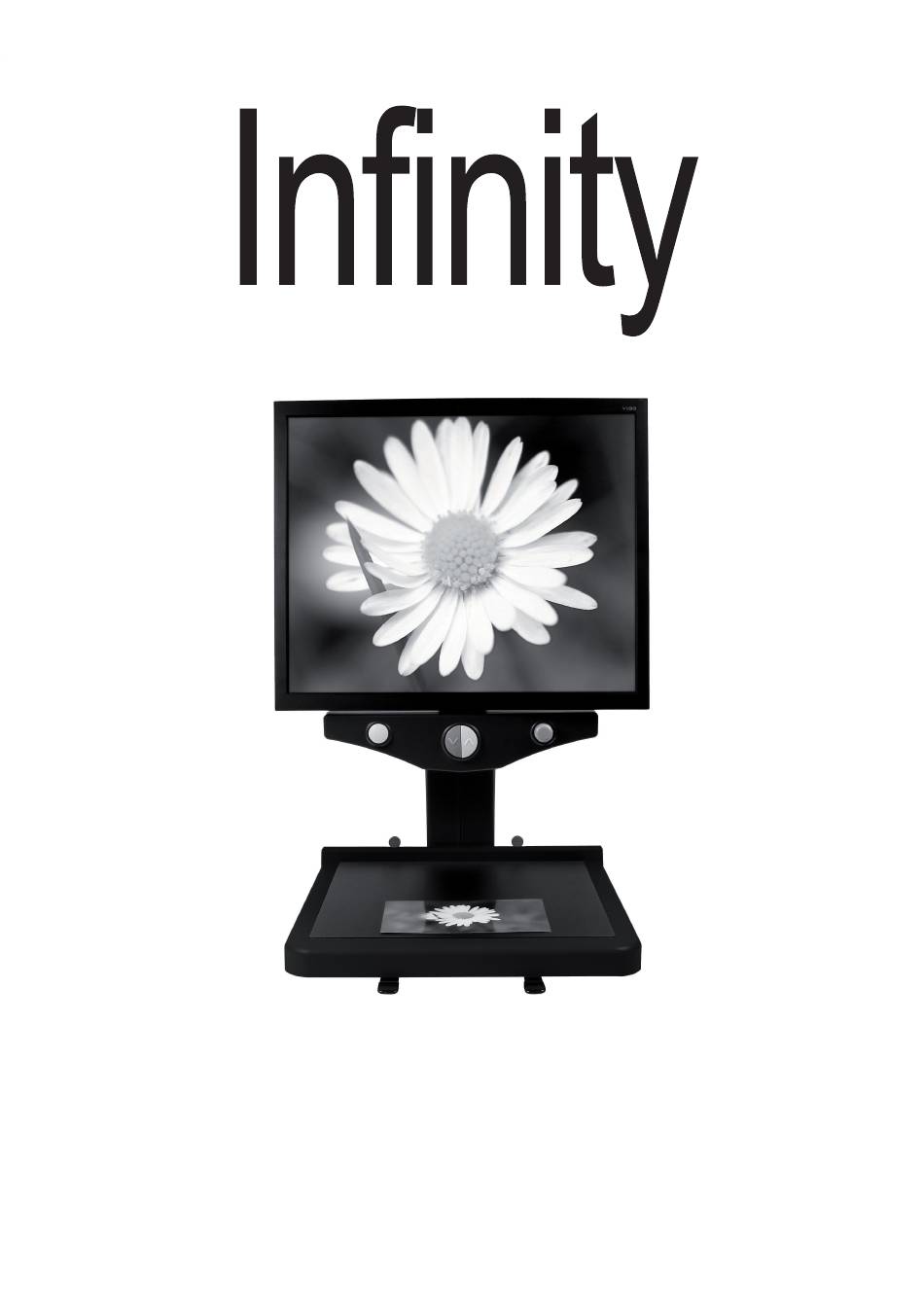

- Page 1 USER MANUAL v1.4...
-
Page 2: Table Of Contents
Viewing Modes …………………………………………………………. 6 Blocking the autofocus ……………………………………………. 6 Reading aid..…………………………………………………………... 7 Brightness ……………………………………………………….………. 7 Tableau ….……………………………………………………………….. 7 Brake Handles ………………………………………………….…….. 8 4 General Information …….…………………………………………. 8 Discarding the Infinity ….………………………………………… 8 5 Technical Specifications …………….………………………….. 9 6 Control Overview ………………………………………………….. 10 Infinity... -
Page 3: Introduction
1 Introduction The Infinity CCTV is well known for its easy to use features and an excellent image quality. The Infinity is delivered with an autofocus system and an ideal reading table. 2 Installation, safety and maintenance Box contents The Infinity box contains the following: •... -
Page 4: Instructions
The use of aggressive cleaning products like alcohol, acetone and other chemical products are prohibited. • Please do not place anything but a screen on top of the Infinity e.g . no books, plants, clocks, etc. Do not use the Infinity as a support to walk, sit or stand on. -
Page 5: Controls
3 Controls See chapter 6 for an overview of the symbols used in the descriptions. This manual will explain the controls for both push and turning knobs . Please check your device to see which description applies to your device. On / Off switch The on / off switch is located on the right side of the device. -
Page 6: Viewing Modes
Blocking the autofocus The Infinity will always start with the continuous Autofocus mode. In some circumstances (i.e. writing) it may be necessary to disable the continuous autofocus and enable the Fixed Focus. -
Page 7: Reading Aid
Press the button to adjust the brightness of the screen. Tableau The Infinity has a smooth moving X Y tableau. You can place a book, photo, magazine etc. to enlarge it on the screen. The tableau can be moved from right to left or left to right (X) or forwards and backwards (Y). -
Page 8: Brake Handles
Low Voltage Directive and the EMC Directive as laid out by the European Parliament and the Council of the European Union. Discarding the Infinity This symbol of the crossed out wheelie bin indicates that the product must not be disposed of with your other household waste. -
Page 9: Technical Specifications
Minimum - Maximum 3.5x – 54x (22” TFT) Focus Autofocus (incl. blocking option) Reading aid Reading line horizontal Dimensions Infinity Basic with TFT 56 x 52 x 43 cm 22” Weight 16.5 Kg Power SUpply Infinity Basic 12v DC / 2A TFT Monitor 100 –... -
Page 10: Control Overview
Should you have any questions after reading this manual, please contact: Rehan Electronics Ltd. Aughrim Rd., Carnew Wicklow Y14 NY60 Rep. of Ireland Tel.: 00353 (0) 53 9426742 Email: sales@rehanelectronics.ie Web.: www.rehanelectronics.ie 6 Control overview... - Page 11 Infinity VG-Out...
