Thank you for purchasing this Powell product. We want to make sure it is complete and to your satisfaction. Please check
all packing material carefully for small parts which may have come loose inside the carton during shipment. Hardware
can be identified by bright red packaging, Separate, identify, and count all parts and hardware to make sure they match
with the illustrations herein and are all present. If any part(s) are missing or defective please contact Powell Customer
Service. Contact information is given at the bottom of these instructions. If you feel the item is defective beyond a
resolution with part replacements, please return this product with your receipt to the place of purchase. If purchased from
an internet retailer, please contact their customer service department. Photo's and additional information may be
requested to validate the claim. Product is not to be returned to the Powell Company under any circumstance unless
authorized by the Powell Company or an authorized dealer or representative. Thank you.
ATTENTION: SOME LETTERED PARTS LISTED ON THE INSTRUCTION SHEET MAY NOT BE IN PARTS BAG AS THEY MAY ALREADY
BE ASSEMBLED. CAREFULLY CHECK PARTS AND PACKING MATERIALS PRIOR TO ORDERING REPLACEMENTS.
WARNING: DO NOT FULLY TIGHTEN SCREWS AND BOLTS UNTIL ALL PARTS HAVE BEEN ASSEMBLED PROPERLY.
TO PREVENT SCRATCHING THE TOP SURFACE, ASSEMBLE PRODUCT ON A SMOOTH SURFACE.
DO NOT OVER TIGHTEN SCREWS AND BOLTS.
This bed is designed to use only a mattress which is
74"- 75" long and 37-1/2" - 38-1/2" wide
Ensure thickness of mattress does not exceed 8"
and surface of mattress thickness is does not less
than 5"
Tools Required for assembly: Allen Wrench (included)
ASSEMBLY INSTRUCTIONS (ZMS)

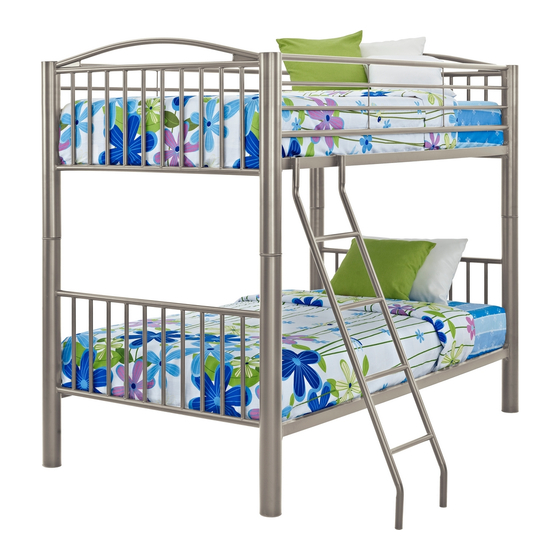

MODEL NO. 941-138
Replacement parts, including additional guardrails,
may be obtained from Powell Company.
PEWTER
938-138
BLACK
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the 941-138 and is the answer not in the manual?

Questions and answers

Summary of Contents for PowellKids 941-138

  • Page 1 ASSEMBLY INSTRUCTIONS (ZMS) MODEL NO. 941-138 PEWTER 938-138 BLACK Made in China Thank you for purchasing this Powell product. We want to make sure it is complete and to your satisfaction. Please check all packing material carefully for small parts which may have come loose inside the carton during shipment. Hardware can be identified by bright red packaging, Separate, identify, and count all parts and hardware to make sure they match...
  • Page 2 P P P P P ART ART S S S S S (A) UPPER PANELS(2) (B) LOWER PANELS(2) (C) LOWER BED FRAME (D) UPPER BED FRAME (E) GUARDRAILS(2) (F) LADDER (G) CONNECTION POSTS(4) (N) CAPS(8) N N N N N N N N...
  • Page 3 HARD HARD HARD W W W W W ARE HARD HARD (2 PCS) (8 PCS) (16 PCS) (16 PCS) (16 PCS) (1 PC) STEP 1...
  • Page 4 STEP 2 STEP 3...
  • Page 5 STEP 4...
  • Page 6 STEP 5...
  • Page 7 STEP 7 STEP 8...
  • Page 8 Please reference the following instruction if you want to change from a bunk unit to (2) free-standing beds.
  • Page 9 Never attach or hang items to any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts and jump ropes. DO NOT REMOVE THIS LABEL, KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. 941-138 MODEL NO. PEWTER 938-138 BLACK ©...
