LightSaver Max Operating Instructions

Technology

The LightSaver Max is made with amorphous silicon solar material, which is incredibly thin, flexible, lightweight, and durable. Our thin film solar technology is
also extremely sensitive to light. This means it works better in cloudy or shaded environments than traditional solar panels, turning on earlier and staying on
later each day.

Operation

The LightSaver Max collects energy from the sun when available, storing it in the internal battery. That energy is then available to charge a USB or 12V device
anytime, eliminating the need to leave your device out in the sun. The LightSaver Max can also be charged using USB or 12V inputs if the solar panel is fully
rolled up. A second LightSaver Max or another PowerFilm Solar panel (30W maximum) can be connected to the 12V input to increase solar charging speed.
Single button press -
Turns the outputs on, allowing the LightSaver Max to charge devices. Outputs will stay enabled until the system is shut off, or about 90
minutes have passed with no load on the outputs. If the LightSaver Max is fully discharged, it will disable the outputs. This protects against draining a device's
battery by turning it on and off, which is common in many other solar chargers.
Double button press - Changes the state of the flashlight. With the flashlight turned off, the first double press will turn the flashlight on to the high setting,
the second double press will change the flashlight to the low setting, and the third double press will shut it off.
Press and hold -
Turns off the LightSaver Max. After a press and hold, all LEDs on the outputs will be shut off, indicating the unit has been turned off.

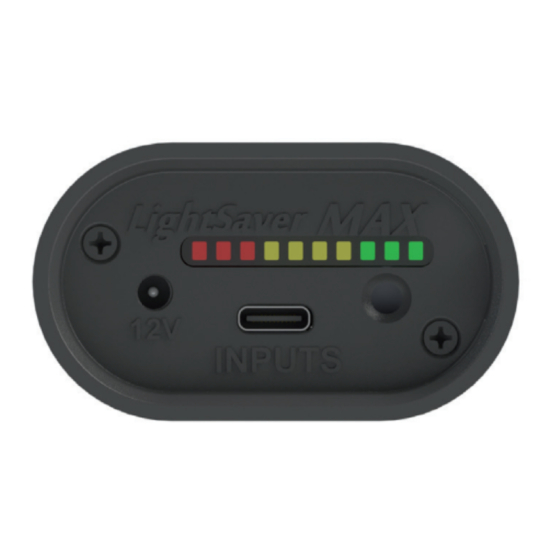

Reset button - If the Lightsaver Max becomes unresponsive and the display does not light up when connected to a charge source for a few seconds, reset the
LightSaver Max by carefully inserting a paperclip into the small hole between the display and the USB-C input pressing gently on the recessed button.

Caring For Your LightSaver Max

Avoid Physical Damage

The LightSaver Max's solar material is thin, light, and durable, but creasing or puncturing the solar panel will reduce efficiency. Reasonable care in handling
will ensure a long life.

Charging Temperatures

Avoid leaving the LightSaver Max on the dashboard of a hot car or in other similarly hot environments as the heat may damage the battery.
The LightSaver Max charges most effectively between 35 to 115 degrees Fahrenheit (2 to 45 degrees Celsius).
When charging the LightSaver Max from solar, roll the tube under the solar panel to prevent potential overheating of the batteries.

Avoid Excessive Water

A little water on the LightSaver Max is not a problem, but allowing significant water inside the unit may corrode components. Saltwater is particularly
corrosive and should be kept out of the device.

Specifications

Battery: 18,000mAh (60Wh) (Lithium-ion)
Weight: 1.5 lbs / 0.7 kg
Power In:
USB-C (3A), 12V (2A)
Power Out:
Dual USB-A (2.5A), 12V (5A peak)
Solar Charge: 6-8 hrs of full sun
Wall Charge: 3-4 hrs (12V) 6-7 hrs (USB-C) 8-10 hrs (USB)
Size Rolled: 13.5 x 2.5 in / 342.9 x 63.5 mm
Size Unrolled:
13.5 x 34.5 in / 876.3 x 342.9 mm
