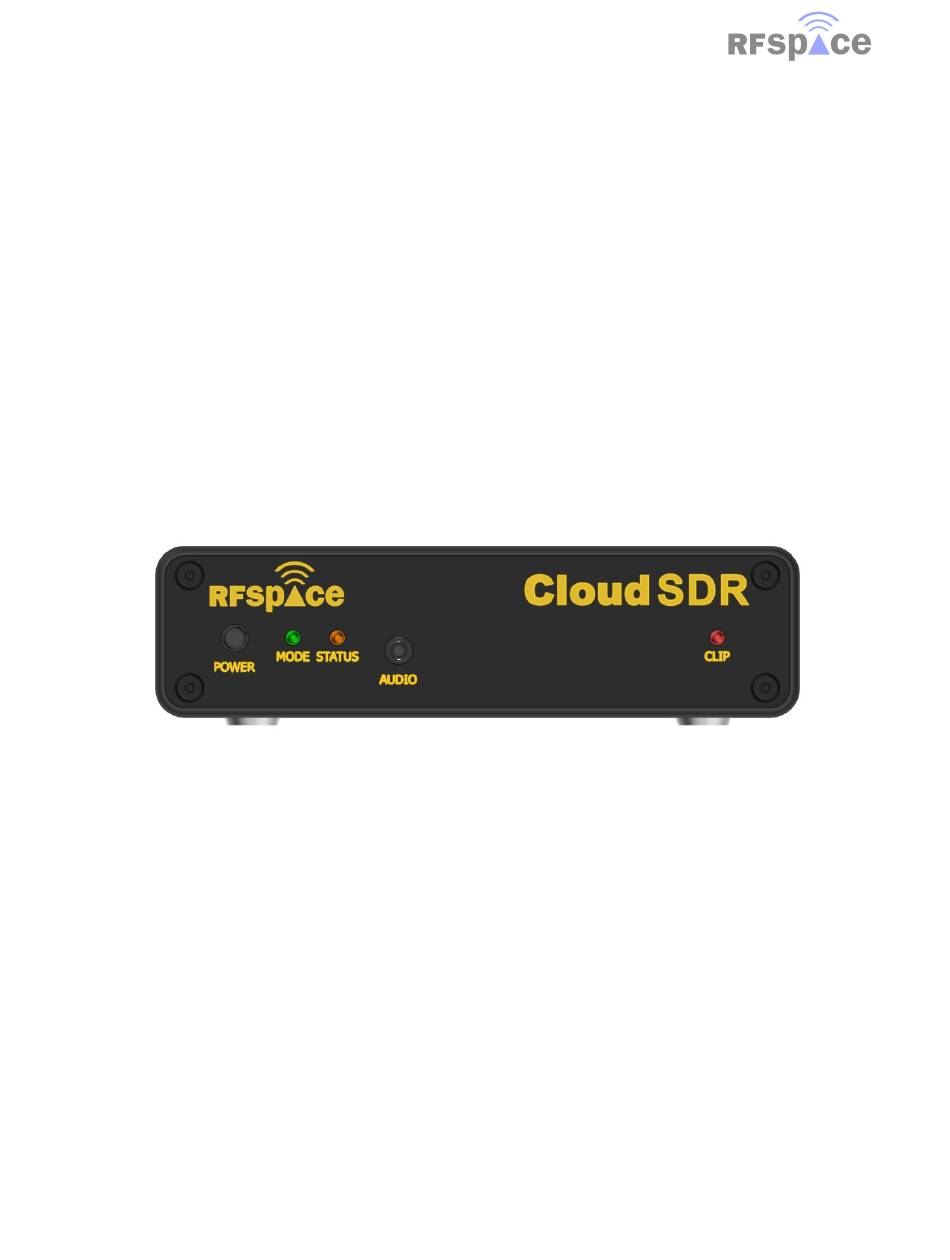

- Page 1 RFSPACE CLOUDSDR GETTING STARTED GUIDE Dec 2020 RFSPACE, Inc. CloudSDR User’s Guide...
-
Page 2: Table Of Contents
Table of Contents Legal Notices Supplied Accessories Precautions Hardware Specifications Introduction Front Panel Rear Panel Installation CloudSetup Application SDRanywhere Interface Specifications Compliance 13 Dec 2020 RFSPACE, Inc. CloudSDR User’s Guide... -
Page 3: Legal Notices
Warranty Period, at its option and to the extent permitted by law, RFSPACE will either (1) repair the hardware defect at no charge, using new or parts equivalent to new in performance and reliability, (2) exchange the product with a product that is new or equivalent to new in performance and reliability and is at least functionally equivalent to the original product, or (3) refund the purchase price of the product. -
Page 4: Precautions
Never operate the receiver with wet hands. Make sure antenna does not touch high voltage power lines. WARNING! Do not store or operate the device at temperatures below 0°C (+32°F) or above +40°C (+104°F). Dec 2020 RFSPACE, Inc. CloudSDR User’s Guide... -
Page 5: Hardware Specifications
4.5 - 5 Volts - 0.8 Amps Compliance CE, FCC, IC Dimensions 4.8 x 4.0 x 1.2 inches Serial Port RS-232 levels for external radio control and debug Warranty 1 year parts and labor. International shipping paid by customer Dec 2020 RFSPACE, Inc. CloudSDR User’s Guide... -
Page 6: Introduction
The SpectraVue software includes demodulation and I/Q capture of spectrum at up to a 2.048 MHz BW. For those interested in writing their own applications, RFSPACE supplies a fully documented protocol for communicating with the hardware as well as an open source application for MacOS, Windows and Linux. -

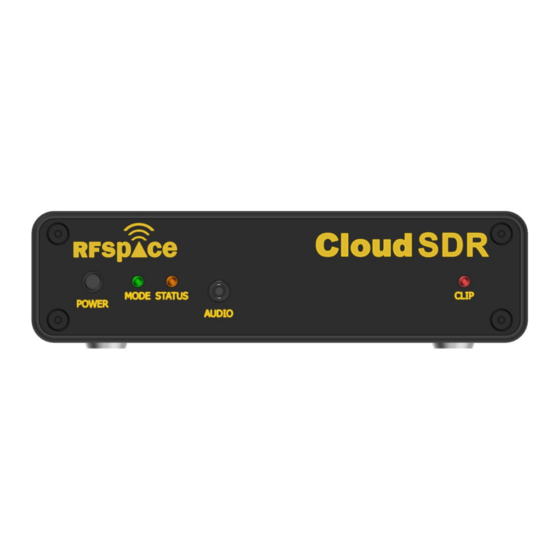

Page 7: Front Panel
Do not exceed max input levels to prevent input circuitry damage. The clip LED also blips during external or internal triggering or to show a missing 10 MHz external reference when enabled. Dec 2020 RFSPACE, Inc. CloudSDR User’s Guide... -
Page 8: Rear Panel
10. Reference input connector. This input is used to frequency lock the CloudSDR to 10 MHz. +1V max. 11. Power input. 4.5V - 5.0V input. Do not exceed 5.5 Volts or radio will power off. Dec 2020 RFSPACE, Inc. CloudSDR User’s Guide... -
Page 9: Installation
PC, follow the instructions for the CloudSetup application on the next page. CloudSDR Setup in SpectraVue software. Dec 2020 RFSPACE, Inc. CloudSDR User’s Guide... -
Page 10: Cloudsetup Application
RemoteSdrClient or SDRanywhere. This application is also used for firmware upgrades and to enable and disable the 10 MHz reference and control port. There is a full software manual for it in the CloudSDR section of the RFSPACE web- page. -
Page 11: Sdranywhere
SDRanywhere Android App The SDRanywhere application is an Android app that allows remote operation of an RFSPACE CloudSDR radio from anywhere in the world. The SDRanywhere application receives the demodulated audio and waterfall information from a remote radio. To download. Browse to http://www.sdranywhere.com... -
Page 12: Interface Specifications
RFSPACE supplies a simple, open-source application for the CloudSDR radio. This application is written using the QT framework and will compile for MacOS, Windows and Linux operating systems. This software is supplied with a free license to be used by RFSPACE customers wishing to create their own applications. ... -
Page 13: Compliance
The user must use the accessories and cables supplied by the manufacturer to get optimum performance from the product. FOR HOME OR OFFICE USE Dec 2020 RFSPACE, Inc. CloudSDR User’s Guide...
