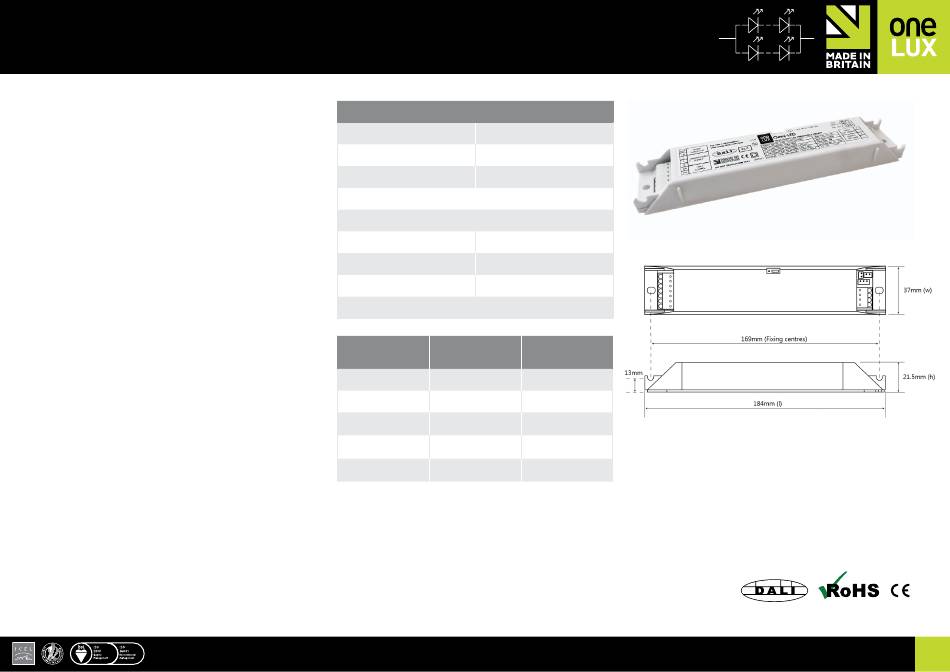

EMERGENCY | ONE-LED
OMNI-LED DST
| LED DALI EMERGENCY CONVERSION MODULE WITH SELF-TEST
TM
Product description
Omni-LED DST
is a range of DALI Self-Test emergency lighting
TM
conversion modules housed in a compact low-profile enclosure,
and suitable for use with maintained, self-contained LED luminaires.
Their constant-power driver technology has a SELV isolated output
and available in a range from 3V to 200VDC. They will run almost
any LED lamp or array (including some GU10 and Linear tubes),
so making it easy to produce a self-testing and addressable,
emergency version of your existing LED luminaire without the need
for separate 'emergency' LEDs or connectors.
They are available in 2, 3 and 4 cell versions for use with NiCd or
NiMH batteries.
Features
>
Fully compliant DALI, self-contained emergency lighting device (type 1)
>
Intelligent, automatic self-test scheduling for non-DALI applications
> Integral status/ identification sounder with user-override
>
Input for optional low-voltage emergency test initiation switch
>
Bi-colour red/ green status indicator LED with 500mm
leads supplied as standard
>
User-selectable 1 or 3 hour autonomy
>
Emergency output power (Typical) : 1.5W (2-cell), 3W (3-cell),
4W (55V 4-cell ), 3.5W (90V 4-cell ) and 3W (200V 4-cell)
>
3-pole switching provides full isolation of lamp connections and mains
driver's power supply during emergency operation (Compatible with
most driver types up to 2.5A)
>
Constant-current charger with reverse polarity and short-
circuit protection
>
Designed and manufactured in Great Britain
>
Complies with: EN60598-2-22, EN61347-1, EN61347-2-7, EN61347-2-
13, EN62034, EN62386, EN55015, EN61000-3-2, EN61547
Product specifications may be subject to change without prior notice.
Issue_4 Nov 2016
TM
Input Supply Voltage
Supply Frequency
Output Voltage of the Range
Maximum TC Point
Ambient Temperature Range
Battery Charge Time
Earth Leakage Current
IP Rating
Weight
Model Number
OL12/2/M3/DST
OL55/3/M3/DST
OL55/4/M3/DST
OL90/4/M3/DST
OL200/4/M3/DST
OL12 and OL55 products are SELV compliant.
All versions supplied in standard pack quantities of 50 weighing 5.0Kg
Accessories
See pages 5 to 7 for our range of batteries and battery accessories.
Common Technical Data
230V +/- 10%
50/60 Hz
3 - 200 Vdc
70°C
0°C - 50°C
24 Hours
<0.5mA
IP20
90g
LED Voltage
Number of
Range
Battery Cells
3 - 12V
2
9 - 55V
3
9 - 55V
4
55 - 90V
4
90 - 200V
4
www.one-lux.com
1
Advertisement
Summary of Contents for One Lux OMNI-LED DST OL12/2/M3/DST
- Page 1 EMERGENCY | ONE-LED OMNI-LED DST | LED DALI EMERGENCY CONVERSION MODULE WITH SELF-TEST Product description Common Technical Data Omni-LED DST is a range of DALI Self-Test emergency lighting conversion modules housed in a compact low-profile enclosure, Input Supply Voltage 230V +/- 10% and suitable for use with maintained, self-contained LED luminaires. Supply Frequency 50/60 Hz Their constant-power driver technology has a SELV isolated output and available in a range from 3V to 200VDC. They will run almost Output Voltage of the Range 3 - 200 Vdc any LED lamp or array (including some GU10 and Linear tubes), so making it easy to produce a self-testing and addressable, Maximum TC Point 70°C emergency version of your existing LED luminaire without the need...
-
Page 2: Technical Information
EMERGENCY | ONE-LED OMNI-LED DST | LED DALI EMERGENCY CONVERSION MODULE WITH SELF-TEST TECHNICAL INFORMATION Input Characteristics - Charging Mode Model Number Duration selection Circuit Watts* Input Current Inrush Current Power Factor 1 Hour 2.8W 0.03A 5A pk 0.45 OL12/2/M3/DST 3 Hour 0.03A 5A pk 0.45 1 Hour 2.8W 0.03A 5A pk 0.44... - Page 3 EMERGENCY | ONE-LED OMNI-LED DST | LED DALI EMERGENCY CONVERSION MODULE WITH SELF-TEST TECHNICAL INFORMATION LED lamp output - Shaded area indicates typical forward voltage (Vf) vs forward current (If) expected throughout discharge duration. 1.5W - OL12/2/DST 3W - OL55/3/DST LED voltage [V] LED voltage [V] 4W - OL55/4/DST...
- Page 4 EMERGENCY | ONE-LED OMNI-LED DST | LED DALI EMERGENCY CONVERSION MODULE WITH SELF-TEST TECHNICAL INFORMATION LED lamp output - Shaded area indicates typical forward voltage (Vf) vs forward current (If) expected throughout discharge duration. 3.5W - OL90/4/DST 79.5 84.7 89.8 LED voltage [V] 3.0W - OL200/4/DST 101.3...
- Page 5 EMERGENCY | ONE-LED OMNI-LED DST | LED DALI EMERGENCY CONVERSION MODULE WITH SELF-TEST BATTERY AND END CAP ACCESSORY ASSIGNMENT Applicable Battery Packs and End Caps to OMNI-LED models NiCd Batteries NiMH Batteries Model Number Duration selection NCD24SS NCD24BS NCD34SS NCD34BS NCD44SS NCD44BS NCD216SS...
- Page 6 EMERGENCY | ONE-LED OMNI-LED DST | LED DALI EMERGENCY CONVERSION MODULE WITH SELF-TEST ACCESSORIES | NICKEL CADMIUM (NiCd) BATTERIES Product description Common Technical Data > High temperature Nickel Cadmium batteries Absolute Maximum Temperature 70˚C for Emergency Lighting use > Suitable for use with all One-LUX products Maximum Continuous Temperature 55˚C > 1-year warranty Minimum Ambient Temperature 5˚C Charge Requirements C/20 for 24 hours Constant Current (CC) Properties...
- Page 7 EMERGENCY | ONE-LED OMNI-LED DST | LED DALI EMERGENCY CONVERSION MODULE WITH SELF-TEST ACCESSORIES | NICKEL METAL HYDRIDE (NiMH) BATTERIES Product description Common Technical Data > High temperature Nickel Metal Hydride Absolute Maximum Temperature 70˚C batteries for emergency lighting use > Suitable for use with all One-LUX products Maximum Continuous Temperature 50˚C > 1-year warranty Minimum Ambient Temperature 5˚C Charge Requirements...
-
Page 8: Installation
EMERGENCY | ONE-LED OMNI-LED DST | LED DALI EMERGENCY CONVERSION MODULE WITH SELF-TEST INSTALLATION protection against short-circuit of battery terminals. Normal charging will Disclaimers Lamp Connections should be kept as short as possible and under no resume automatically once a fault is removed. The mains supply should always circumstances exceed 1m for self-contained luminaires. Omni-LED DST module and its associated accessory products have been be disconnected when servicing the luminaire. manufactured and designed to comply with the requirements of EN60598-2-22 The Omni-LED DST module should be secured using both fixing points and in addition to the standards detailed on page 1 of this document. Operation the use of M4x 6mm screws are recommended for most applications. - Page 9 EMERGENCY | ONE-LED OMNI-LED DST | LED DALI EMERGENCY CONVERSION MODULE WITH SELF-TEST INSTALLATION & OPERATION Commissioning: Automatic Testing An Omni-LED DST module can be returned to standalone self test at any Once the luminaire has been installed and availability of the un-switched Once commissioned, the Omni-LED DST module will automatically time by disconnecting it from the DALI network and forcing a Function Test supply is deemed stable, connect the battery, then apply mains power determine if it is being used in Standalone Self-Test mode or connected to a from the test switch or by cycling the un-switched mains supply. (See page to begin the commissioning process. After applying power, the Omni-...
- Page 10 EMERGENCY | ONE-LED OMNI-LED DST | LED DALI EMERGENCY CONVERSION MODULE WITH SELF-TEST INSTALLATION & OPERATION Continued Module Status Information On Time Off Time Sounder LED Colour LED Status Purpose Action required (Seconds) (Seconds) Very Slow Flash Normal status with fully charged battery (Commissioned unit) None - In standby mode and operating as normal Green Slow Flash First 24 hour charge and Duration Test. (Non-Commissioned unit) None - Await commissioning process to complete Fast Flash Function Test or Duration Test in progress. (Commissioned unit)
- Page 11 EMERGENCY | ONE-LED OMNI-LED DST | LED DALI EMERGENCY CONVERSION MODULE WITH SELF-TEST INSTALLATION Wiring diagrams www.one-lux.com...
