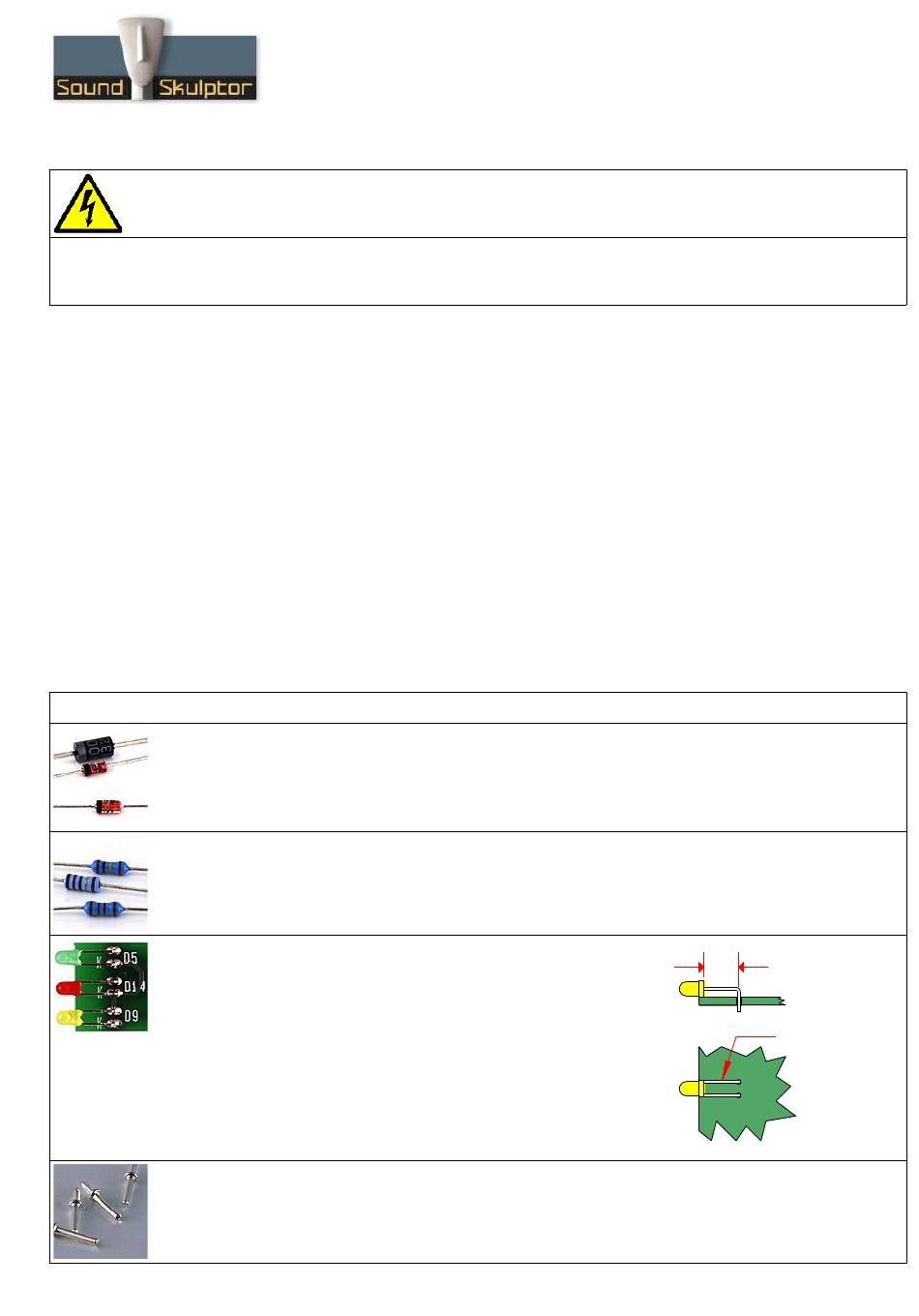

PSL1 Assembly guide

Safety warning

THIS KIT IS NOT FOR BEGINNERS !

This kit is main powered and use potentially lethal voltages. Under no circumstance should someone undertake the

realisation of this kit unless he has full knowledge about safely handling main powered devices.

Please read the "DIY guide" before beginning.

Print or open the following documents :

• PSL1 Schematic

• PSL1 Components layout

• PSL1 Parts list

• PSL1 Setup guide

Follow this guide from item number 1 till the end, in this order. The assembly order is based on components height, from

low to high profile, in order to ease the soldering process : The component you are soldering is always taller than the

previously assembled ones and it is pressing nicely against the work area foam.

PSL1 Assembly guide

Diodes

Add D1 to D4, D6 to D8, D10 to D13. Use a lead forming tool to cleanly bend the leads at 0.4"

except for D11 which is bent at 0,5".

Warning

: Make sure to respect the direction of the diodes which is marked by a ring on the component

and a double line on the PCB marking.

Resistors

Add R1 to R9. Control the resistor values with a digital multimeter. Bend the leads at 0.4" with a lead

forming tool.

Leds

Add D5, D9, D14.

Bend the leads at 7mm from the body taking care of the anode position

(the longest lead).

Warning

: it is easy to bend the leads in the wrong direction !

Solder the LED so it rests on the board. Start by soldering one lead,

adjust the position, then solder the second lead.

Test pins

Solder the 4 test pins TP1 to TP4.

Document revision 1.1 – Last modification : 21/04/08

www.soundskulptor.com

7.00 mm

Anode : long lead
