SmartSense GPS Locator How To Use

How do I use my
Smartsense
GPS locator
What's in my smart pack

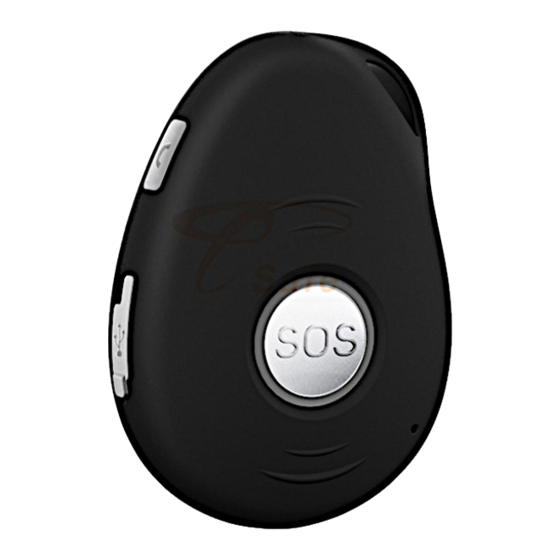

Smartsense GPS locator
Battery recharge docking station
240v to 5v charger
USB cable
SIM card (internal) with phone number
Lanyard, key ring and pouch holder
Instructions

Charging the locator battery

Un-pack the docking station and USB cable. Plug the USB mini plug into the
docking station, plug the larger USB plug in to the 240v charger and plug the
charger into a power outlet.
The docking station will show a
Place the locator into the docking station making sure you seat it properly so that
it can't move, if it moves around you need to push in down slightly. Once it is
seated the docking station will show a
When the locator shows a
after three hours and can be removed from the docking station or left until required.
The green and blue lights on the locator will be on, indicating that the locator is
operating and will begin to send location positions to smart-tracking.com (Internet)
and mobile application
We have programed the locator to be in Smart Power Saving mode with 2 minute
location updates so the locator battery will last at least two days with re-charging
required on the second night

Turning on the locator

By placing the locator into the powered docking station, the locator will start up and
start to send position location messages to the Smart Online Tracking System
(Internet). When not in the docking station you can also press the on/off button on
the side for one second to turn it on. To turn the locator off, push the SOS and
side button together for one second. The locator can stay turned on at all times.
When the green locator light is flashing
is connected to the mobile network and to the Tracking System (Internet).
A single flashing green light indicates that the locator is only connected to the
mobile network for SOS SMS and calls. The blue locator light will flash
once quickly every 3 seconds
flashing blue light indicates no GPS connection, try outdoors or another position.
In the pre-set Smart Power Saving mode, when there is no movement, the GPS
will go to sleep to conserve battery life and the blue indicator will turn off. Every 10
minutes it will wake and send one message and then go back to sleep. If GPS can
not get a fix it will send the last known location after waking and no movement.
Once movement occurs the GPS will immediately awake, the blue light will come on
and a GPS fix position message will be sent to the Tracking System every two
minutes, or until it detects no movement after which it will go back to 10 minute
messages
When needing to locate a wearer, the time interval for location message delivery
can be increased from two minutes to every minute in the Tracking system
application (Internet) or by sending an SMS
the mobile app, click on the 'spanner' icon to go to time interval settings. Move the
slide bar a little to change the interval setting.
NOTE: The battery will deplete quicker when time interval set to 1 minute so set
back to 2-5 minutes when less frequent location messages required
slight red glow to indicate that it is on.
bright red glow
slight red glow again, the locator is fully charged usually
twice quickly every 3
when receiving GPS satellite positions. A slow
TI01M to the locator phone number. In
to indicate it is charging.
seconds, you locator
Locator name:
Locator Phone No:
SIM card recharge Ac No:
SIM card recharge Password:
on/off & phone call button
