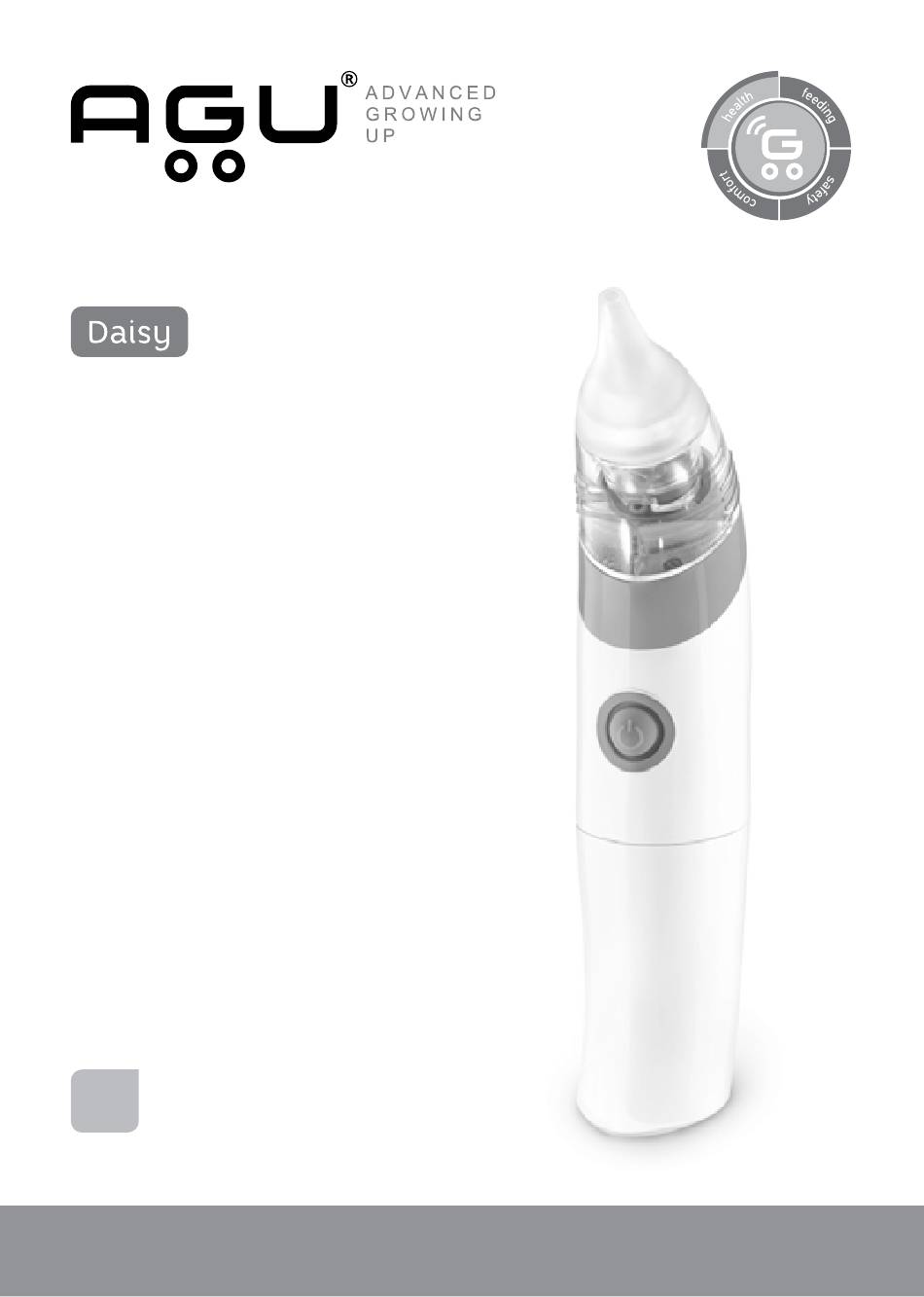

- Page 1 ASPIRATOR NASAL AGU NS15 USER MANUAL agu–baby.com...
-
Page 2: Table Of Contents
NASAL ASPIRATOR AGU NS15 TABLE OF CONTENTS Introduction .......................3 List of symbols ....................3 Important information before use ............... 5 Product overview ....................7 Battery installation/replacement..............8 Instruction for use ................... 9 Care and maintenance ................. 11 Troubleshooting .....................14 Technical specification ..................14 Technical data ....................15... -
Page 3: Introduction
INTRODUCTION Nasal aspirator AGU NS15 is specially designed to clear mucus in newborn babies and infants in home environment and/or while travelling. Nasal aspirator AGU NS15 is a medical device. How to use Insert aspiration tip into a nostril, after that the device is ready to remove nasal secretions. - Page 4 WEEE (EC Directive on Waste Electrical and Electronic Equipment). This marking means that the device should not be disposed of together with household waste. In order to prevent a possible damage to the environment and harm to human health, such waste should be segregated from other types of waste and disposed of in accordance with the relevant accepted standards.
-
Page 5: Important Information Before Use
IMPORTANT INFORMATION BEFORE USE The device is designed to remove nasal secretion and mucus in children (age 0~3 years old) in at-home environment. WARNING! Do not modify this device in any way without authorization of the manufacturer. 2. Do not expose the device to high / low temperature, very high humid- ity level. - Page 6 16. The Tip may cause potential allergic reactions. This nasal aspirator must only be used with AGU NS series tip. Please contact shops and pharmacies to buy those accessories.
-
Page 7: Product Overview
PRODUCT OVERWIEW Silicone Tip L Mucus cup Silicone Ring Silicone Tip S Collar Main Body Button Battery cover... -
Page 8: Battery Installation/Replacement
BATTERY INSTALLATION / REPLACEMENT Gently slide the battery cover back. 2. Carefully remove the old batteries properly dispose them. 3. Insert or replace batteries into the battery compart- ment, ensuring to match indicated polarity symbols. Always use new batteries. 4. Replace the battery cover. NOTE •... -
Page 9: Instruction For Use
INSTRUCTION FOR USE Choose the correct tip to use, Silicone Tip L according to shape and size of the nostrils of your baby. Silicone Tip S 2. Be sure to place the tip securely on the aspirator. Make sure the Tip is completely covering the rib before using. - Page 10 Keep your baby upright and insert the tip into one of nostril. Avoid excessive pressure on the wings of the nose and deep placement of tips into the nasal cavity. Keep the aspirator vertically, slightly deflecting a child to the side. The nasal aspirator removes mucus without additional real external impact on the device.
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE Make sure that both parts of the device (main unit and battery cover) are tightly seated together. 2. With a gentle movement, disconnect the mucus cup with the tip from the aspirator body. 3. Remove the silicone gaskets. Click... - Page 12 CLEANING PROCESS OF MUCUS CUP, HEAD MODULE AND ASPIRATION TIP Make sure that all parts of the device are tightly connected. Click Immerse the device in clean water as shown and press the button (hold for no more than 15 seconds). Perform this procedure several times (change the water if necessary).
- Page 13 The mucus cup and tips must be washer in warm water using mild soap. Then the mucus cup and tips must be washed under hot tap water for 3 min. Upper part of the device may be rinsed with water - as indicated in the picture.
-
Page 14: Troubleshooting
Product Nasal aspirator Model AGU NS15 Maximum discharge pressure 65 kpa Sound pressure level 74 dB (30 cm away from the AGU NS15) Aspiration tip soft silicone Motor 3V DC Temperature: 5°C ~ 40°C, Operational conditions Humidity: 15% ~ 93% (non-condensing) -
Page 15: Technical Data
Warranty period 2 years *Notice: the manufacturer has the right to introduce changes into the device design. TECHNICAL DATA Nasal aspirator AGU NS15 conforms to the provisions of the EC directive MDD (93/42/EEC). GUIDANCE AND MANUFACTURER’S DECLARATION ELECTROMAGNETIC EMISSIONS The Nasal aspirator AGU NS15 is intended for use in the electromagnetic environment specified below. - Page 16 RF emissions CISPR 11 Class B The nasal aspirator AGU NS15 is suit- able for use in all establishments, includ- Harmonic emissions ing domestic establishments and those IEC 61000-3-2 applicable directly connected to the public low-volt- Voltage fluctuations/ age power supply network that supplies...
- Page 17 3 V/m 3 V/m Portable and mobile RF communications 80 MHz equipment should be used no closer to any part of the nasal aspirator AGU NS15, to 2,5 GHz including cables, than the recommended 61000-4-3 separation distance calculated from the equation applicable to the frequency of the transmitter.
- Page 18 Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. RECOMMENDED SEPARATION DISTANCES between portable and mobile RF communications equipment and the AGU NS15. is intended fo use in an electromagnetic envi- nasal aspirator AGU NS15 ronment in which radiated RF disturbances are controlled.
-
Page 19: Storage, Transportation And Operation Rules
STORAGE, TRANSPORTATION AND OPERATION RULES The device should be transported at a temperature of -10°C ~ 50°C with a maximum relative humidity of 93% or less. The device can be operated at a temperature of 5°C ~ 40°C with a relative humidity of 15 ~ 93%. - Page 20 The warranty does not cover the consumable parts, components and constituent elements, namely, battery, package. The warranty and free maintenance service are not provided in case: • the device is used with violation of the requirements set by the operation manual; •...
- Page 21 WARRANTY CERTIFICATE AGU NS15 Serial number Date of purchase Name of salesperson Signature of salesperson The set completeness and operation of the device are tested in the presence of the buyer. Name of purchaser Signature seal of retailer of purchaser...
- Page 22 Applications to service and repair center AGU NS15 Date Reason Recommendations Date Reason Recommendations Date Reason Recommendations...
- Page 23 Manufacturer: Asia Connection Co., Ltd. 16F-1, No. 16, Jian Ba Road, Chung Ho District, New Taipei City 23511, Taiwan, Republic of China. Authorized representative in the EU: Obelis s.a. Boulevard General Wahis 53, 1030 Brussels, Belgium. 1639 agu–baby.com...
- Page 24 AGU® is the registered trademark by Montex Swiss AG, Tramstrasse 16, CH–9442, Berneck, Switzerland...
