Summary of Contents for J.E. Adams 8670 Series

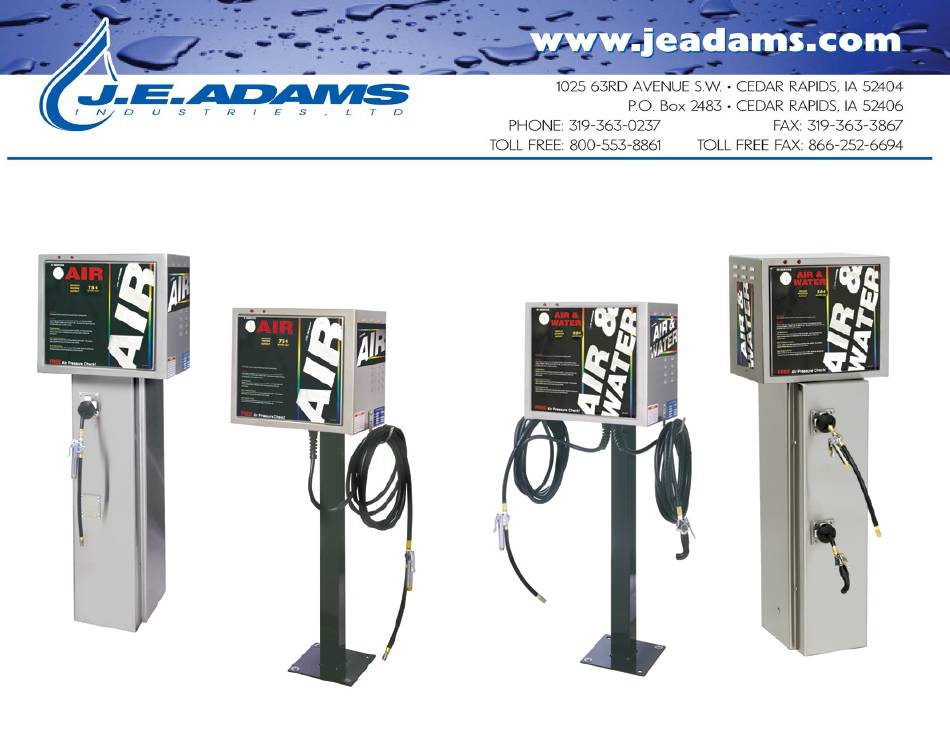

- Page 1 8670 SERIES MANUAL...
-
Page 2: Table Of Contents
TIMER SETUP……………………………………………………………..7-10 SSAC SETUP………………………………………………………………………………………. INFITEC SETUP…………………………………………………………………………………… TIMER SETTINGS CHART………………………………………………………………………. TYPICAL TIMER SETTINGS…………………………………………………………………….. MAINTENANCE……………………………………………………………. 11 PARTS BREAKDOWN…………………………………………………….. 12-13 AIR MACHINE & WATER………………………………………………………………………… REEL BASE………………………………………………………………………………………… SCHEMATICS………………………………………………………………. 14-15 8670 SERIES WITH SSAC……………………………………………………………………… 8670 SERIES WITH INFITEC ASCR54………………………………………………………. BASIC TROUBLESHOOTING…………………………………………... 16 8670 SERIES MANUAL 8/4/10... -
Page 3: Product Information
There may be more than one key number depending on unit. Please keep this information with your records. MODEL#:_________________________________________ SERIAL#:_________________________________________ KEY NUMBER(S):_________________________________ DATE PURCHASED:_______________________________ DISTRIBUTOR:___________________________________ J.E. Adams Industries 1025 63 Ave. S.W. Cedar Rapids, IA 52404 1-800-553-8861 www.jeadams.com... -
Page 4: Specifications
SPECIFICATIONS: Unit specifications: Voltage: 120v, 60Hz Amperage: (1) 20 amp service for air/water or air only. “Only on units which in include (1)10 amp service for air/water or air only the letters TT OR G in model #. (Example 8670-2TTA or 8670-2GA). Do not attempt to hook other models up in this fashion. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE) WARNING – To reduce the risk of fire, electric shock, or injury: Use only as described in manual. Use only manufactures recommended attachments. Do not allow to be used as a toy. -
Page 6: Wiring Info
AIR MACHINE MOUNTING DIMENSIONS... -
Page 7: Timer Setup
TIMER SETUP – SSAC TIMERS Note: “AE” and “AN” model SSAC timers are accumulating timers. During use, timing can be extended proportionately by adding more coins. The SSAC timer has two adjustable settings: Time per coin (in minutes) and number of coins to start. Time per coin: Time per coin is the amount of time the unit will run per coin inserted and can be set from 0.1 minutes (6 seconds) to 12.7... -
Page 8: Infitec Setup
TIMER SETUP – INFITEC TIMERS The Infitec timer has two adjustable settings: Total run time (in seconds) and number of coins to start. Total run time: Total run time is the amount of time the unit will run once activated and can be set from 1 second to 1023 seconds (17 minutes and 3 seconds) in increments of 1 second by turning on the correct switches until their values equal the desired time. -
Page 9: Timer Settings Chart
IDX Timers: Time Per Coin (In Seconds) Infitec Timers: Total Run Time (In Seconds) Time Per Coin (In minutes) 0.1 x Coins to Start Table 2: Timer Settings Chart Note: “X” indicates a switch in the “on” position... -
Page 10: Typical Timer Settings
IDX TIMER SETTINGS SSAC TIMER SETTINGS INFITEC TIMER SETTINGS Amount to Total Run Switches in "On" Amount to Total Run Switches in "On" Amount to Total Run Switches in "On" Start Time Position Start Time Position Start Time Position 25¢ 2 MIN 8, 16, 32, 64 25¢... -
Page 11: Maintenance
MAINTENANCE Check air nozzle for signs of wear and abuse. Replace as needed. Clean air cabinet as needed with a non abrasive stainless steel cleaner. Examine air hose for cuts or wear and replace as needed. Every month remove filter from compressor and clean. -
Page 14: Schematics
!! IMPORTANT !! WATER SOLENOID BLACK TO NO BLACK TO B *20AMP SERVICE IS REQUIRED 12 GA BLACK ONLY USED WITH UNITS FOR DEVILBISS UNITS* WITH WATER FEATURE 18GA BLACK !! IMPORTANT !! POWER ON 8673-9 THOMAS (BROWN) 18GA BLACK *10AMP SERVICE IS GAST (BLACK) DEVILBISS (BLACK) -
Page 15: 8670 Series With Infitec Ascr54
!! IMPORTANT !! WATER SOLENOID BLACK TO 2 8712iD BLACK TO 3 *20AMP SERVICE IS REQUIRED ONLY USED WITH UNITS FOR DEVILBISS UNITS* WITH WATER FEATURE 18GA BLACK !! IMPORTANT !! POWER ON 8673-9 THOMAS (BROWN) 18GA BLACK *10AMP SERVICE IS GAST (BLACK) DEVILBISS (BLACK) REQUIRED FOR TWIN... -
Page 16: Basic Troubleshooting
TROUBLESHOOTING INFORMATION: STARTS BUT NO PRESSURE SYSTEM LEAKING CHECK AIR HOSE FOR LEAKS AND AIR CHUCK. ALSO CHECK FOR LEAKS AROUND COMPRESSOR. CHUCK IS CLOGGED CHECK AIR CHUCK TO MAKE SURE NO DEBRIS IS AIR PATH. ALSO CHECK ORING AROUND AIR CHUCK, IS IT BLOCKING THE AIR PATH.
