Helmholz EasyConnect 700-901-1BB30 Manual

PROFINET-Connector, RJ45, EasyConnect®, 145°, 700-901-1BB30
Version: 2 / 29.10.2019
Intended Use
The field-assembled RJ45 connector for PROFINET, Modbus, and EtherCAT is easy and quick to install. With
a PROFINET cable of up to 100 m length, Ethernet components such as a PROFINET station can be
connected. In addition, the RJ45 connectors are designed in protection class IP20 and for transmission rates
up to 100 Mbps.
Features
- Color-coded contact elements help to avoid connection errors
Transmission rates up to 100 Mbps
-
No loose individual parts
-
Tool-free installation
-
- EasyConnect® RJ45 connection (IDC) for industrial applications
- For PROFINET, Modbus, and EtherCAT
- 145° cable outlet

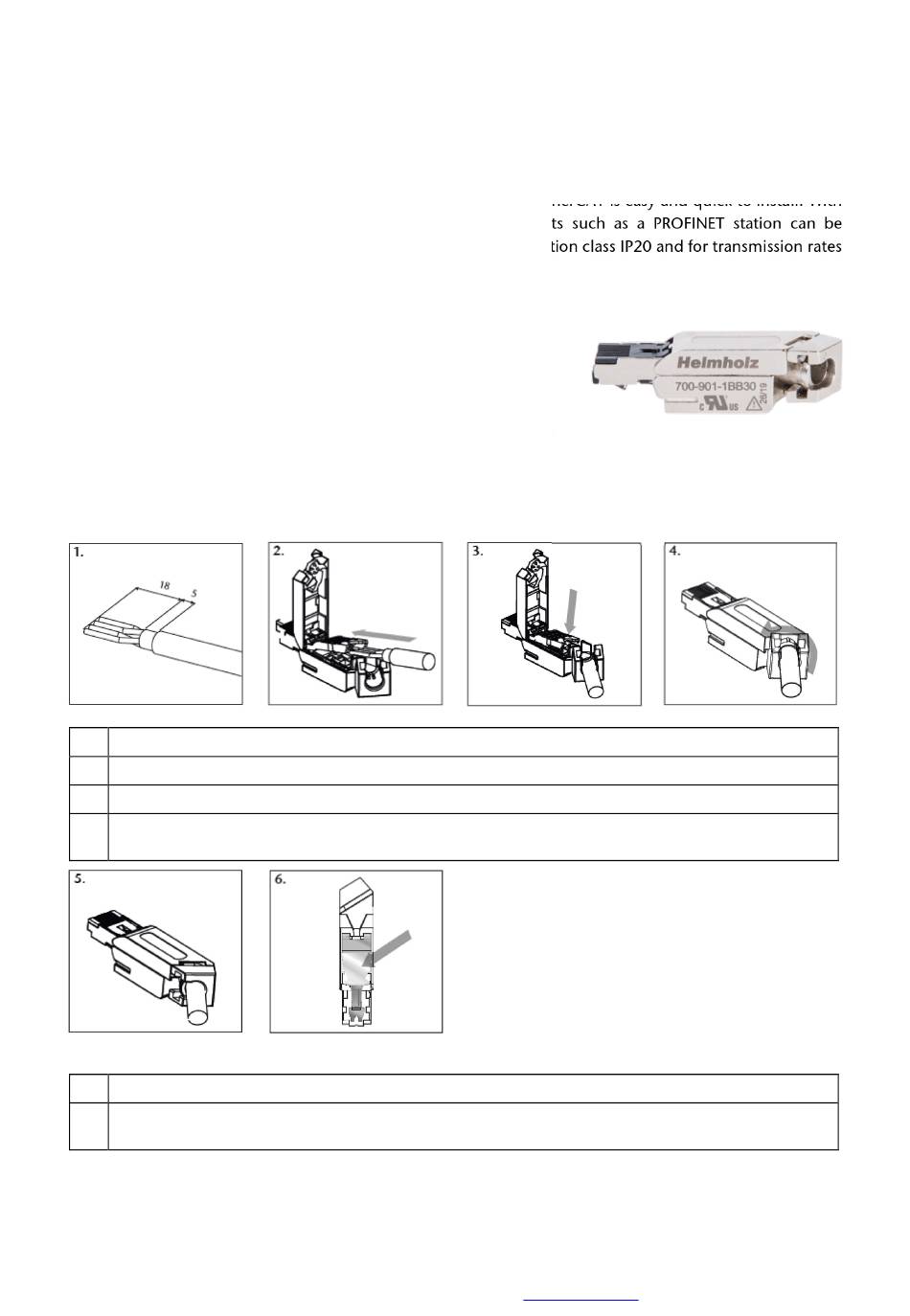

Assembly instructions
1. Lay out the stripped wires in accordance with the color coding of the RJ45 connector
2. Insert the wires into the contacts of the RJ45 connector as far as the limit stop
3. Press down on the contacts up to the limit stop to complete the connection
4. Close the housing cover and turn the sealing piece in the direction of the arrow. For a better lever
for proper sealing of the plug, insert a small screwdriver into the hole of the sealing piece
5. The connector is correctly locked when the screw cap is securely tightened
6. Release: Completely insert plug and mechanically relieve. Then push the release spring down at
the marked position
