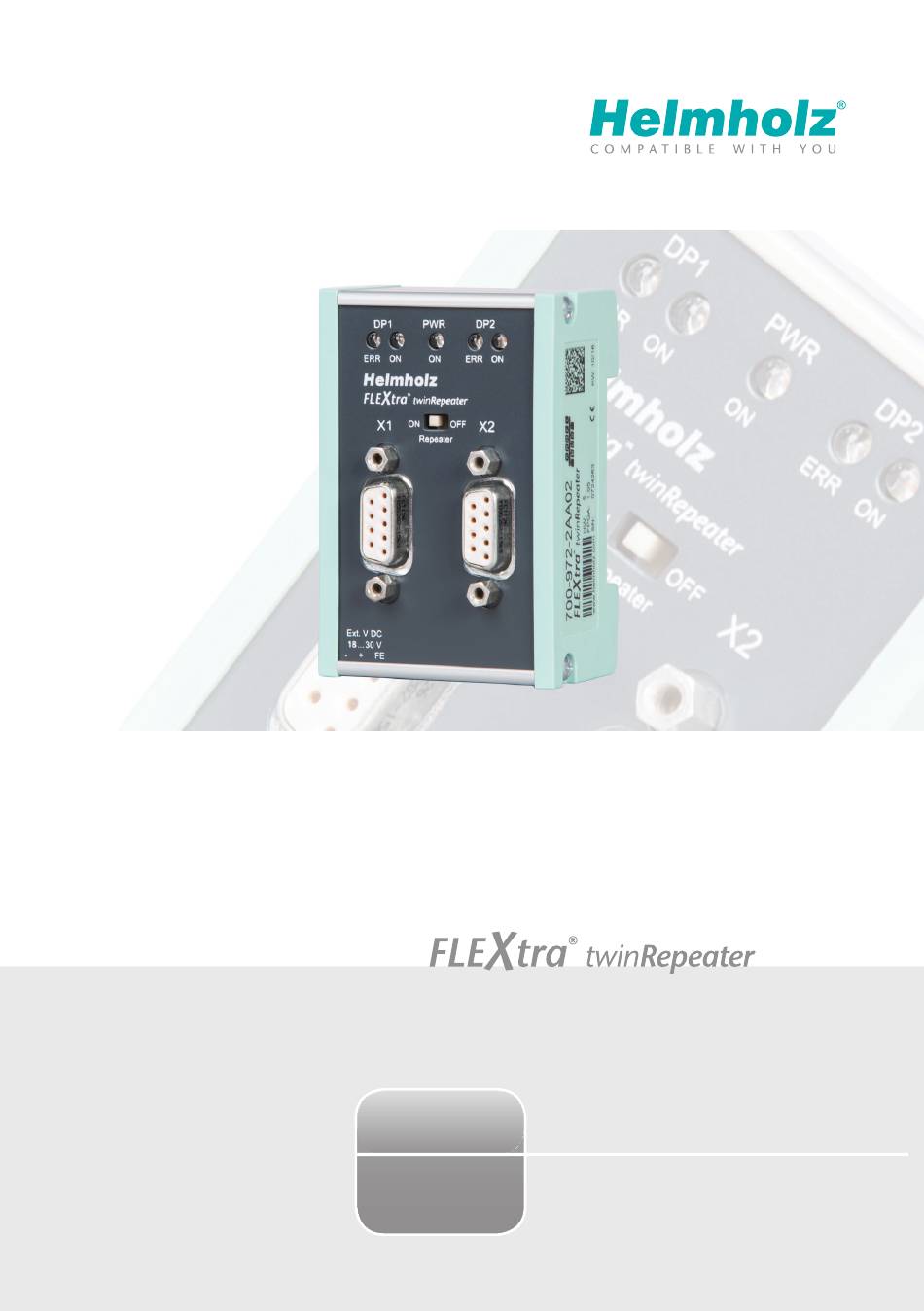

- Page 1 Brief Instruction Version | from HW 4 www.helmholz.com...

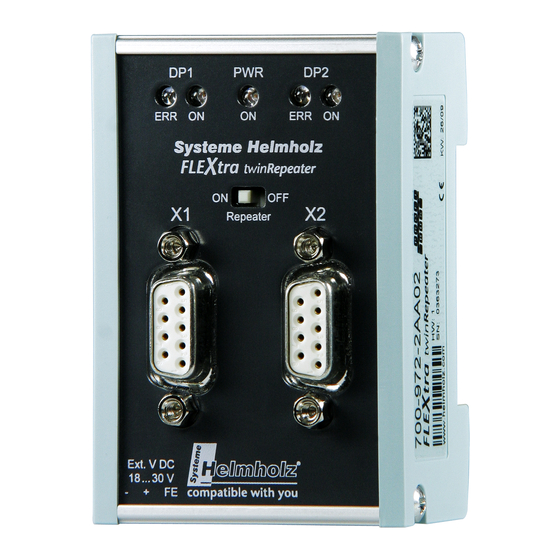

- Page 2 Brief Instruction FLEXtra® twinRepeater Application and functional description In spite of its compact design, the FLEXtra® twinRepea- ter is a completely normal PROFIBUS Repeater. It regenerates the signals in flank slope, level and duty cycle. Mounting The FLEXtra® twinRepeater is suitable for mounting on a DIN rail.
- Page 3 Brief Instruction FLEXtra® twinRepeater LED description DIP switch DP 1/2 -ON- -ERR- -ON- Repeater Baud rate is detected, the FLEXtra® twinRepeater is restarted Automatic restart e.g. in the case of signal loss FLEXtra® twinRepeater ready for operation, baud rate detected Repeat function deactivated Invalid telegrams are received There is a short circuit...
-
Page 4: Application Examples
Brief Instruction FLEXtra® twinRepeater Application examples Example 1: Extension of a bus. PROFIBUS Slave Helmholz TB20-C | PROFINET IO . . . FLEXtra twinRepeater ® Ext. V DC 18 ... 30 V . . . “R” ON “R” ON “R” ON “R”... - Page 5 Brief Instruction FLEXtra® twinRepeater Application examples Example 3: Complex bus structure PROFIBUS PROFIBUS Slave Slave Helmholz Helmholz TB20-C | PROFINET IO TB20-C | PROFINET IO . . . FLEXtra twinRepeater ® Ext. V DC 18 ... 30 V “R” ON “R”...
-
Page 6: Technical Data
Our customers are important to us. We are always glad to receive suggestions for improvement and ideas. Systeme Helmholz GmbH | Hannberger Weg 2 | 91091 Großenseebach | Germany Phone +49 9135 7380-0 | Fax +49 9135 7380-490 | info@helmholz.de | www.helmholz.com...
