Summary of Contents for AEMC instruments Simple Logger L220

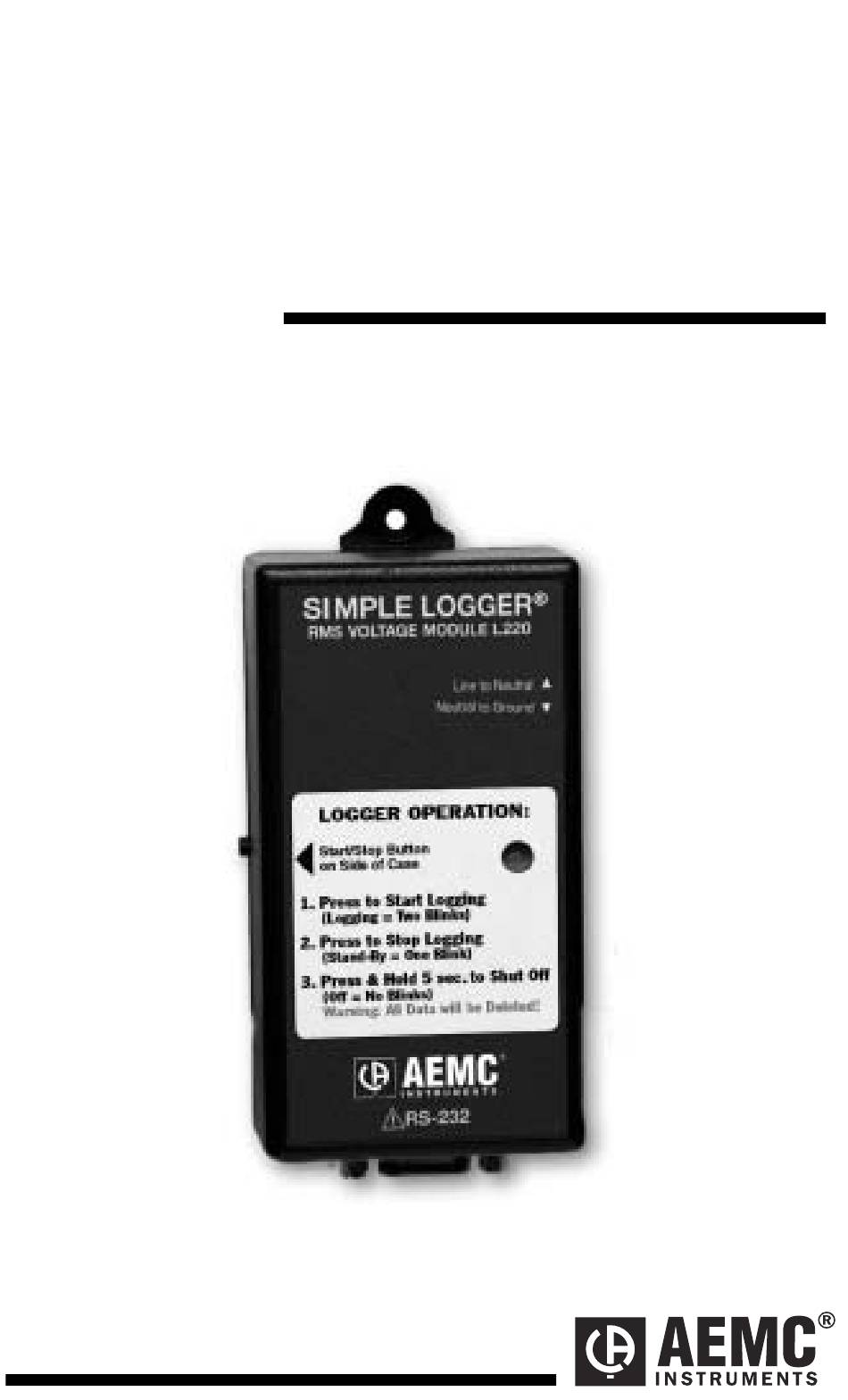

- Page 1 Simple Logger ® RMS Voltage Module Model L220 USER MANUAL Requires software version 6.11 or higher...
- Page 2 Limited Warranty The Model L220 is warranted to the owner for a period of two years from the date of original purchase against defects in manufacture. This ® limited warranty is given by AEMC Instruments, not by the distributor from whom it was purchased.
-
Page 3: Table Of Contents
Table of Contents Warning ....................3 International Electrical Symbols .............. 3 Receiving Your Shipment................ 4 Packaging....................4 Specifications ..................4 Features ....................6 Indicators and Buttons ..............6 Inputs and Outputs ................7 Mounting ................... 7 Battery Installation ................7 Operation.................... -
Page 4: Warning
® Simple Logger Model L220 Warning These safety warnings are provided to ensure the safety of personnel and proper operation of the instrument. • Read the instruction manual completely and follow all the safety information before attempting to use or service this instrument. •... -
Page 5: Receiving Your Shipment
® Simple Logger Model L220 Receiving Your Shipment Upon receiving your shipment, make sure that the contents are consistent with the packing list. Notify your distributor of any missing items. If the equipment appears to be damaged, file a claim immediately with the carrier and notify your distributor at once, giving a detailed description of any damage. - Page 6 ® Simple Logger Model L220 Battery Life Recording: Up to 1 year continuous recording @ 25°C Output: RS-232 via DB9 connector, 1200 Bps INDICATORS Operation Mode Indicator: One Red LED • Single Blink: Stand-by mode • Double Blink: RECORD mode •...
-
Page 7: Features
® Simple Logger Model L220 Features Model L220: SIMPLE LOGGER ® RMS VOLTAGE PLUG-IN L220 Line to Neutral Neutral to Ground LOGGER OPERATION: Start/Stop Button on Side of Case 1. Press to Start Logging (Logging = Two Blinks) 2. Press to Stop Logging (Stand-By = One Blink) 3. -
Page 8: Inputs And Outputs
® Simple Logger Model L220 Inputs and Outputs ® The bottom of the Simple Logger has a female 9-pin “D” shell serial connector used for data transmission from the data logger to your computer. Mounting The Model L220 is a plug-in module for direct connection to a standard 110V US plug. -
Page 9: Operation
® Simple Logger Model L220 Operation Measurement Selection - Prior to the start of a recording session, the operator must determine whether line-to-neutral voltage will be recorded or if stray, neutral-to-ground, voltage is to be recorded. Slide the measurement selector switch on the right side of the unit to the proper position (Line to Neutral or Neutral to Ground) for recording. -
Page 10: Using The Software
® Simple Logger Model L220 Auto Run Enabled: If Auto Run is enabled, insert the Simple drive into the USB slot drive and follow the on-screen ® Logger prompts to complete the setup. • Select Exception Logger EVL 6.00 for the Exception Voltage Logger Model L215 •... -
Page 11: Repair And Calibration
® Simple Logger Model L220 Repair and Calibration To ensure that your instrument meets factory specifications, we recommend that it be submitted to our factory Service Center at one-year intervals for recalibration, or as required by other standards or internal procedures. For instrument repair and calibration: You must contact our Service Center for a Customer Service Authorization number (CSA#). - Page 12 ® ® Chauvin Arnoux , Inc. d.b.a AEMC Instruments 15 Faraday Drive • Dover, NH 03820 www.aemc.com 99-MAN 100211 v9 09/18...
