Summary of Contents for Doss NF-8209
- Page 1 MODEL:NF-8209 Network Cable Tester INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL ORIGINAL AUTHENTIC VER: V2...
-
Page 2: Table Of Contents
Table of Contents Read the precautions before your operation Overview..............0 1 ● Please do not place the device in a location that is dusty, Keypard display and features......01 humid, or hot (above 40°C). Product Operation..........03 ● Please use a battery that meets the specifications, 1.Continuity testing..........03 otherwise the device may be damaged. -
Page 3: Overview

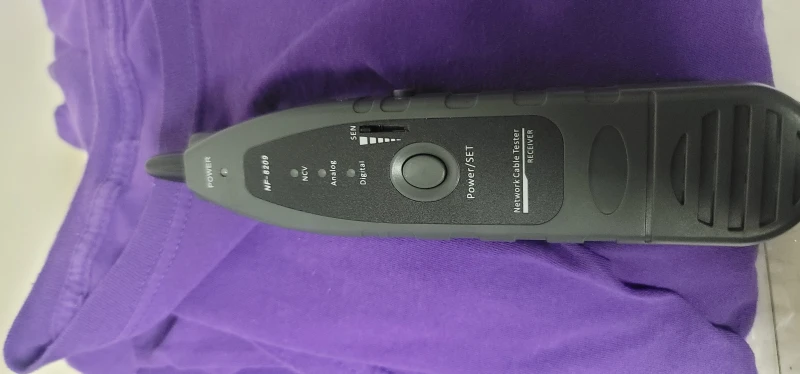

Overview NF-8209 is a new generation to offer digital and analog Lamp signaling all in one network toner and probe. It has three modes for options to track cable like digital mode, analog Power Lampcontrol mode and PoE mode. That means it's equipped with the most powerful cable location technologies for any work environment. -
Page 4: Product Operation
1.1 Possible results Product Operation Turn on the device and enter the below main Menu Only if a cable exsits short circuit, no matter it exsits cross, breakage or not,the testing result will only display “Short” information. If it doesn't exsit short circuit, then it would display what actually it is. -
Page 5: Length Measurement
mode on receiver accordingly. After that, hold the receiver to 2. Length measurement locate cable at the other end, the loudest voice is the correct one. Connect one end of cable to “Length/Port flash” port, disconnect the cable at far end, choose “Length” on the main SCAN SCAN SCAN... -
Page 6: Port Flash & Switch Details Testing
4.2 Non-standard PoE device 6. Setting If the PoE device is non-standard, it can also test POE voltage, 6.1. Backlight setting power supply polarity, power supply mode, but it can't tell the Adjust the backlight time among 15s, 30s, 60s, on, and off. type of PSE, just display “Non standard”. -
Page 7: Accessories
6.5. Version information LCD display 128*64 Dot-matrix with backlight To check version information of software and hardware . Power supply AAA battary *3 Low battary warning 2.7V Setting Auto-off time 15min/ 30min/ 60min/ OFF EMITTER Hardware:V1.0 Software:V1.0 Voltage protection DC48V 5mA Max working current <150mA Size... -
Page 8: Faq
Diagram of Series Products 9.FAQ Result Reason or solution Check whether the cable ends are connected well Different testing results for one same cable Keeps the ports clean Connects to wrong port, “Length/Flash” is the correct one. Length measured 0.0m NF-198 NF-8601S NF-309...
