MVM
WAN
wM-Bus 169 MHz radio module
LoRaWAN 868 MHz radio module
Code
INSTRUCTIONS FOR INSTALLATION, USE
AND MAINTENANCE
Translation of the original instructions.
Before installing and using the device, carefully read this manual and store
it together with the product.
EN
Code EN_5000060C - 02/2020 - R1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for MADDALENA ArrowWAN MVM wM-Bus 169
- Page 1 Arrow wM-Bus 169 MHz radio module LoRaWAN 868 MHz radio module Code INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE Translation of the original instructions. Before installing and using the device, carefully read this manual and store it together with the product. Code EN_5000060C - 02/2020 - R1...
-
Page 2: Table Of Contents
Symbols used in this manual Warranty and relative meaning Conditions of sale and warranty The conditions of sale and warranty are avail- able on the website www.maddalena.it. WARNING! Indicates particularly important infor- Warranty limitations mation. Maddalena S.p.A. declines all responsibili-... -
Page 3: General Information
– The device must be used as defined electronic devices. by Maddalena S.p.A., that holds no – This device is not for use by persons responsibility for damage to per- with reduced physical or mental ca-... -
Page 4: Restrictions

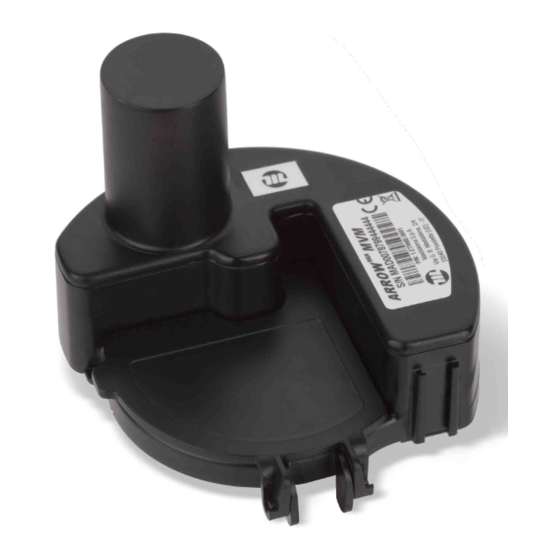

1.2 Restrictions 1.3 Device description Arrow MVM is a compact radio module for Maddalena series MVM and MVM Plus PROHIBITED C water meters that enables measurement, – Do not modify and/or attempt to transmission and remote reading of the repair the product. All repairs must... -
Page 5: Usage Limits
1.4 Usage limits The following alarms are managed: exces- sive consumption (configurable parame- The product may be used exclusively with ters), backflow (limit set and configurable), compatible meters and in line with the cor- leak (configurable parameters), device ge- responding usage limits (see paragraph “ neric alarm, battery almost flat (below 10%), Technical specifications”). -
Page 6: Structure
MVM169 1 Antenna S/N MAD0078799444444 2 NFC 3 Meter interface (two-way inductive sen- P/N: 1.ETRMD.0601 Maddalena S.p.A. Via G.B. Maddalena, 2/4 sor) 33040 Povoletto (UD) - IT 4 Battery 5 Protective cover 1 Serial number of the meter 2 Model... -
Page 7: Technical Specifications
1.7 Technical specifications Features Description Sensor Inductive dual coil (two-way) Compatible meters Series MVM and MVM Plus C volumetric meters Sensor resolution 1L (DN<40); 10L (DN40) Excessive consumption, backflow, leak, generic device Alarms alarm, battery almost flat, electronic fraud, mechanical fraud Configuration Through the Android via NFC port (ISO 15693) and OTA... -
Page 8: Installation
Installation PROHIBITED Packaging material must be prop- 2.1 Receipt of the product erly disposed of and kept out of children’s reach as it may repre- Arrow MVM modules are supplied in sent a hazard. Disposal must be two different formats: performed in line with applicable Package containing 10 pieces, al- laws. - Page 9 – Attach the Arrow MVM module (2) to – Attach the eyelet (3) to the catch (4) and the relevant housing. realign the module – Lower the module and offset it WARNING! Do not apply pressure to force the eyelet in. –...
-
Page 10: Use
Maddalena. To receive the signal of the radio module, go near the meter with an appropriate receiver, or if a fixed (AMR) reading system is present, the data is col- lected automatically. - Page 11 Once these preliminary operations have been completed, proceed as follows: WARNING! – Enable the smartphone’s audio function; To activate the Arrow MVM 169 – Open the “Wirgrid NFC” application; module, set the radio type in wM- – Enter the “Login” and “Password”; –...
- Page 12 – Enter the missing parameters (indicated with a red icon); - “Index” (reading of the mechanical me- ter) - “Pulse value” (pulse weight: 1 l for DN up to 32 mm and 10 l for DN 40 mm) - “Meter ID” (serial number of the me- chanical meter associated with the ra- dio) –...
-
Page 13: Verification Of The Entered Parameters
– Once completed, the “Installation suc- cessful” (7) message will appear. Clicking an item from the list of installed modules (2) allows for viewing the details (3) relative to the installation. WARNING! The radio module is pre-config- ured. To change the settings, refer to the manual of the activa- tion and programming app. -
Page 14: Troubleshooting
3.4 Troubleshooting FAULT CAUSE SOLUTION Move devices to a sufficient distance Electrical or electronic away devices interfere with The radio module is not the signal Move the receiver closer transmitting Battery empty Contact the manufacturer Place the smartphone so that its NFC port is above that of the radio module. -
Page 15: Deactivating The Radio Module
3.5 Deactivating the radio – Once completed, the “Uninstall success- ful” (5) message will appear; module To deactivate the Arrow MVM module, proceed as described below: – Open the “Wirgrid NFC” application; – Access the “Uninstall” menu (1); – Click on “UNINSTALL” (2); –... -
Page 16: Maintenance
Maintenance 4.2 Cleaning No particular cleaning procedures are required. However, the installation area 4.1 Battery should be kept clean and periodic checks The radio module is equipped with a 3.6 V should be performed to ensure the re- lithium-thionyl chloride (Li-SOCl2) battery quired environmental conditions are met. - Page 20 Tel. +39 0432 634811 www maddalena it Maddalena S.p.A. reserves the right to change its products at any time and without prior notice, with the aim of improving them and without compromising primary features. All the graphic illustrations and/or photographs appearing in this document can be represented with optional accessories that vary in relation to the country where the device is used.
