Summary of Contents for RGC C150

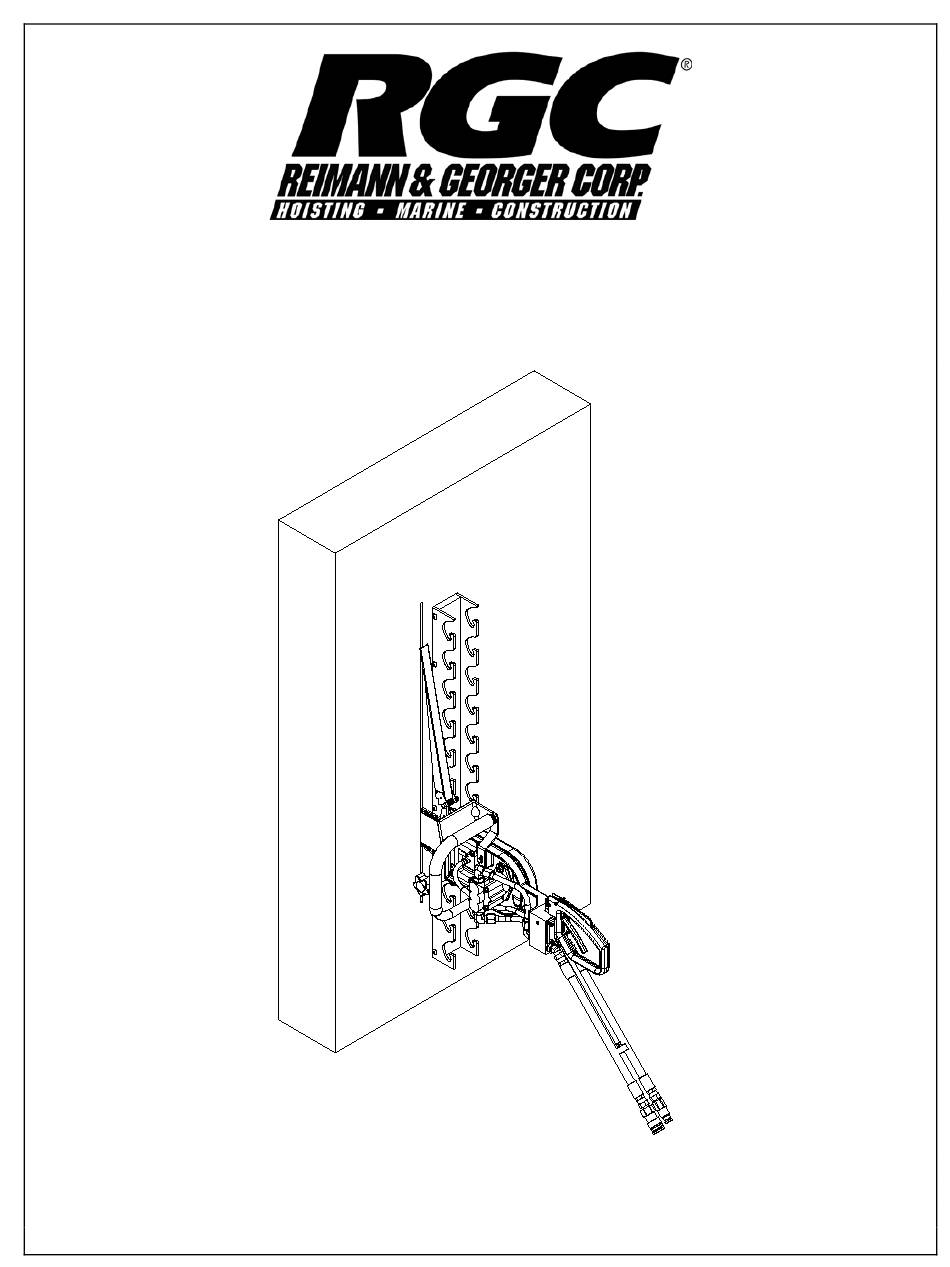

- Page 1 C150 CAST SPEEDHOOK INSTRUCTIONS REIMANN & GEORGER CORPORATION CONSTRUCTION PRODUCTS BUFFALO, NY P/N 6122058 3/25/15...
-
Page 2: Table Of Contents
LIST OF FIGURES FIGURE DESCRIPTION PAGE Speedhook Cutting Dimensions ...................... 3 C150 Cast frame drilling Layout ....................4 C150 Cast Speedhook Assembly ....................5 C150 Cast Speedhook Assembly ....................5 Cutting Procedure ........................... 7 C150 Speedhook Assembly Drawing .................... 10... -
Page 3: Safety

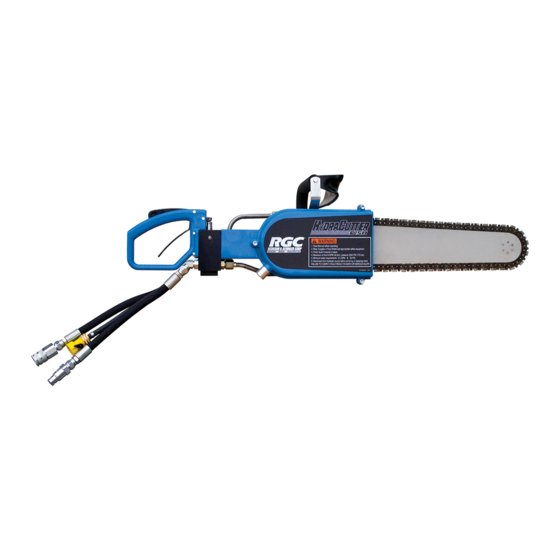

1 SAFETY 1.1 INTRODUCTION Your Reimann & Georger Corporation C150 Speedhook enables straight line cutting with reduced chain wear and operator fatigue. The C150 Hydracutter mounted on the Speedhook is a safe, well-designed and well-built system. However, the system can still malfunction or become hazardous in the hands of an inexperienced and/or untrained user. Therefore, read this manual and related equipment manuals thoroughly before using your Speedhook to provide maximum safety for all operating personnel, and to get the maximum benefit from your equipment. - Page 4 Never operate the saw on the Speedhook without the chain guard and Speedhook splashguard in place. 10. Keep the saw handles dry, clean, and free of oil or fuel. 11. Always hold the saw with both hands during operation. Use a firm grip on the handles. 12.
-
Page 5: Installation And Setup
2 INSTALLATION AND SETUP 2.1 PLANNING THE CUT Insure the available space in the cutting area is adequate for using the Speedhook. The length of the Speedhook is 42 inches (105 cm) and the width is 3.5 inches (89 mm). Outline the cut with a permanent marker. -
Page 6: Mounting The Speedhook To Wall
FROM THE HYDRAULIC POWER SOURCE TO PREVENT ACCIDENTAL STARTUP. Two 11/32 holes must be drilled in C150 cast frame of saw. Refer to figure 2-2 for hole location layout. Do NOT try to mount the bracket and the associated hardware to anything other than the C150 Hydracutter. -
Page 7: C150 Cast Speedhook Assembly
Figure 2-3 Speedhook Assembly Figure 2-4 Speedhook Assembly... -
Page 8: Operation
Stop the saw by releasing the trigger lever. Follow the shutdown procedure for the Hydracutter as described in the C150 manual. Allow the system and hydraulic fluid to cool before disconnecting hydraulic hoses. -
Page 9: Cutting Procedure
Spray entire Speedhook, saw, chain, bar, and drive sprocket with a light weight penetrating oil. This will minimize rust and reduce slurry buildup on saw assembly. Secure the hydraulic power source and Hydracutter to prevent unauthorized use. Figure 3-1. Cutting Procedure... -
Page 10: Troubleshooting
4 TROUBLESHOOTING The following chart is intended to assist with troubleshooting problems related to the C150 Speedhook. While not all inclusive, the chart outlines the most common causes of a problem and the recommended course of action. The troubleshooting guide for problems related directly to the C150 Hydracutter is in the instruction manual specifically for this unit. -
Page 11: Parts List
5 PARTS LIST Each item number on this parts list can be matched with the item number shown on the Figure 5-1 assembly drawing. Item Number Part Number Quantity Description 5806366 NUT HEX TOPLOCK 1/4-20 CZP 1970551 SPLASH GUARD 5806393 WASHER FLAT SAE 1/4 CZP 5806210 HHCS 1/4-20 X 1-3/4 CZP... -
Page 12: C150 Speedhook Assembly Drawing
Figure 5-1 C150 Speedhook Assembly Drawing... - Page 13 LIMITED PRODUCT WARRANTY Reimann & Georger Corporation Hoisting and Construction Products A. LIMITED WARRANTY Reimann & Georger Corporation (the “Manufacturer”) warrants to the original purchaser (the “Buyer”) that all Reimann & Georger Hoisting and Construction products shall be free of defects in material and workmanship for a period of one (1) year from date of original purchase.
- Page 14 ADDITIONAL EXCLUSIONS FROM THIS LIMITED WARRANTY. THIS LIMITED WARRANTY DOES NOT COVER ANY OF THE FOLLOWING: Equipment which has been abused, damaged, used beyond rated capacity, or repaired by persons other than authorized service personnel. Damage caused by acts of God which include, but are not limited to, hailstorms, windstorms, tornadoes, sandstorms, lightning, floods, and earthquakes.
