Summary of Contents for Anderson Guardian III

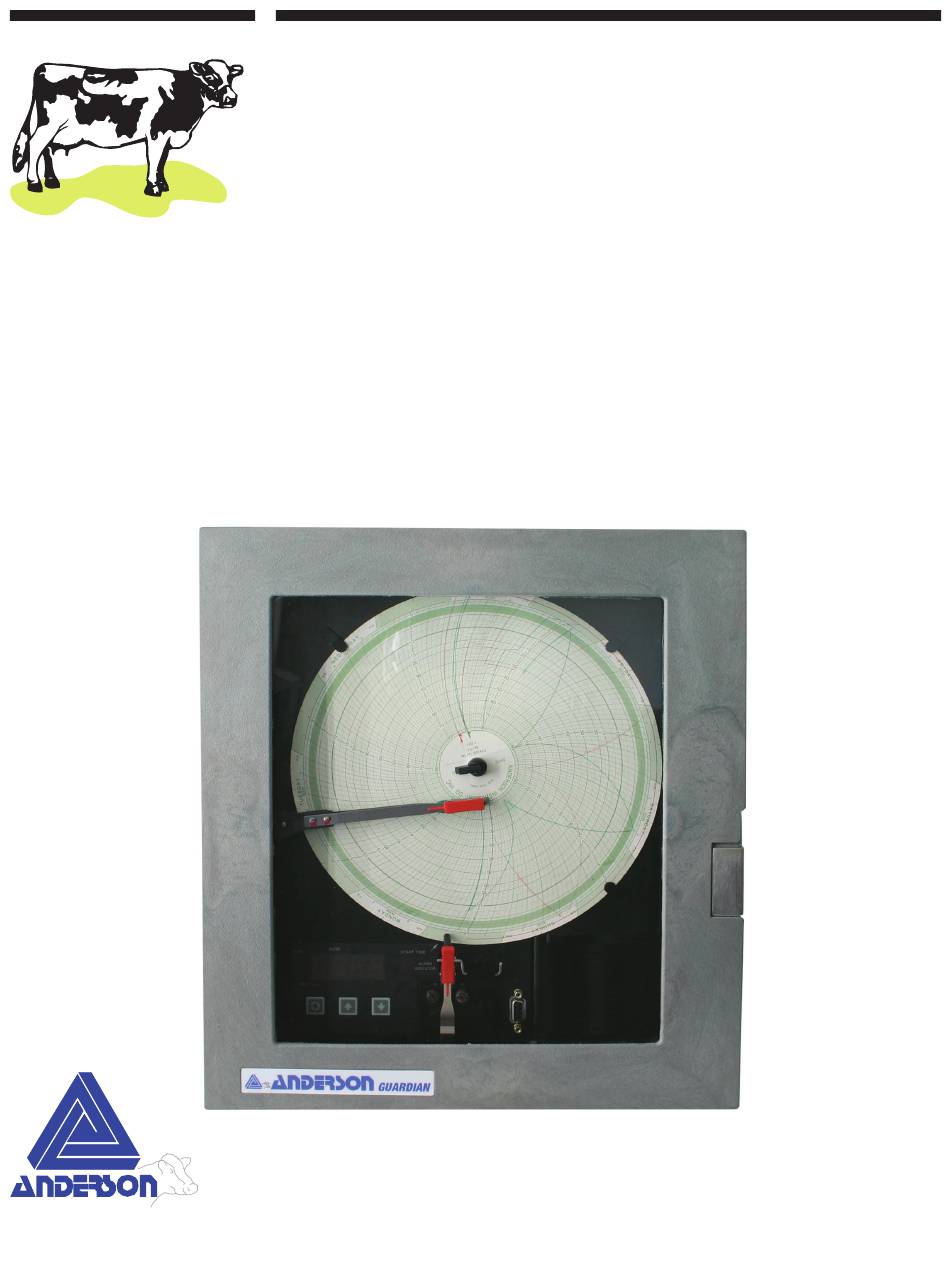

- Page 1 The Guardian III Farm Bulk Tank Recording Thermometer MODEL 5541 - Basic Installation & Operator’s Manual GUARDIAN Form AIC2057 © March 2007 Revised: 11/24/09...
- Page 2 Note to Dealers: Once you have installed the Guardian and initiated operation, please leave this manual with the dairy producer. Thank You, Anderson Instrument Anderson Guardian...
-
Page 3: Table Of Contents
• Power Requirements p. 19 • Construction p. 20 • Environmental and Operating Conditions p. 20 • General Information p. 20 • Warranty p. 20 • Agency Approvals p. 20 • Install p. 20 VIII Warranty p. 21 Anderson Guardian... -
Page 4: Field Wiring And Installation
Wash COMMON Line Beacon NOTE NORM OPEN FOR PROPER CONNECTION, IT IS TB-1 24 VDC +24 VDC RECOMMENDED ALL -24 VDC WIRE TERMINATIONS BE STRIPPED AND SOLDER TINNED Light beacon is provided with a wall mount bracket. Anderson Guardian... - Page 5 PROG/ removed Switch removed CAL/ CAL/ ALARM TEST ALARM TEST INDICATOR INDICATOR ALARM INDICATOR Cover plate Cover plate PEN 2 PEN 2 PEN 2 PEN 2 in place Access to in place Access to Anderson Guardian Run/Program Run/Program Switch Switch...
-
Page 6: I Overview
An event pen located on the outer perimeter of the chart will record the state of the high alarm for each pen. This function is useful when utilizing the high alarm to confirm proper wash temperatures. Anderson Guardian... -
Page 7: Getting To Know Your Guardian
Getting to Know Your Guardian NEMA 4X enclosure for washdown applications Chart hub clamp Platen Tabs to hold chart in place Pen arms and felt tip pens Sealed Latch calibration cover LED Display Keypad Scroll Sensor probe and wire Anderson Guardian... -
Page 8: Regular Maintenance
For example, if your milk is picked up every other day, you should order a Guardian recording thermometer with a 48-hour chart rotation time period. If you need assistance determining the correct chart rotation time, call Anderson Instrument at 1-800-833-0081. Changing Your Chart... -
Page 9: Chart Positioning
Replacement pens Installation are available from Slide pen into Anderson at 1-800- holder (1) and 833-0081. See the push down (2) as “Customer Support shown by arrows. -
Page 10: Changing The Rotation Time Of The Chart
11. Install the new replacement chart onto the instrument. Be sure to use the chart which corresponds to the new chart speed that was just programmed. For example, if chart speed is programmed for 7 days, choose a 7-day chart. Close the door of the Guardian. You are ready to go! Anderson Guardian... -
Page 11: Calibration Check
7. If the recorder temperature on the chart and the LED display are the same but are not within .75°F (1°C) of 32°F (0.0°C), an input calibration should be performed. Please consult Anderson at 1-800- 833-0081 or your Dealer for the calibration manual and for assistance with the calibration procedure. -
Page 12: Pen Alignment
14. Repeat steps 8 through 12 for pen 2 (green pen). 15. Move the MODE switch to the RIGHT position. Replace the small cover over the MODE switch and secure with the screw provided. If you have any additional questions concerning calibration, please consult Anderson at 1-800-833-0081. Anderson Guardian... -
Page 13: Troubleshooting
One of the pens has moved to the inner ring of the chart and the display for that pen reads HI. The RTD sensor for that channel has failed. Disconnect power from the unit, install a new sensor, and reconnect the power. Anderson Guardian... -
Page 14: Spare Parts
Spare Parts Call your local dealer or Anderson Instruments Inc. at 1-800-833-0081 for service or ordering spare parts. CONSUMABLES CHARTS 24 hour / °F 00215709 48 hour / °F 00215710 72 hour / °F 00215711 7 day / °F 00215712 24 hour / °C... -
Page 15: Appendix
Installer. Future changes on items such as recording time or real time clock are updated via menu items shown in this section. If you have a questions, feel free to call your Installer, or Anderson directly at 800-833-0081 before making program changes Changing Parameters in Program Mode •... -
Page 16: Program Menu Flowchart
Program Menu Flowchart • Anderson Guardian... -
Page 17: Program Menu Parameters
Value representing minutes • Fid1 First four digits of Farm Identification Number • Fid2 Second four digits of Farm Identification Number Boot • Caution - this menu option for Factory Setup only * See Alarm and Event Pen Guide Anderson Guardian... -
Page 18: Alarm And Event Pen Guide
This provides a visual indication that the proper temperature was met. To help differentiate these alarms, the alarm LED’s on the display are not lit at the high alarm setpoint. Anderson Guardian... -
Page 19: Specifications
Chart Rotation Accuracy: 0.5% of rotation time, assuming all backlash removed • OPERATOR INTERFACE Display: Four digits 0.56” high, red seven-segment LED Keypad: Three keys for programming and unit operation • POWER REQUIREMENTS Line Voltage: 90-264 VAC, 50/60 Hz Anderson Guardian... -
Page 20: Construction
Data Backup: EEPROM for configuration parameters and calibration data • WARRANTY Two Year Warranty • AGENCY APPROVALS UL Approved for USA and Canada - UL 61010-1, 2nd Edition, QUYX - File E155886 • INSTALL Recorder and Sensor Pre-calibrated Anderson Guardian... -
Page 21: Warranty
SPECIFICALLY AGREES OTHERWISE IN WRITING AFTER THE PROPOSED USAGE HAS BEEN MADE KNOWN TO IT. THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO ANY WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE. Anderson Guardian... - Page 22 GUARDIAN Anderson Instrument Company, Inc. 156 Auriesville Rd. Fultonville, NY 12072 800-833-0081...
