Summary of Contents for Prolux CA2000

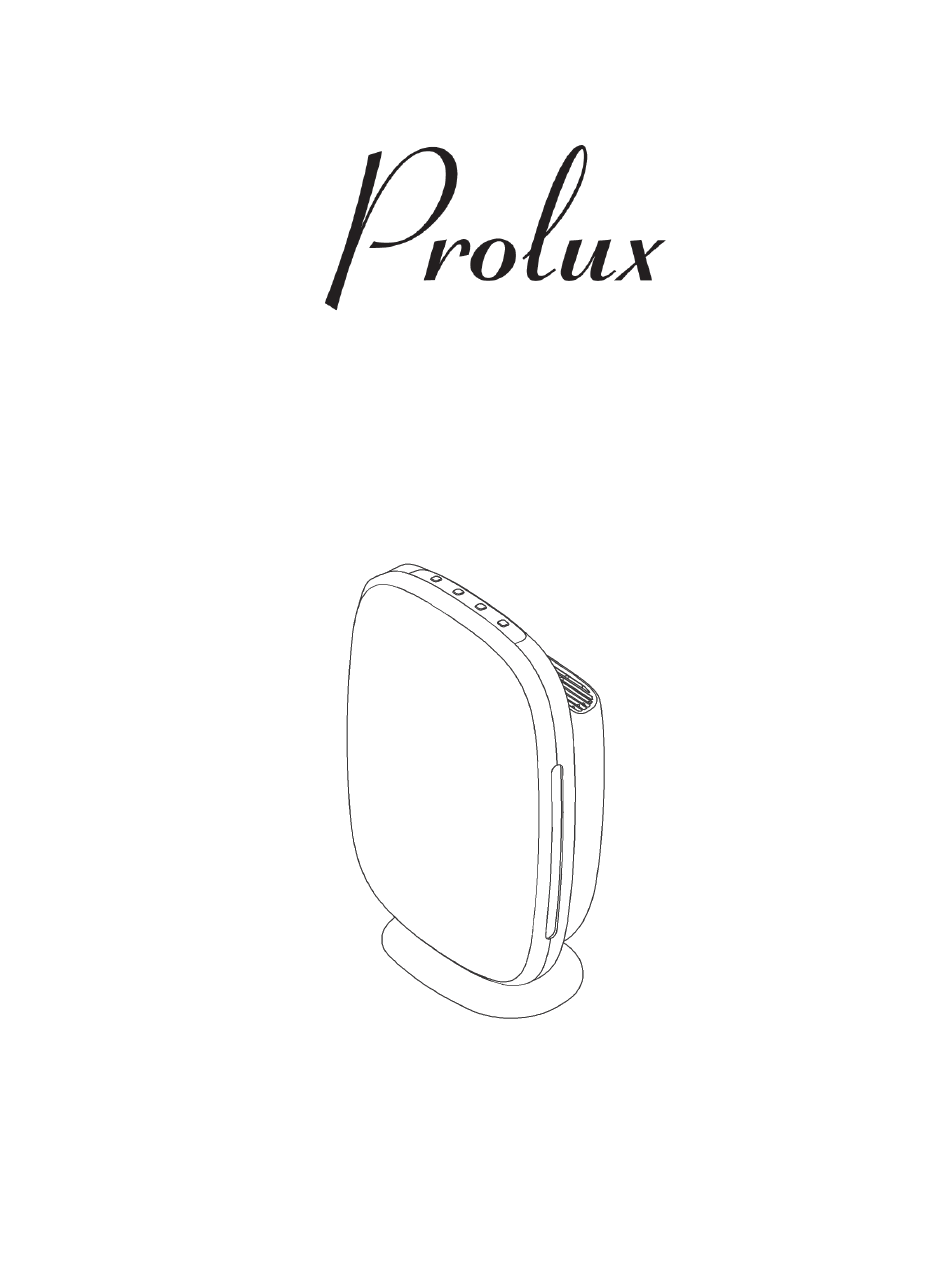

- Page 1 CA2000 AIR PURIFIER Please read in the User Manual carefully before using the product. Please keep the User Manual in good custody for reference.
-
Page 2: Table Of Contents
Speaking of dirty air, how would you like to save money and have cleaner air? The CA2000 is equipped with an auto dirt sensor that turns on the air purifier automatically when the air is dirty. This saves you money and leaves your air... -
Page 3: Features
We hope you and your family can enjoy cleaner healthier air through the use of Prolux’s latest Air Purifier. Welcome to the CA2000. -
Page 4: Safety Notices
Safety Notices • Please do not disassemble, repair or modify the machine by yourself. Unauthorized servicing may cause fire or malfunction. • Only use appliance on 120 volt-rated outlets. • Do not use air purifier around water, pesticides, cleaning chemicals, grease, oil, water vapor, moisture or with wet hands as electric shock of fire may occur. -
Page 5: Components
Air Purifier Components 1. Front Cover 2. Pre-filter 3. HEPA Filter 4. Charcoal Filter 5. Control Buttons 6. Induction Cover (Sensor Inside) 7. Air Flow Outlet 8. Power Cord... -
Page 6: Control Switches
Function switch introduction 1. Air Quality Sensor: Blue = Good, Red = Bad 2. On/Off Switch 3. Anion Switch 4. Fan Speed 5. Timer 1. Air quality- particulate sensor device is installed in the Air Purifier. During the first 3 minutes of starting up the unit, the air quality indicator light flashes red and blue alternately. -
Page 7: How To Use
3. Anion switch - Anion Air Purifier device is installed in the machine and it can release millions of anions to the air which helps clean the air and reduce allergens. Press ANION button and anion indicator light is on, displaying in blue. Anion function is in ON state at this time. -
Page 8: Maintenance
1. Unplug the unit, then pull the front cover off and lift upwards so the front cover will come off. 2. Remove the pre-filter by pressing down on the two fasteners at the top of the filter. The filter is then removed. 3. -
Page 9: Technical Data
4. Carbon Filter: The purpose of the carbon filter is to remove particles and absorb odors for clean smelling air. The Carbon filter cannot be washed and when no longer effective, it needs to be replaced. Technical Data Model CA2000 120V～60HZ Power supply Rated power Contour dimension... -
Page 10: Circuit Diagram
Circuit Diagram 1. Air Quality Sensor 2. Motor 3. Anion Generator... -
Page 11: Troubleshooting
Troubleshooting Malfunction Possible Reasons Solutions If the unit is not getting power from the Check to make sure cord is firmly cord. plugged into wall outlet. Check to Unit unable to start make sure wall outlet is live and has If the unit is not turned on. -
Page 12: Service
3 Year Warranty Terms: 1. This Prolux CA2000 unit is covered by parts and labor for the length of 3 years from purchase date. 2. The warranty covers all parts of the unit except for filters.
