Model：R312A

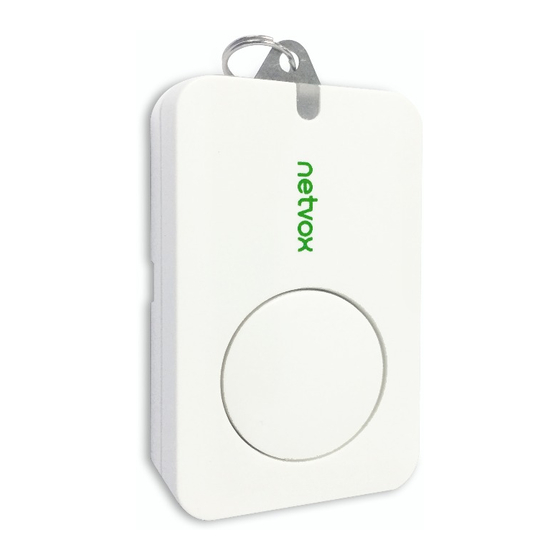

Wireless Emergency Button
Wireless Emergency Button
R312A
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice

Advertisement

loading
Need help?

Need help?

Do you have a question about the R312A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for netvox R312A

Summary of Contents for netvox R312A

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice...

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ................................2 2. Appearance ................................3 3. Main Features ................................3 4. Set up Instruction ..............................4 5. Data Report ................................5 6. Installation ................................10 7. Important Maintenance Instruction ........................11...

  • Page 3: Introduction

    1. Introduction The R312A is a long-range emergency button device for Netvox ClassA type devices based on the LoRaWAN open protocol and is compatible with the LoRaWAN protocol. LoRa Wireless Technology: LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other communication methods, LoRa spread spectrum modulation method greatly increases to expand the communication distance.

  • Page 4: Appearance

     Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne  Low power consumption and long battery life Battery Life: ⁻ Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html ⁻ At this website, users can find battery life time for varier models at different configurations.

  • Page 5: Set Up Instruction

    4. Set up Instruction On/Off Insert batteries. (users may need a flat blade screwdriver to open); Power on Insert two sections of 3V CR2450 button batteries and close the battery cover.) Turn on Press any function key till green and red indicator flashes once. Turn off Press and hold both function keys for 5 seconds till green indicator flashes for 20 times.

  • Page 6: Data Report

    (1) The actual data sending cycle of the device is subject to the programming configuration before shipment. (2) The interval between two reports must be the minimum time The data report can be decoded by the Netvox LoraWAN Application Command document and http://loraresolver.netvoxcloud.com:8888/page/index Report configuration and sending cycle are as follows: Current Change＜...
  • Page 7 MaxTime BatteryChange Reserved 0x01 ReportReq (2bytes Unit:s) (2bytes Unit:s) (1byte Unit:0.1v) (4Bytes,Fixed 0x00) Config Status Reserved 0x81 ReportRsp (0x00_success) (8Bytes,Fixed 0x00) R312A 0x4D ReadConfig Reserved 0x02 ReportReq (9Bytes,Fixed 0x00) ReadConfigR MinTime MaxTime BatteryChange Reserved 0x82 eportRsp (2bytes Unit:s) (2bytes Unit:s) (1byte Unit:0.1v)
  • Page 8 Example of Config Button Press Time FPort：0x0D Default Press Time ： 0x03 Description CmdID PayLoad (Fix byte,1byte) PressTime (1byte, 0x00_QuickPush_Less then 1 Second, 0x01_1 Second push, SetButtonPressTimeReq 0x01 0x02_2 Seconds push, 0x03_3 Seconds push, 0x04_4 Seconds push, 0x05_5 Seconds push, Other value is reserved) Status SetButtonPressTimeRsp...
  • Page 9 Example for MinTime/MaxTime logic Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V Max Time Max Time leeping (Min Time) leeping (Min Time) Wakes up and Wakes up and Wake up and collects data collects data collects data REPORTS 2.8V REPORTS 2.8V...
  • Page 10 Note: 1) The device only wakes up and performs data sampling according to MinTime Interval. When it is sleeping, it does not collect data. 2) The data collected is compared with the last data reported. If the data change value is greater than the ReportableChange value, the device reports according to MinTime interval.

  • Page 11: Installation

    1. The key ring of the portable wireless emergency Button 2. Press and hole the emergency button for 3 seconds, the (R312A) can be snapped onto the backpack, the keychain "alarm" message is generated. around the waist, or hangs around the neck with a lanyard.

  • Page 12: Important Maintenance Instruction

    7. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the device dry. Rain, moisture, or any liquid, might contain minerals and thus corrode electronic circuits. If the device gets wet, please dry it completely.
