Summary of Contents for Mobatime NPR

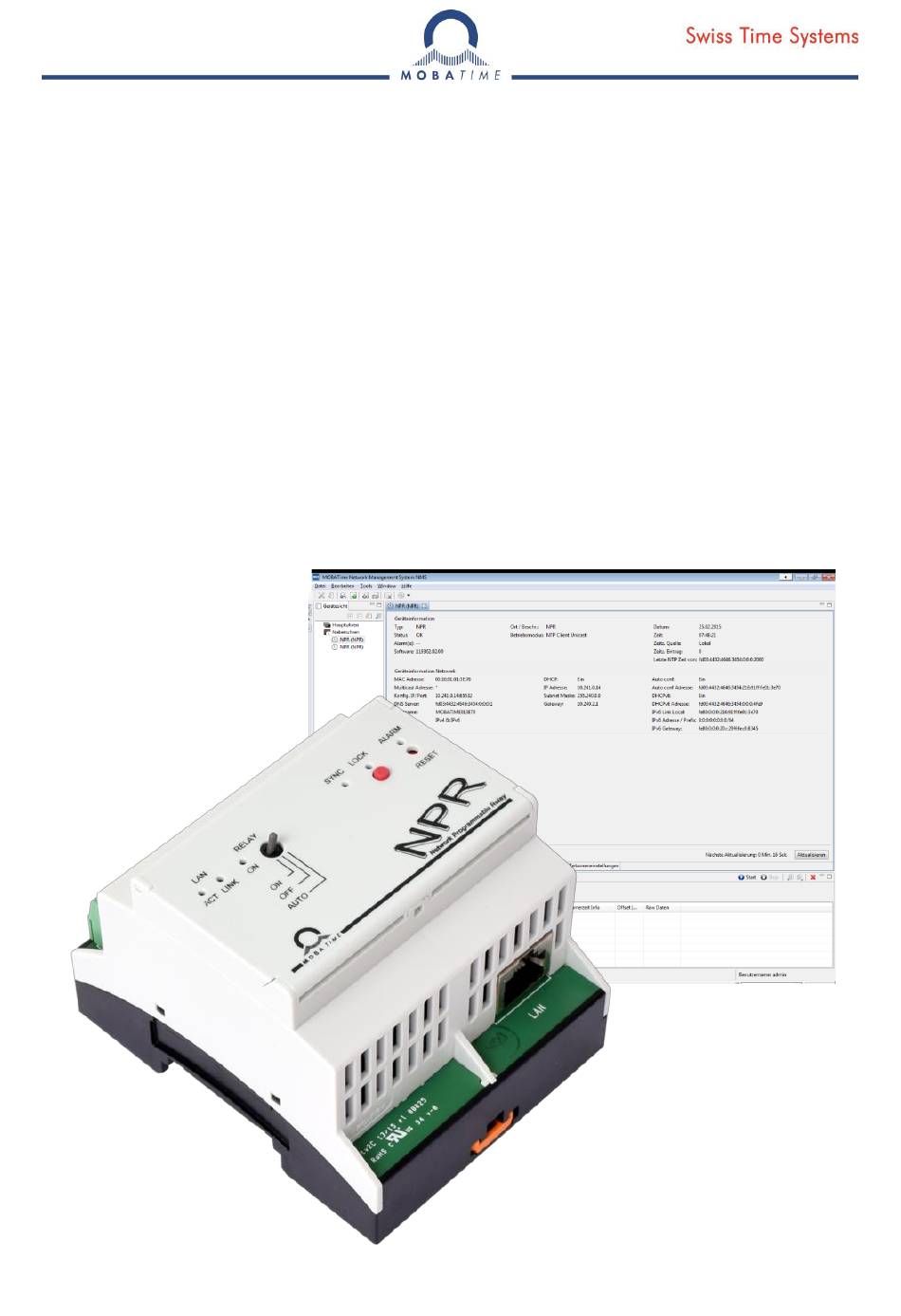

- Page 1 MOUNTING AND INSTRUC- TION MANUAL NPR – Network Programmable Relay Please study these instructions carefully before installing the device. © MOBATIME BE-801105.02...
- Page 2 Certification of the Producer STANDARDS The Network Programmable Relay (NPR) was developed and produced in accordance with the EU Guidelines: 2004 / 108 / EG 96 / 48 / EG References to the Instruction Manual The information in this Instruction Manual can be changed at any time without notice.
-
Page 3: Table Of Contents
5.6.1 Description............................ 10 5.6.2 Structure ............................10 5.6.3 Switch Editor Basic ........................12 5.6.4 Data transfer from/to NPR ......................13 Operating mode / Synchronization ......................14 5.7.1 Unicast ............................14 5.7.2 Multicast ............................14 Operating behavior ............................15 Power supply ............................15 DHCP .............................. -
Page 4: Safety
The Network Programmable Relay is a relay that can be switched via network or con- trolled by a week program. For a detailed function description, see chapter 3.3 Function description. The technical data can be found in chapter 10 Technical data. © MOBATIME 4 / 24 801105.02... -
Page 5: Observe Operating Safety
Do not use the device outdoors. The NPR is designed for mounting in a switchboard. When using it outside of a switchboard, measures must be taken to ensure that no unqualified persons can ac- cess it. -
Page 6: Maintenance
Return your device to your supplier who will dispose of it correctly. Packaging Your device is packaged to protect it from damages during transport. Packaging is made of materials that can be disposed of in an environmentally friendly manner and properly recycled. © MOBATIME 6 / 24 801105.02... -
Page 7: General Information: Introduction
NPR is used for improved readability. Function description The NPR is a network relay with one relay (channel) synchronized via NTP. It can be configured over the network using the software MOBA-NMS. With this program, the NPR can also be switched over the network. Furthermore, a week program file can be loaded onto the NPR. -
Page 8: Configuration, Displays And Connections
A temporary command (not locked) is only valid until the end of the current minute. Af- terwards, the week program regains control. However, direct commands are only car- ried out if the relay switch is set to AUTO and the NPR is not in the LOCK mode. © MOBATIME 8 / 24 801105.02... -

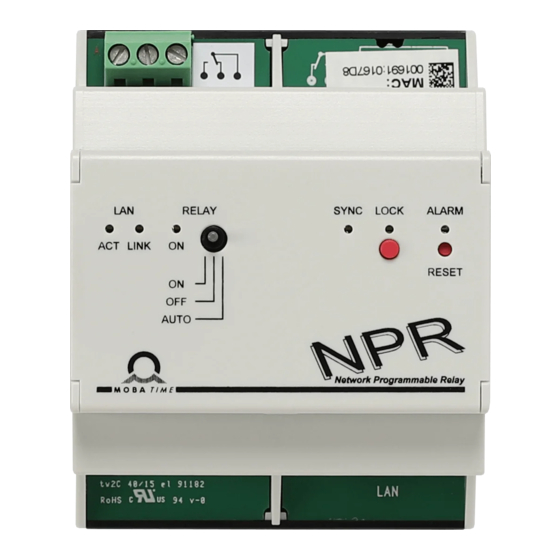

Page 9: Connections And Displays
C = Common: common connection LAN connector (RJ45) Connection Ethernet with PoE With the relay switch, the NPR switch mode can be set. See Relay switch chapter 5.1 Relay switch Using the LOCK push-button, the NPR can be locked. For more LOCK push-button information, see chapter 5.2 Lock push-button –... -
Page 10: Week Program
5.6.1 Description The main function of the NPR is the autonomous execution of switch commands as de- fined in a week program. This week program can be created/edited using a text editor or the software Switch Editor Basic. The week program can then be loaded onto the NPR using the software MOBA-NMS. - Page 11 <w>0111110073010</w> Mo-Fr at 07:30, switch on for 10 sec. <w>0111110170010</w> Mo-Fr at 17:00, switch on for 10 sec. </WP1> <EX1> <e>22122015-02012015</e> Exception from 22.12.2015 - 02.01.2015 </EX1> </ST> This example corresponds to week program example 1. © MOBATIME 11 / 24 801105.02...
-
Page 12: Switch Editor Basic
(e.g. illumination, electronic locks). Caution: The NPR allows for up to 50 week program entries and 50 exceptions. Bigger programs can be created with the Switch Editor, but not saved on the NPR... -
Page 13: Data Transfer From/To Npr
Right click on NPR entry in device list Commands Weekprogram transfer Manually via IPv4 The week program data can be transferred via command line. To transfer the week program from the NPR to the PC, use a "get" command: tftp <IP address> get <file name> Example: tftp 10.241.0.90 get Week_program.txt... -
Page 14: Operating Mode / Synchronization
The NTP server addresses must be configured as DHCP option on the server by the network administrator. If an address is sent to the NPR, it will request NTP and time zone packets from that address. The request interval can be configured using the soft- ware MOBA-NMS (default value is 10s). -
Page 15: Operating Behavior
Operating behavior Power supply The NPR can be powered via PoE class 1 (Power over Ethernet) from a switch. As an alternative to a PoE switch, a PoE injector or midspan can be used. Both PoE power supply variants, phantom power and spare-pair power, are supported. -
Page 16: Snmp
The NPR is synchronized to UTC. To calculate local time, the NPR needs additional in- formation by way of a time zone entry. The NPR can save one time zone entry that can be edited over the network via MOBA-NMS. -
Page 17: 6.10 Firmware Update
Thus, if the primary server fail, the secondary server dominates. 6.10 Firmware update The firmware of the NPR can be updated using MOBA-NMS thanks to an implemented ethernet bootloader. A working network connection is required for this. -
Page 18: Moba-Nms (Mobatime Network Management System)
Further information, manuals and the software itself can be found at our website http://www.mobatime.com. It is also available on a USB stick (must be ordered separately). The various NPR parameters can be edited in the tab „NPR setting“. © MOBATIME 18 / 24... -
Page 19: Factory Settings
Factory settings The NPR is delivered with the following pre-defined standard settings. These can be restored on the device (see chapter 5.3). Factory settings: Name (20 characters) IP mode IPv4 and IPv6 on DHCP on/off IPv4 address 1.255.255.253 IPv4 subnet mask 255.255.255.0... -
Page 20: Time Zone Table
Sydney, Canberra, Mel- Sun. Oct. (02.00) Sun. Apr. (03:00) bourne, Tasmania: Hobart UTC (GMT) UTC (GMT) Honiara (Solomon Is.), Noumea (New Caledonia), Auckland, Wellington Last Sun. Sep. (02:00) Sun. Apr. (03:00) Majuro (Marshall Is.), , Anadyr © MOBATIME 20 / 24 801105.02... - Page 21 As usual, the time table is adapted each year. You can download the newest time table from our homepage: www.mobatime.com Downloads Moba-Software Time Zone Table. If the delivered device contains a newer version as showed in this manual, it’s recommended to check the time zone entries.
-
Page 22: Dimensions
Dimensions All measurements in mm © MOBATIME 22 / 24 801105.02... -
Page 23: Technical Data
Termination of wek program after 24 h Deviation typically <+/- 2 s after 24 h Operation MOBA-NMS Supervision Status request of NPR via PC software MOBA-NMS. SNMPv2 alarm and alive traps for integration into a network management system. Week Programm Creation: Text editor / Switch-Editor-Basic (plugin) - Page 24 19 ch. du Champ-des-Filles, CH-1228 Plan-les-Ouates Tel. +41 34 432 46 46 / Fax +41 34 432 46 99 Tel. +41 22 884 96 11 / Fax + 41 22 884 96 90 moserbaer@mobatime.com / www.mobatime.com export@mobatime.com / www.mobatime.com SALES SWITZERLAND...
