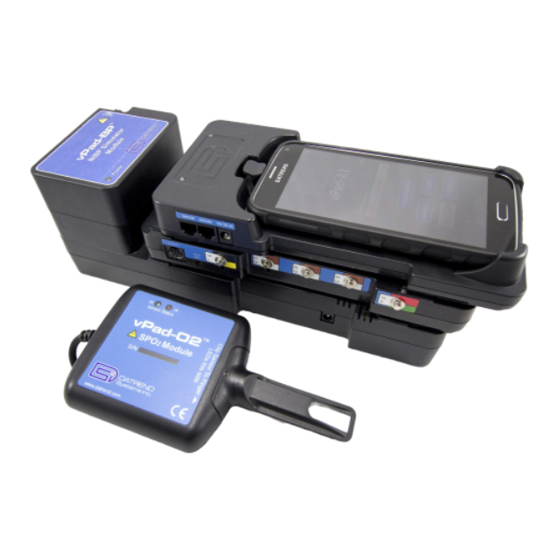

DATREND Systems vPad-A1 Operating Manual

All-in-one patient simulator and performance tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

™
vPad-A1
All-in-One Patient Simulator
and Performance Tester
Operating Manual
MN-103c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the vPad-A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DATREND Systems vPad-A1

  • Page 1 ™ vPad-A1 All-in-One Patient Simulator and Performance Tester Operating Manual MN-103c...
  • Page 3 ™ vPad-A1 All-in-One Patient Simulator and Performance Tester Operating Manual © 2016 - 2019 Datrend Systems Inc. Unit 130 - 4020 Viking Way Richmond, BC • CANADA • V6V 2L4 Tel: 800.667.6557 (North America Only) or 604.291.7747 • Fax 604.294.2355 e-mail: customerservice@datrend.com...
  • Page 5 Copyright Datrend Systems Inc. (“DSI”) agrees to a limited copyright release that allows you to reproduce manuals and other printed materials for use in service training programs and other technical publications. If you would like other reproductions or distributions, submit a written request to Datrend Systems Inc.
  • Page 6 Warranty and Product Support Datrend Systems Inc. ("DSI") warrants the Base and Simulation Modules of vPad-A1 (the "Datrend product") to be free from defects in materials and workmanship under normal use and service for one (1) year from the date of original purchase.
  • Page 7 Warranty Disclaimer Should you elect to have your instrument serviced and/or calibrated by someone other than Datrend Systems or an Authorized Service Centre, please be advised that the original warranty covering your product becomes void when the tamper-resistant Quality Seal is removed or broken without proper factory authorization. We strongly recommend, therefore, that you send your instrument to Datrend Systems or an Authorized Service Centre for service and calibration, especially during the original warranty period.
  • Page 8 Page iv...

  • Page 9: Table Of Contents

    OPERATORS MANUAL Table of Contents ........
  • Page 10 OPERATORS MANUAL 4.3.1 General ............41 4.3.2 Parameters .
  • Page 11 OPERATORS MANUAL 4.7.3.3 Delay Time ..........58 4.7.3.4 Pressure Step .

  • Page 12: Abbreviations And Definitions

    OPERATORS MANUAL Abbreviations and Definitions The following abbreviations, terms and acronyms may be used throughout this manual: μA Micro-ampere Ampere AAMI American Association of Medical Instrumentation Software application for a mobile device Equipment Under Test. The electrical device being tested.

  • Page 13: Symbol Definitions

    The following symbols may be found on vPad-A1: CONSULT MANUAL FOR PROPER OPERATION The operating manual provides valuable information on the proper use of vPad-A1. It is highly recommended the operator read the instructions thoroughly before operating the device. It may be possible to damage the Equipment Under Test (EUT) and/or cause harm to the operator if vPad-A1 is used incorrectly.
  • Page 14 OPERATORS MANUAL Definitions # Page x...

  • Page 15: Specifications

    The base module includes hardware for charging an internal battery which provides power to the base, the pulse oximeter tester, and the ECG/IBP simulation module. The vPad-A1 software or "app" runs on the tablet computer and is used to operate the simulation/test modules.
  • Page 16 OPERATORS MANUAL Wired Connectivity........Micro USB 2.0 Type B XBUS Interface (RJ12-6) Wireless Connectivity........802.11 b/g/n Bluetooth 2.1+ EDR Memory, Internal..........8GB Storage (~6GB available) Modes of Operation........USB wired connection Bluetooth wireless Environment: • 15°C to 40°C (59°F to 104°F) •...

  • Page 17: Multi-Parameter Patient Simulation

    OPERATORS MANUAL 1.2 Multi-Parameter Patient Simulation Multi-parameter patient simulation is provided by the vPad-PS module of vPad-A1. ECG General: • Simulation Type: Full 12-Lead ECG with independent outputs for each signal lead, referenced to RL • Output Impedance: 500, 1000, 1500, and 2000 ohms to RL •...
  • Page 18 OPERATORS MANUAL Arrhythmia: GENERAL 1 • Asystole 1 • PAC Premature Atrial Contraction • Asystole 2 • PNC Premature Nodal Contraction • Asystole 3 • Multifocal PVCs (once) • PVC1 Bigeminy • Frequent Multifocal PVCs • PVC1 Trigeminy • PVC2 Bigeminy •...
  • Page 19 OPERATORS MANUAL TACHYCARDIA • Atrial Tachycardia • Paroxysmal Atrial Tachycardia • 90 BPM Supraventricular Rhythm • 120 BPM Supraventricular Rhythm • 140 BPM Supraventricular Tachycardia • 150 BPM Supraventricular Tachycardia • 160 BPM Supraventricular Tachycardia • 170 BPM Supraventricular Tachycardia •...
  • Page 20 OPERATORS MANUAL • Tall T-Wave Test 0 to ± 150% in steps of 10% of Amplitude Setting (0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.1, 1.2, 1.3, 1.4 and 1.5 mV at 1 mV) • ST Segments: ± 0, 5, 10, 20, 30, 40, 50, 60, 70, 80 % of Amplitude Setting (0, -0.05, -0.1, -0.2, -0.3, -0.4, -0.5, -0.6, -0.7, -0.8,...
  • Page 21 OPERATORS MANUAL • Simulated Rhythms: - Asynchronous @ 75 BPM - Demand with frequent sinus beat - Demand with occasional sinus beat - A-V sequential - Non-capture - Non-function • Pacer Pulse Amplitude: 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 50, 100, 200, 500 and 700 mV •...
  • Page 22 • Pressure Waveform: Bell shaped, 0-50 or 0-90 mmHg • Contraction Frequency: Every 2, 3, 5 minutes, or manually triggered • Transducer Sensitivity: 5 µV/V/mmHg or 40 µV/V/mmHg Auto Presets: Unlimited number of user-defined simulation setups can be programmed into the vPad-A1. Specifications/Chapter 1 # Page 8...

  • Page 23: Pulse Oximetry (Spo2) Testing

    OPERATORS MANUAL 1.3 Pulse Oximetry (SpO2) Testing Pulse oximetry or SpO2 testing is provided by the vPad-O2 module of vPad-A1. Saturation (SpO2): • Range: 30 to 100% SpO2* • Increments: 1% • Accuracy: ±1 count + specified accuracy of the DUT when within DUT specified range •...
  • Page 24 OPERATORS MANUAL Signal Artifact: • Simulations: Movement Tapping (Spike Artifact) Shivering (Tremor artifact) Shake Table (2.5Hz Sinewave) AutoSettings: • Defaults: Normal Adult Hypoxia Tachycardia Bradycardia Low Perfusion No Perfusion Movement Artifact Neonate Tremor (Shivering Artifact) • User-defined Presets: Unlimited Alarm Tests: •...

  • Page 25: Non-Invasive Blood Pressure (Nibp) Simulation

    OPERATORS MANUAL 1.4 Non-Invasive Blood Pressure (NIBP) Simulation Non-invasive blood pressure or NIBP simulation is provided by the vPad-BP module of vPad-A1. Power Supply: • Three (3) Lithium Ion batteries, rechargeable, 3.8V 2600 mAh each Simulation Specifications NIBP General: •...
  • Page 26 OPERATORS MANUAL Pressure Source: • Range: 10.0 to 400.0 mmHg • Accuracy: ± 0.5 mmHg • Resolution : 0.1 mmHg • Units: mmHg • Test Modes: Automatic Manual Step (definable) • User-defined Settings: Unlimited Leak Test: • Range: 0 to 200mmHg/min •...
  • Page 27 OPERATORS MANUAL Standard Accessories: •Adapter/Hoses: Male/Female Luer Male/Female Clippard (GE Medical, Draeger/Siemens) Colder/CPC (GE Medical,Protocol Systems) Self Test Accessories : Pressure Bulb Assembly (tees into any Cuff Adapter) Self system leak test hose (plugged at distal end) OBAC Quick Release (Philips Medical) Universal 5/32"...
  • Page 28 OPERATORS MANUAL Specifications/Chapter 1 # Page 14...

  • Page 29: Overview

    OPERATORS MANUAL Overview vPad-A1™ is a test instrument intended to provide a means of functional testing for Pulse Oximeters, Multi-Parameter Monitors (including some Fetal Monitor parameters), and Non-Invasive Blood Pressure Monitors. When fully equipped with the available modules, the instrument is capable of simultaneously simulating all vital signs, including electrocardiogram, respiration, temperature, cardiac output, blood oxygen saturation, and blood pressure as measured invasively or non-invasively.

  • Page 30: Tablet User Interface

    OPERATORS MANUAL 2.2 Tablet User Interface The user interface of vPad-A1 is a tablet computer which runs the Google Android™ platform. The use of an Android-based tablet provides several notable benefits: • High resolution, full color display • WiFi / Internet communication •...

  • Page 31: Target Device Customization

    OPERATORS MANUAL 2.5 Target Device Customization vPad-A1 comes equipped with an extensive list of test definitions for devices, organized by SpO2 NIBP make and model, that generate precise signals which are matched to the chosen device. In the event that a...
  • Page 32 OPERATORS MANUAL Overview/Chapter 2 # Page 18...

  • Page 33: Setup

    OPERATORS MANUAL Setup vPad-A1 is a modular system having a and one, two or three additional modules which provide patient Base simulation or monitor testing. This chapter describes the modules and their connector interfaces, and provides instructions for assembly and setup of the system.
  • Page 34 OPERATORS MANUAL The vPad-O2 ( ) module is a pulse oximeter SpO2 tester which connects to the module via a Base minDIN8 connector. This module provides an artificial ‘finger’ containing light guides which convey light to or from pulse oximeter probes and sensors.
  • Page 35 OPERATORS MANUAL The vPad-PS (Patient Simulator) module snaps in below the module, Base connecting to power and data communication lines through contacts on the bottom of the Base Figure 3 Item Name Description IBP Connection 2 channel IBP connectors, USB Type A, proprietary wiring (right...
  • Page 36 OPERATORS MANUAL The vPad-BP ( ) module draws power NIBP from an internal set of three rechargeable batteries. The module’s operation can be controlled through a direct connection with , or by means of a pass-through Base connection in the vPad-PS module when used in the stacked configuration.

  • Page 37: Assembly And Setup

    OPERATORS MANUAL 3.2 Assembly and Setup To prepare vPad-A1 for use, first remove the from its cradle. Tablet Figure 5 Next, connect as many simulation modules to the as necessary. The modules Base vPad-PS vPad-BP slide and snap underneath the unit as shown in the figure below.
  • Page 38 Tablet should boot up and eventually show the Home screen within 20 seconds. Launch the Tablet vPad-A1 App to set up and operate vPad-A1; the patient simulator is controlled wirelessly, via Bluetooth. Figure 9 Figure 10 Note: Once the patient simulation has been set up with the...
  • Page 39 OPERATORS MANUAL Make connections between the patient monitor under test and the simulation/test modules of vPad-A1. module: vPad-PS • ECG – snap connectors/adapter • Respiration – same as above • Temperature – TEMP connector • Cardiac Output – AUX/CO connector •...
  • Page 40 Port on the the using the microUSB cable provided with vPad-A1. Base Figure 14 Figure 15 If the vPad-A1 will not be in use for an extended period of time, exit the and switch the unit A1 App Base and the OFF.

  • Page 41: Manual Operation

    OPERATORS MANUAL Manual Operation vPad-A1™ is a test instrument designed to provide a means of functional testing for Multi-Parameter Monitors, including ECG, Respiration, Temperature, Cardiac Output, and Invasive Blood Pressure (IBP), and some Fetal Monitor parameters; Pulse Oximeters (SpO2); and Non-Invasive Blood Pressure (NIBP) Monitors.

  • Page 42: Parameter Selection

    Home adopts typical Android conventions for receiving user input, as outlined in the following sections. 4.1.2 Parameter Selection vPad-A1 comprises three test modules: the Multi-Parameter Patient Simulator ( ), the pulse oximeter vPad-PS or SpO2 tester ( ), and the NIBP simulator ( ).

  • Page 43: Parameter Values And Options

    OPERATORS MANUAL 4.1.3 Parameter Values and Options Simulation settings may have anywhere from two choices (e.g. Adult vs. Neonatal ECG ) to hundreds Mode of possible values (e.g. ECG , adjustable from 20 to 360 BPM in 1 BPM steps). The manner of Heart Rate user input depends on the number of choices available.

  • Page 44: Pop-Up And Dropdown Lists

    OPERATORS MANUAL To set a parameter one time only, touch the “Enter Value” box on the menu to display the soft keyboard at the bottom of the screen. Type the number and press “Done” on the keyboard. Provided the entered value is valid for the given parameter, it will be set when the “Accept” button at the bottom of the menu is pressed.
  • Page 45 OPERATORS MANUAL Figure 25 Figure 26 A downward arrow within a grey box indicates that touching the box will display a list of options. Figure 26 shows the pop-up list that appears for choosing an waveform. Arrhythmia Figure 26...

  • Page 46: Ecg

    OPERATORS MANUAL 4.2 ECG 4.2.1 General The vPad-A1's menu provides a means to output , generally ECG Waveforms in the 0 - 5.5 mV range, that are representative of a physiological state or condition of the human heart. This menu also accesses...

  • Page 47: Normal Sinus Rhythm (Nsr)

    OPERATORS MANUAL Figure 27 Referring to , the middle of the screen provides a group of common parameters that can be modified. Some waveforms may not allow a certain parameter to be changed, in which case the parameter's button is shown in grey and is disabled.

  • Page 48: Arrhythmias

    OPERATORS MANUAL 4.2.4 Arrhythmias is a group of simulations that test a monitoring system's Arrhythmia ability to correctly display and/or classify signals which are the result of an abnormal cardiac condition. There are over 60 waveforms available in the section.
  • Page 49 OPERATORS MANUAL FIBRILLATIONS • Coarse Atrial Fibrillation • Coarse Ventricular Fibrillation • Fine Atrial Fibrillation • Fine Ventricular Fibrillation TACHYCARDIA • Atrial Tachycardia • Paroxysmal Atrial Tachycardia • 90 BPM Supraventricular Rhythm • 120 BPM Supraventricular Rhythm • 140 BPM Supraventricular Tachycardia •...

  • Page 50: Pacemaker Pulses

    OPERATORS MANUAL 4.2.5 Pacemaker Pulses simulation tests a patient monitor's ability to correctly display Pacemaker Pulse and/or classify rhythms which include cardiac beats accompanied by artificial pacing pulses having significantly greater amplitude than a normal QRS complex. simulations is fixed, as the frequency is an...
  • Page 51 OPERATORS MANUAL Pacemaker Waveform / Rhythm Description Atrio-Ventricular Sequential AV-sequential-pacemaker wave with continuous paced beats, each with an atrial pulse and a P wave followed by a ventricular-paced pulse and QRS response (75 BPM) Asynchronous 75 BPM Asynchronous pacemaker wave with continuous ventricular-paced beats (75 BPM)

  • Page 52: Fetal Ecg Signal

    OPERATORS MANUAL 4.2.6 Fetal ECG Signal function simulates heart beat signals obtained from the ECG leads on a direct fetal probe. Fetal ECG parameters are similar to simulations as described in section 4.2.3, except that the Fetal ECG Rate setting has a more limited range, and the setting is fixed.

  • Page 53: Qrs Detection

    OPERATORS MANUAL 4.2.8 QRS Detection feature generates standalone QRS complexes that act as triggers QRS Detection for pulse detection and rate measurement. settings are provided, similar to , though the Amplitude Rate Rate selections are more limited. settings are not available.

  • Page 54: St-Segment Elevation

    OPERATORS MANUAL 4.2.10 ST-Segment Elevation simulates regular NSR waves with ST-segments that are offset from the baseline. Of ST-Segment Elevation the common ECG parameters, only are available for this test. The is fixed at Amplitude Artifact Rate 60 BPM.

  • Page 55: Respiration

    RA lead to the LA lead, or alternatively from RA to the LL lead. The simulation imitates the expansion and collapse of a patient’s chest while breathing. To access the simulation, touch the Respiration Figure 17 tab on the left side of the vPad-A1 screen ( RESP Main 4.3.2 Parameters parameters can be accessed from a dropdown menu.

  • Page 56: Lead Selection

    OPERATORS MANUAL It can be set from 0.05 to 1.0 ohms in 0.05 ohm increments, and from 1.0 to 5.0 ohms in 0.25 ohm increments. 4.3.2.4 Lead Selection parameter selects the ECG leads across which the simulated Leads Impedance Variation applied.

  • Page 57: Temperature/Cardiac Output

    Figure 50 An optional box (#8000-454) is required to Cardiac Output Adapter interface vPad-A1 with the cardiac catheter and injectate temperature probe of the monitor under test. This is compatible with Baxter (Edwards) catheters and CO Adapter equivalent models from other manufacturers such as Abbott and Viggo-SpectraMed. These...

  • Page 58: Cardiac Output - Baseline Temperature

    OPERATORS MANUAL Also on the box is a larger, four-pin connector for the typical temperature CO Adapter Injectate probe. To determine if your device connection requires an additional adapter, contact your Datrend dealer for assistance. Note : Since it is not possible to display a selector or button for every...

  • Page 59: Cardiac Output - Simulation Curve

    OPERATORS MANUAL 4.4.2.5 Cardiac Output – Simulation Curve sets the shape of the temperature variation as blood Simulation Curve temperature downstream is cooled due to and then Injectate Temperature returned to . Users can choose from a set of regular...

  • Page 60: Invasive Blood Pressure

    Figure 17 To access the IBP simulation, touch the tab on the left side of the vPad-A1 screen ( Main On selection, the simulation setup menu will be displayed, activating the individual parameter values shown on the screen.

  • Page 61: Static Blood Pressure

    The second dropdown list allows selection of Channel 1 , and Channel 2 Simulation Artifacts Transducer Sensitivity controls the port of vPad-A1, and Channel 1 Simulation IBP1 Channel 2 controls the port. The channels are independent in this Simulation...
  • Page 62 OPERATORS MANUAL CHANNEL 1 ONLY • Swan-Ganz AUTO 15 sec (Manual Pause) • Swan-Ganz AUTO 25 sec (Manual Pause) • Swan-Ganz Cycle (Manual Advance) Swan-Ganz cycles are only available for . These options simulate the insertion Channel 1 Simulation and extraction of a Swan-Ganz catheter.

  • Page 63: Intra-Uterine Pressure

    ( ) is selected. Static Dynamic Pressure-ECG Timing selects a pre-defined synchronization pattern which is then used for the current simulation. When vPad-A1 generates an waveform, it also changes the pulse so that the fetal Rate Fetal ECG monitor can plot a “rate waveform/trend” that has the same period as the pressure wave.

  • Page 64: Pulse Oximetry (Spo2)

    ( SpO2 Main 4.6.2 Manufacturer and Model vPad-A1 incorporates targeted functional tests for a number of existing pulse Figure 64 oximetry systems, organized by the name of their . To Manufacturer...

  • Page 65: Parameters

    OPERATORS MANUAL Note To add a new , or not found in the Manufacturer Model Sensor Calibration: SpO2 R- existing options, refer to section 4.8.2.3 - Curves Contained within the menu is an item called , which is a...

  • Page 66: Artifact

    OPERATORS MANUAL 4.6.3.4 Artifact dropdown menu displays a selection of noise signals that can be Artifact superimposed over the normal signal. An can be used, for SpO2 Artifact instance, to test the ability of an oximeter to function correctly in a noisy environment.

  • Page 67: Alarm State

    OPERATORS MANUAL Figure 71 For example, in , only is enabled for the “Low Saturation” test type since it is the SpO2% critical parameter responsible for this . Users may adjust the parameter to a level Alarm Condition that will trigger an alarm from the pulse oximeter. All other parameters are fixed and must remain...

  • Page 68: Recovery

    OPERATORS MANUAL 4.6.4.4 Recovery The “Time to Recover” box will begin counting up in number of seconds. This keeps track of the amount of time required to recover from the Alarm Condition . Pressing the button in this state indicates that the pulse oximeter Normal Condition has ceased to alarm.

  • Page 69: Non-Invasive Blood Pressure (Nibp)

    To fully test a monitor that measures , the A1 provides multiple test features that can be accessed by NIBP Figure 17 touching the tab on the left side of the vPad-A1 screen ( NIBP Main 4.7.2 NIBP Simulation on the A1 injects small pulsatile pressure waves into a test...

  • Page 70: Heart Rate

    OPERATORS MANUAL 4.7.2.1 Heart Rate parameter sets the frequency of pulses during an . It can be set Heart Rate NIBP Simulation from 20 to 240 beats per minute (BPM), in increments of 1 BPM. 4.7.2.2 Pulse Volume refers to the parameter that sets the overall size of the simulated pulses. A simulation Pulse Volume with “High”...

  • Page 71: Running Nibp Simulations

    OPERATORS MANUAL Note : To add a new not found amongst existing options, refer Simulation Calibration: NIBP Envelopes to section 4.8.2.4 - 4.7.2.6 Running NIBP Simulations When setup is complete, the button prepares the NIBP Simulation simulator hardware for an impending test. Blood pressure cuff inflation and...

  • Page 72: Pressure Source And Manometer

    OPERATORS MANUAL 4.7.3 Pressure Source and Manometer ) feature can be used to verify the Pressure Source and Manometer Pressure pressure transducers in a monitor, or other pressure-measuring devices. NIBP parameters are not active during setup. Access the feature setup page by...

  • Page 73: Running Pressure Tests

    , the display unit can be changed to any of the Mode following: mmHg, inHg, kg/cm , cmH O, mBar, PSI, inH O, or kPa. vPad-A1 will hold the pneumatic system pressure until user assigns Figure 86 - Manual Mode Test Manual Operation/Chapter 4 # Page 59...
  • Page 74 Maximum . Result assignment (PASS/FAIL) buttons are Pressure subsequently enabled. , vPad-A1 will actively maintain the pressure Maximum Pressure level until user assigns a Figure 87 Note It is recommended that users exit the...

  • Page 75: Over Pressure And Pop-Off

    OPERATORS MANUAL 4.7.4 Over Pressure and Pop-Off feature is intended to test the pressure relief valve limits in an Over Pressure monitor. A typical test routine involves pumping air into the pneumatic NIBP system until the high pressure triggers the relief valve, which will then vent the system to a safe pressure level.
  • Page 76 OPERATORS MANUAL When an test is started, it attempts to pump air into the Over Pressure pneumatic system until the relief valves are triggered. If the A1 senses a valve trigger, it will immediately stop pumping and allow the...

  • Page 77: Leakage Rate

    OPERATORS MANUAL 4.7.5 Leakage Rate test assesses the rate at which air leaks from a pneumatic system, Leakage Rate typically by inflating up to and then holding a certain pressure for a predetermined amount of time. parameters are not active during setup. Access the feature setup page...
  • Page 78 OPERATORS MANUAL button can abort the test at any time. The test can then be restarted Leakage Rate with the button on the setup page. At the beginning of an test, the A1 will begin pumping air into the pneumatic system...

  • Page 79: Tools And Utilities

    Timer/Stopwatch AutoSequence AutoSetting Time Mode 4.8.2 App Settings menu includes features which enable users to optimize performance of vPad-A1. It is Settings Figure 17 accessible by touching the button on the A1 screen ( Main 4.8.2.1 Power Management...

  • Page 80: Communication Management

    • - for testing/troubleshooting with emulated A1 hardware Demo Mode - cannot be used for actual simulation or performance testing • - for wired USB connection with the vPad-A1 module USB (to A1 base) Base - follow instructions in ? •...

  • Page 81: Calibration: Spo2 R-Curves

    Individual R-Curves are derived through clinical studies and, while similar, may be different for each make and model encountered. vPad-A1 has pre- R-Curves programmed for a number of common monitor makes and models;...
  • Page 82 OPERATORS MANUAL • is not showing an adequate signal level of 50% to Signal Strength 70%, then: - Change sensor position on the simulated finger; or - Change (see below) Input Gain Adjust Input Gain (Optional) • should generally be set to “Auto” (automatic gain Input Gain adjustment).

  • Page 83: Calibration: Nibp Envelopes

    OPERATORS MANUAL Save R-Curve Data • button will save the entered R-Curve data to a new or existing device entry as identified by the , and (optional) fields on the menu. Manufacturer Model Sensor • button will discard all entered data without saving.
  • Page 84 OPERATORS MANUAL PML PMH Dia. Sys. P-Low P-Hi Each time a change is made to an inflection point, users must press button for Envelope the new parameters to take effect. A typical customization makes the following adjustments through experimentation, in no Envelope particular order.
  • Page 85 OPERATORS MANUAL Figure 105 buttons in change the selected point's pressure, and buttons change its amplitude. button displays the current maximum pulse height, which AMAP defines the largest simulated pulse that vPad-BP will produce during . If the device requires smaller pulses (e.g. the...

  • Page 86: Self Test: Nibp Pulse Generator

    OPERATORS MANUAL Figure 106 After saving or when the button in is pressed, the interface returns to the Figure 103 “Customize Envelope” screen in and users can continue working on the same Envelope Pressing the "Escape" button on that screen will dismiss the tool and return to NIBP simulation settings.

  • Page 87: Automation And Test Records

    OPERATORS MANUAL 5 Automation and Test Records This chapter explains how to use vPad-A1 to perform testing of multi-parameter patient monitors, pulse oximeters, and/or NIBP monitors, following a predefined sequence of steps referred to as an . The generation and management of...

  • Page 88: Sync Mode

    OPERATORS MANUAL 5.1.1 Sync Mode Whenever the A1 is used as a completely assembled system, it is possible to synchronize the signals from all three simulator modules by activating the control on the A1 screen. The feature Main Sync Mode ensures that all heart signals are triggered simultaneously and share a common .

  • Page 89: Reviewing Test Results

    OPERATORS MANUAL Some parameters that are recorded can not be changed, as they represent fixed values of the simulation. An example of a fixed parameter is . If it is necessary to record an Figure 109 ECG Artifact observation, for example the...

  • Page 90: Entering Equipment Information

    Description Manufacturer , and . With vPad-A1, it is possible Model Serial Number Location Facility to enter and save this information on the...
  • Page 91 OPERATORS MANUAL If the database contains no matching entry, then the lookup window will display a search failure message and the match list will be blank. To start a new search, simply enter new text into the box in the lookup...

  • Page 92: Creating Test Records

    Record Manager Tablet independently of the vPad-A1 app. may be used to copy, print, and/or delete Test Record files saved by vPad-A1. Record Manager can also be used to convert Test Records to Adobe PDF documents. Record Manager...

  • Page 93: Test Automation

    5.2 Test Automation 5.2.1 AutoSettings vPad-A1 is designed to work in both manual and automated mode. For any given type of simulation (e.g. ) there are a number of parameter values that define the simulated state (e.g. ECG Normal Sinus Rhythm , and ).

  • Page 94: Autosequences

    OPERATORS MANUAL When creating an , you have an opportunity to create an AutoSetting that will be visible to the user when on the screen. Press Instruction Results button to make the Instructions dialog visible. Touch inside Edit Instr.

  • Page 95: Running Autosequences

    Figure 123 Touching the selection box will display the list of available AutoSequences. By default, the vPad-A1 will have a number of sample AutoSequences pre-installed. Note that these are examples for illustrative purposes only and they can be freely revised, copied or deleted by the user. New...
  • Page 96 OPERATORS MANUAL When a valid has been selected, the AutoSequence button will launch the form. It allows users Equipment Information to enter details on the equipment being tested, as described in Entering Equipment Information section 5.1.2.3 - . To delay this...
  • Page 97 OPERATORS MANUAL interface displays all active parameter settings for so that users can view them Test Result Creating Test Results as reference to check the ’s performance. Refer to section 5.1.2.1 - further details on working with the interface.

  • Page 98: Creating And Editing Autosequences

    OPERATORS MANUAL 5.2.2.2 Creating and Editing AutoSequences After an has been selected from the list, its name will be displayed in the menu box AutoSequence and the button will be enabled (turned from gray to green). At this point this AutoSequence available for editing.
  • Page 99 OPERATORS MANUAL Starting at the top of the screen, the are organized by their corresponding A1 AutoSettings simulator modules. • Patient Simulation (vPad-PS) • SpO2 (vPad-O2) • NIBP (vPad-BP) • Tools (none) Each of these categories will contain the...
  • Page 100 OPERATORS MANUAL section of the presents tools for Action Controls Editor working with the active entry. AutoSequence Group AutoSetting Touching and holding a name bar will allow users to edit the Group name of the . The can be enlarged by...
  • Page 101 Editor Note that vPad-A1 can be further automated when used in conjunction with vPad-Check and the VPL procedure system. Refer to the vPad-Check manual (MN-084 vPad-Check Operators Manual, Chapter 4.2 for further details), in particular regarding the use of the statement.
  • Page 102 OPERATORS MANUAL Automation and Test Records/Chapter 5 # Page 88...

  • Page 103: Calibration And Maintenance

    Use of other cleaning agents on the touchscreen may result in scratching, discolouration, streaking or even failure. Electrical safety protection of the operator may be compromised if the instructions in this manual are not followed, or if vPad-A1 is used for a purpose not specified in this manual.
  • Page 104 OPERATORS MANUAL Maintenance/Chapter 6 # Page 90...

  • Page 105: Sample Test Record

    OPERATORS MANUAL APPENDIX A. Sample Test Record This appendix provides an example of a vPad-A1 Test Record, illustrating the Result representation for test setup and user entered numerical data, as well as additional comments. Note The sample Test Record was generated in .
  • Page 106 OPERATORS MANUAL vPad-A1 Simulator Datrend Systems Inc. File: P24601_20160926_125522_P.txt Date: 2016 Sep 26 Time: 12:55:22 vPad ID: vPad-A1: VBU-DEMO-BU,2016-09-26 VSM-DEMO-PS,2016-09-26 VSP-DEMO-O2,2016-09-26 VBP-DEMO-BP,2016-09-26 Equipment Information... Control Number: P24601 Description: PATIENT MONITOR Manufacturer: MED CORP Model: S9001 Serial Number: 30624700 Location:...
