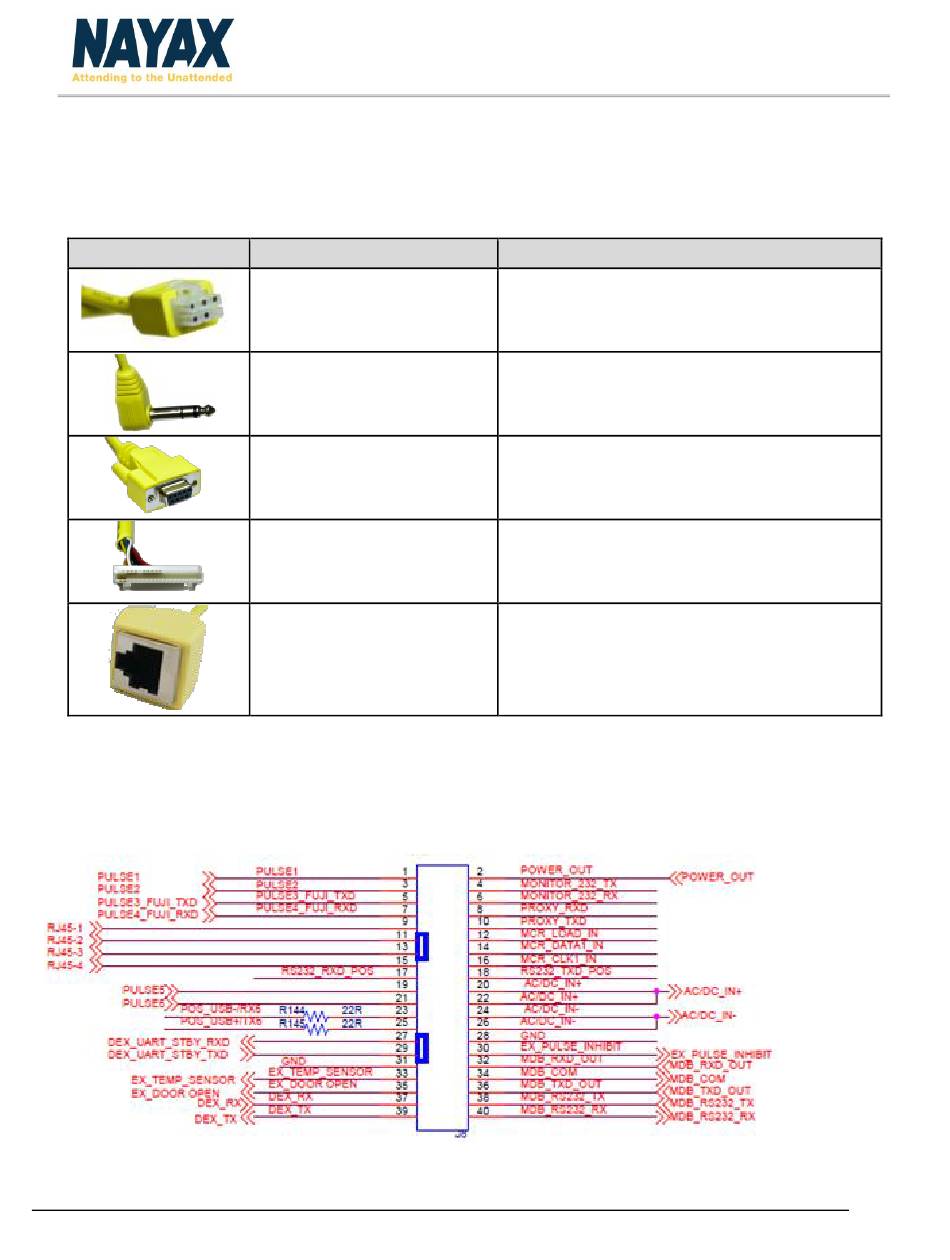

Device Cables

Nayax provides different configuration cables to suit different machines. The below table refers to
each cable and its configuration.
Image Connector Connect to
MDB
MDB at vending machines
DEX
DEX
RS232 DB9 Female Output Serial
Device 40-pin Onyx
Nayax
LAN
LAN cable

Device Connector Scheme (40-Pin)
